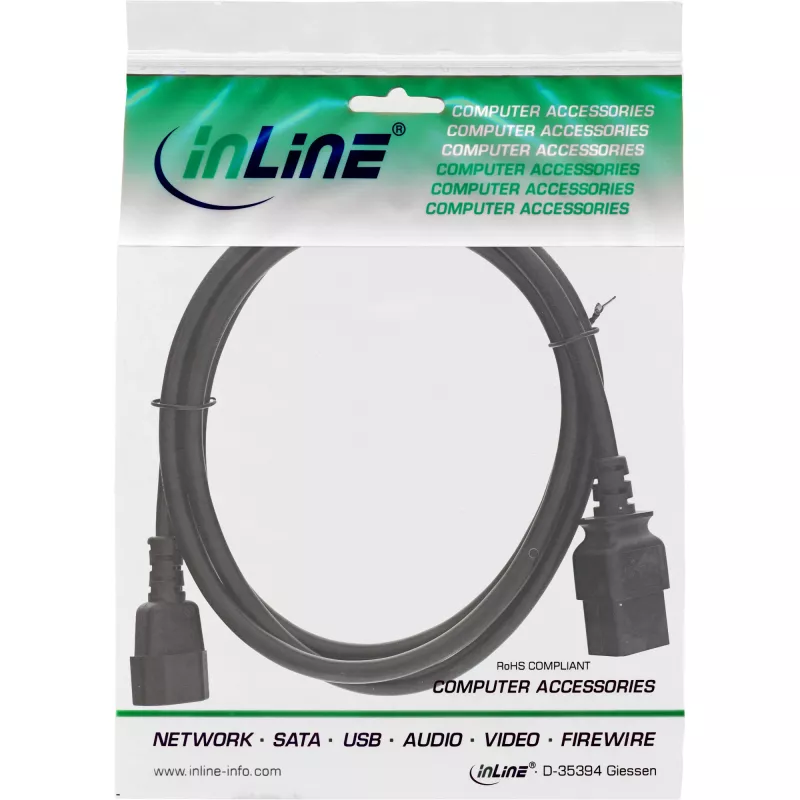

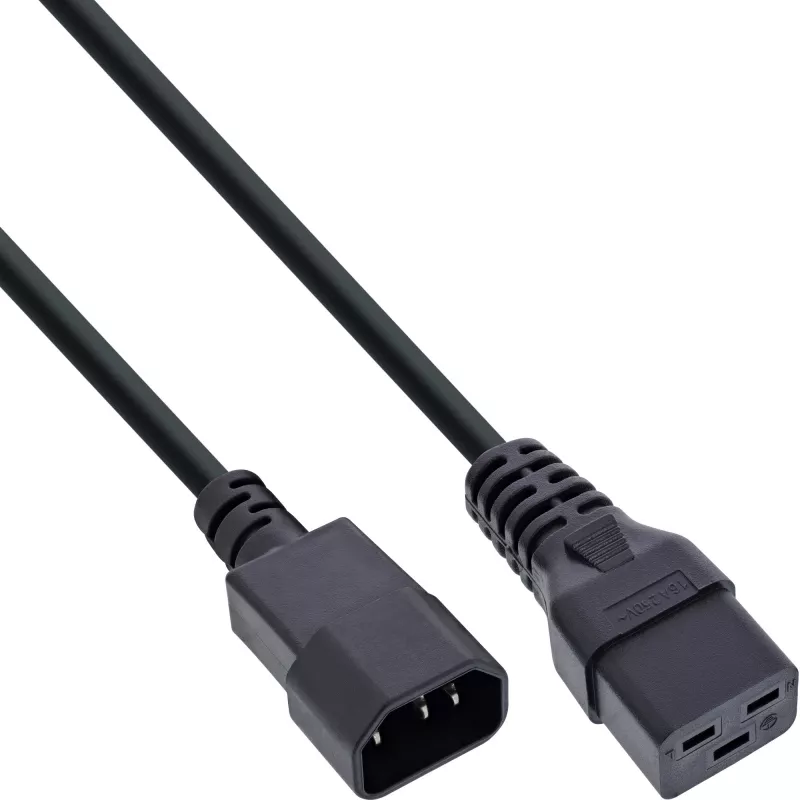

Cavo adattatore di alimentazione InLine, IEC-60320 C14 a C19, 3x1,5mm², max. 10A, 1m

This InLine Power adapter cable IEC-60320 C14 to C19 3x1.5mm² max 10A 1m is a single-meter mains extension designed to connect equipment with different IEC inlet/outlet types. It has an IEC-60320 C14 coupler at one end and a C19 coupler at the other, with three conductors of 1.5 mm² cross-section and a rated maximum current of 10 A. The black cable provides a compact, straightforward solution for linking power supplies, PDUs or equipment in server rooms, industrial cabinets and other technical installations.

Advantages

The cable combines a C14 and a C19 coupler in a short, flexible 1 m length, reducing cable clutter while maintaining compatibility between devices with different IEC connectors. The 3x1.5 mm² conductor size supports stable current flow up to the specified 10 A rating. Durable insulation and a molded coupler design provide reliable physical connection and long-term service in professional environments.

Suitable for

• Connecting PDUs to devices with C14 or C19 inlets
• Powering servers, switches and network appliances in racks
• Temporary or permanent power links in industrial control cabinets
• Equipment setups where space is limited and a short cable is required

Key specifications

• Cable length: 1 m
• Connector 1: IEC-60320 C14 coupler
• Connector 2: IEC-60320 C19 coupler
• Conductor configuration: 3 conductors × 1.5 mm²
• Maximum current rating: 10 A
• Colour: Black

How to use

Before connecting, ensure both devices and power sources are switched off and rated for the cable's maximum current. Insert the C14 coupler into the corresponding C14 inlet and the C19 coupler into the C19 inlet until both connectors seat securely. Route the cable to avoid sharp bends, pinch points and sources of heat. After connections are secure, power on the devices and verify stable operation under load within the 10 A rating.

Recommendations

Use this cable only within its rated current and temperature limits. For higher-current applications or longer cable runs, select a cable with larger conductor cross-section and appropriate connector types. Regularly inspect connectors and insulation for wear or damage and replace the cable if any defects are found.
