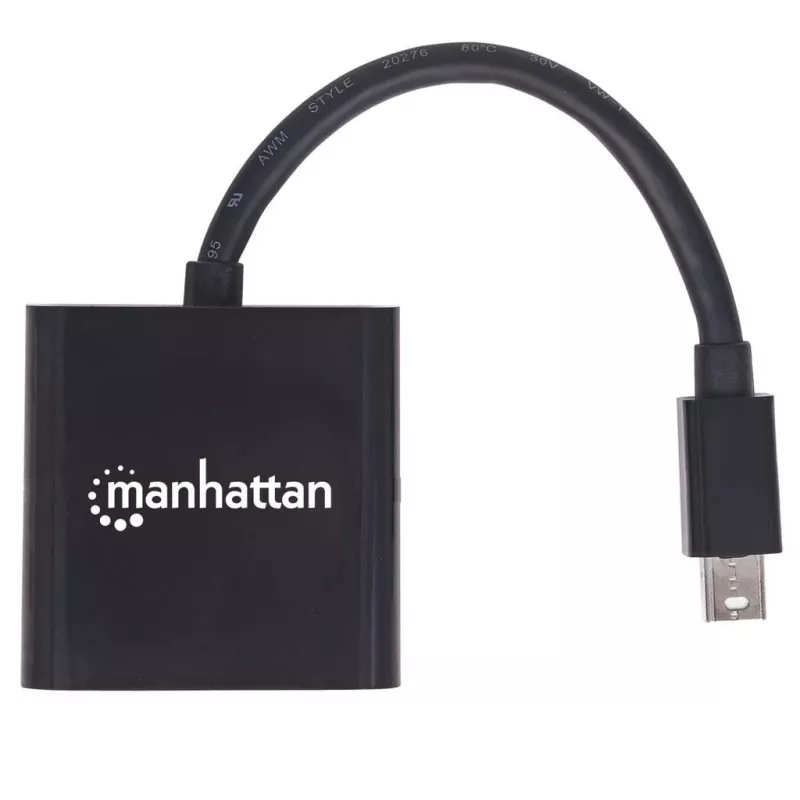

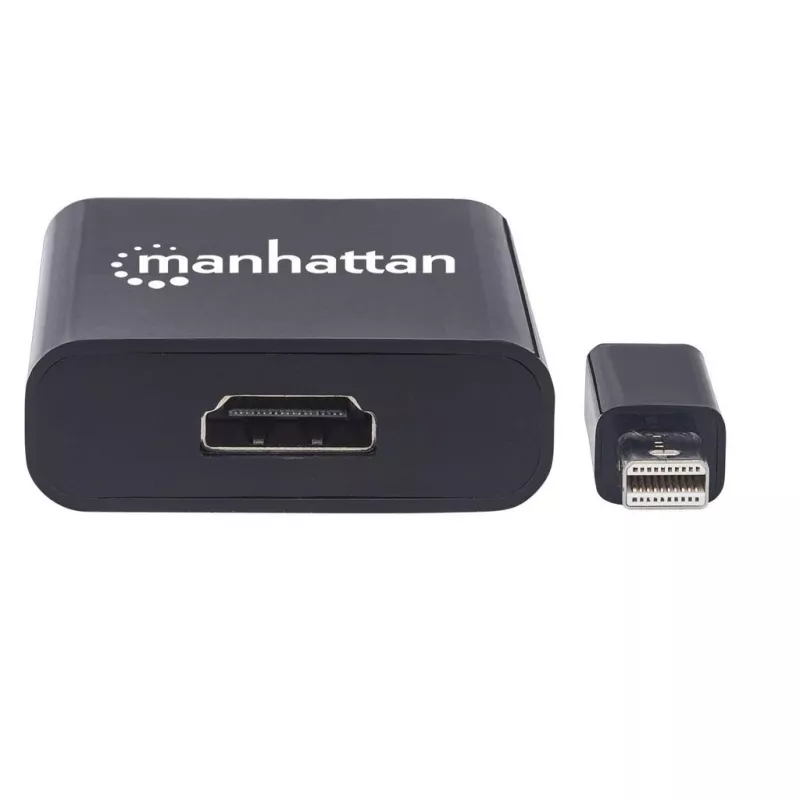

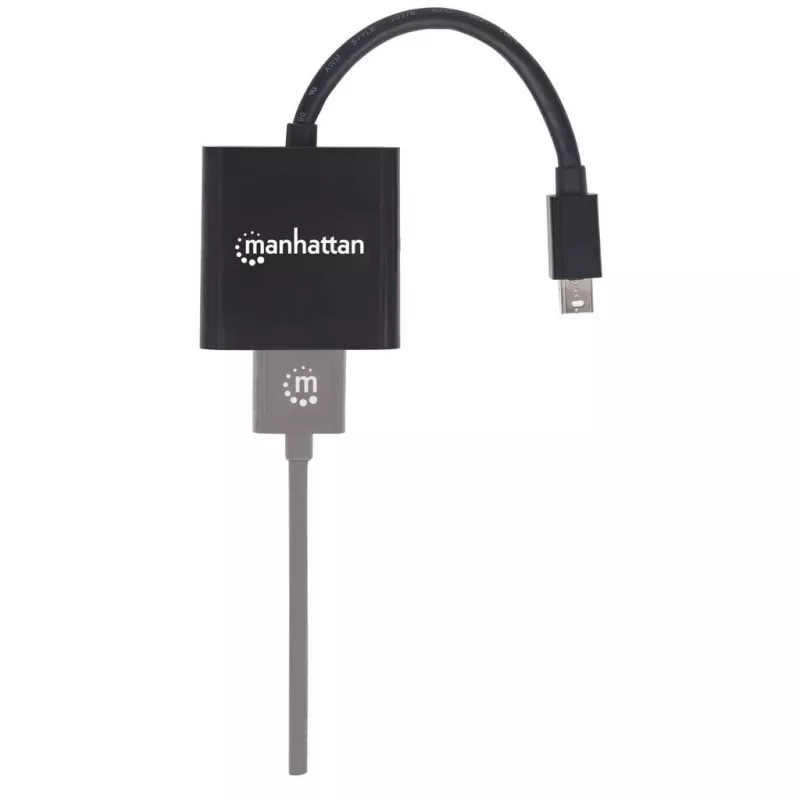

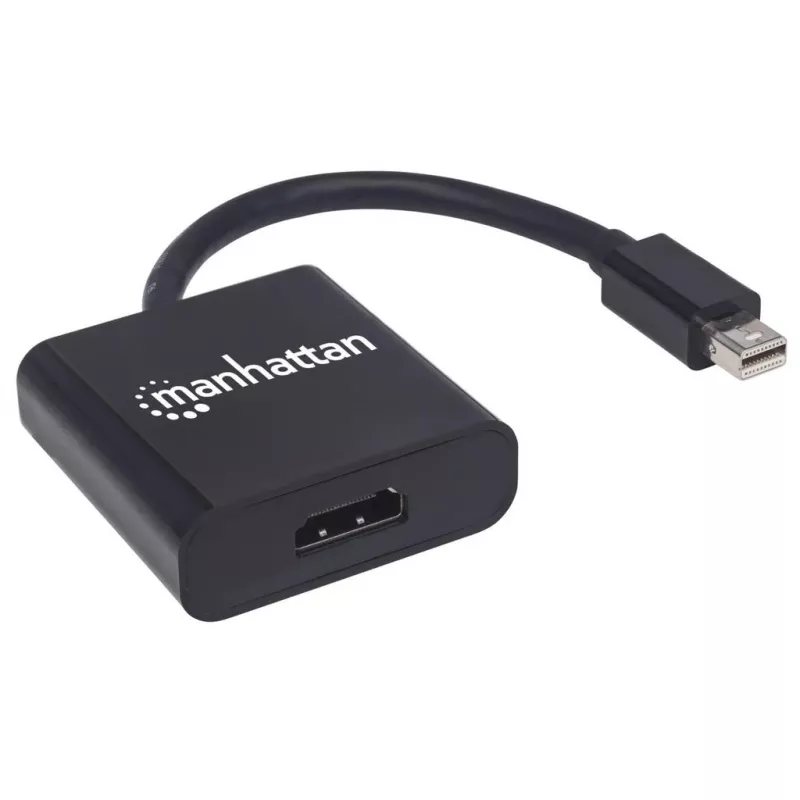

Cavo adattatore Mini DisplayPort 1.2a a HDMI, Manhattan, 152570

Connect a Mini DisplayPort-equipped source to an HDMI display quickly and reliably. The Manhattan Active Mini DisplayPort 1.2a to HDMI Adapter Cable (model 152570) is an active converter that enables single-mode Mini DisplayPort outputs to drive HDMI displays. It supports UHD video at up to 4K@60Hz and is built with nickel-plated contacts, full shielding, a durable PVC jacket and moulded boots with strain relief to maintain stable signal transmission for home, office and professional multimedia setups. The compact 19.5 cm cable features a male Mini DisplayPort and a female HDMI Type A connector, weighs 30 g and is certified by FCC, CE and UL; it is RoHS compliant and supplied in a polybag with a three-year warranty.

Advantages

The active adapter converts Mini DisplayPort signals to HDMI even when the source lacks DP++ support, ensuring compatibility with a wide range of graphics outputs. Support for 4K@60Hz provides smooth high-resolution video, while nickel-plated contacts and full shielding reduce interference and signal loss. The short, lightweight design and robust mechanical protection (PVC jacket and strain relief) offer portability and reliable connections in multi-screen gaming, digital signage and desktop multimedia applications.

Suitable for

• Connecting laptops or PCs with Mini DisplayPort to HDTVs or monitors
• Multi-screen gaming and streaming setups
• Retail digital signage and financial market displays
• Office presentations and home multimedia systems

Key specifications

• Model: Manhattan 152570
• Standard: Mini DisplayPort 1.2a to HDMI (active)
• Maximum resolution: 4K@60Hz (UHD)
• Connector 1: Male Mini DisplayPort
• Connector 2: Female HDMI Type A
• Cable length: 19.5 cm
• Colour: Black
• Weight: 0.03 kg
• Certifications: FCC, CE, UL; RoHS compliant
• Packaging: Polybag; Warranty: 3 years

How to use

Insert the male Mini DisplayPort plug into the source device’s Mini DisplayPort output. Connect an HDMI cable to the adapter’s female HDMI Type A port, then attach the HDMI cable to the display or TV. Ensure both source and display are powered on and set the display to the correct HDMI input. The active adapter handles signal conversion automatically; no driver installation is required.

Recommendations

For best results use a high-quality HDMI cable rated for 4K@60Hz and avoid excessive bending near the molded boots. If the display does not show a signal, verify the source supports video output from its Mini DisplayPort and check input selection on the display device.
