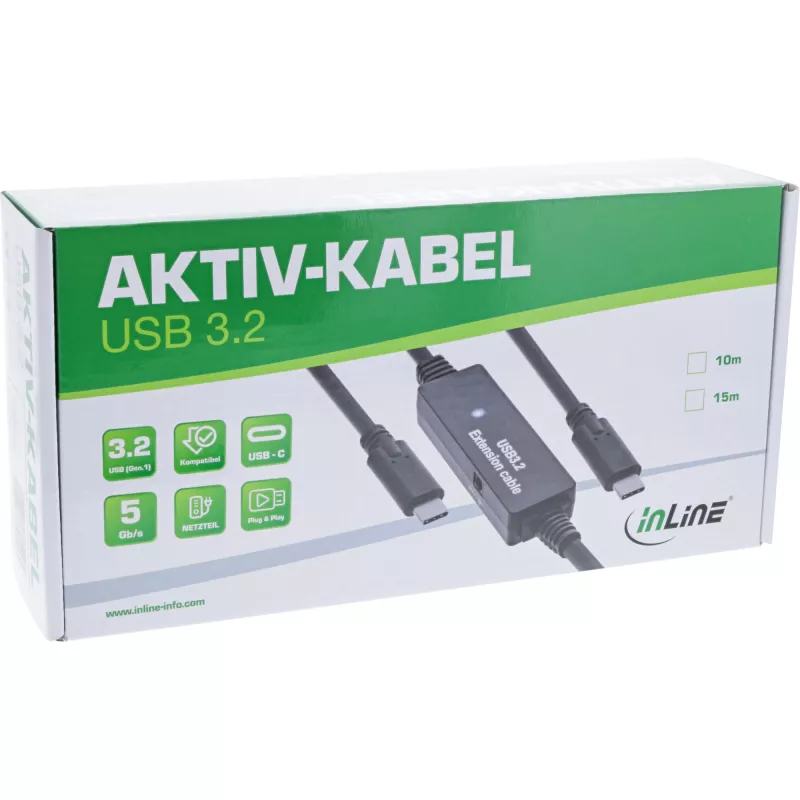

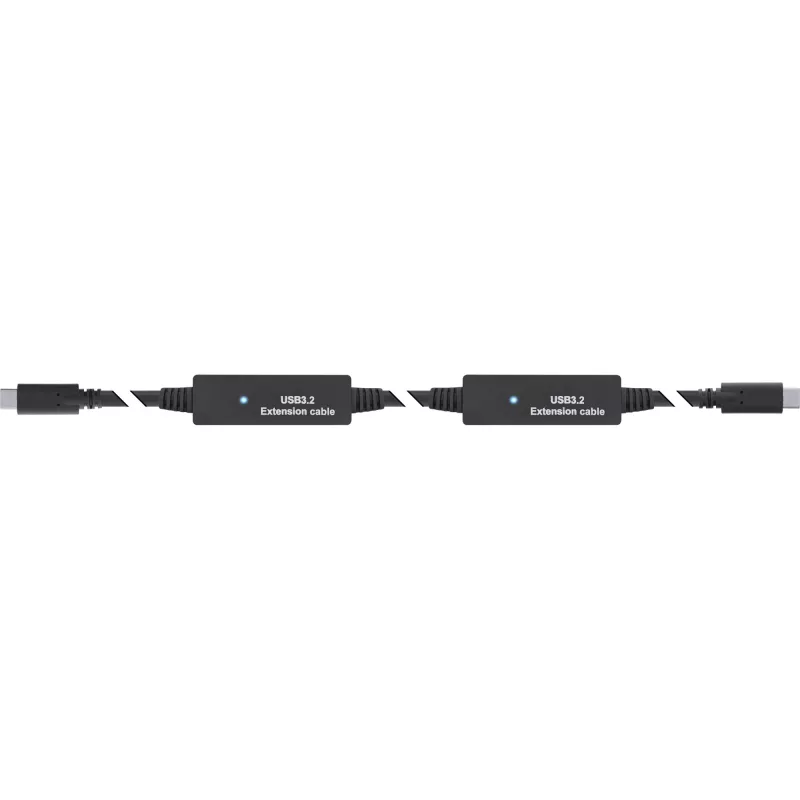

Cavo attivo USB 3.2 Gen.1 InLine, connettore maschio USB-C su connettore maschio USB-C, 15m

Stable data transfer over long distances:Integrated signal amplification ensures reliable USB 3.2 Gen.1 connections with up to 5 Gbps, even with cable lengths of up to 15 m.
High compatibility:Supports USB-C devices from a wide range of manufacturers, including docking stations, monitors, storage solutions, and peripherals.
Active electronics for consistent signal quality: Integrated repeater technology automatically compensates for signal loss and ensures consistently high transmission quality.
Flexible application options:Ideal for professional applications in IT, industry, or conference environments, plug & play without additional drivers.
Optional power supply:Variants with power supply provide additional stability for particularly long cable lengths or power-hungry USB-C devices.

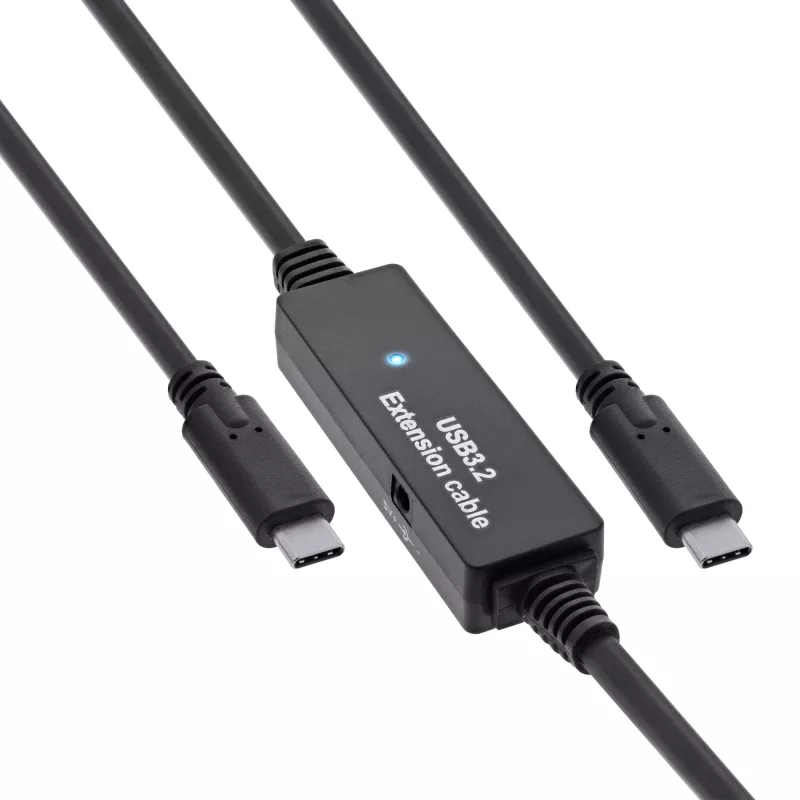

The InLine® USB 3.2 Gen.1 active cable with USB-C connectors on both ends was developed for professional use to reliably transfer data over longer distances. Thanks to the integrated electronics, the signal is actively amplified so that consistently high data quality is achieved even with cable lengths of up to 15 meters.
The cable supports a data transfer rate of up to 5 Gb/s, making it ideal for applications that require a stable and fast connection between two USB-C devices, such as docking stations, monitors, external hard drives, measuring devices, or audio/video components.
Thanks to the USB 3.2 Gen.1 standard, the cable remains backward compatible with older USB versions and offers maximum flexibility in use. Variants with an included power supply also enable the supply of energy-intensive devices and ensure constant performance even with high data loads.
The robust plastic housing and high-quality workmanship ensure a long service life.

Connectors:USB-C plug to USB-C plug
Standard:USB 3.2 Gen.1 (up to 5 Gb/s)
Signal processing:Integrated signal amplification (active)
Convenience:Hot-swap, plug & play compatible
Color:Black
Housing material:Plastic
Operating systems:Supports Windows 7 and above and macOS 10 and above
Note:Not cascaded (cannot be extended with additional active cables)

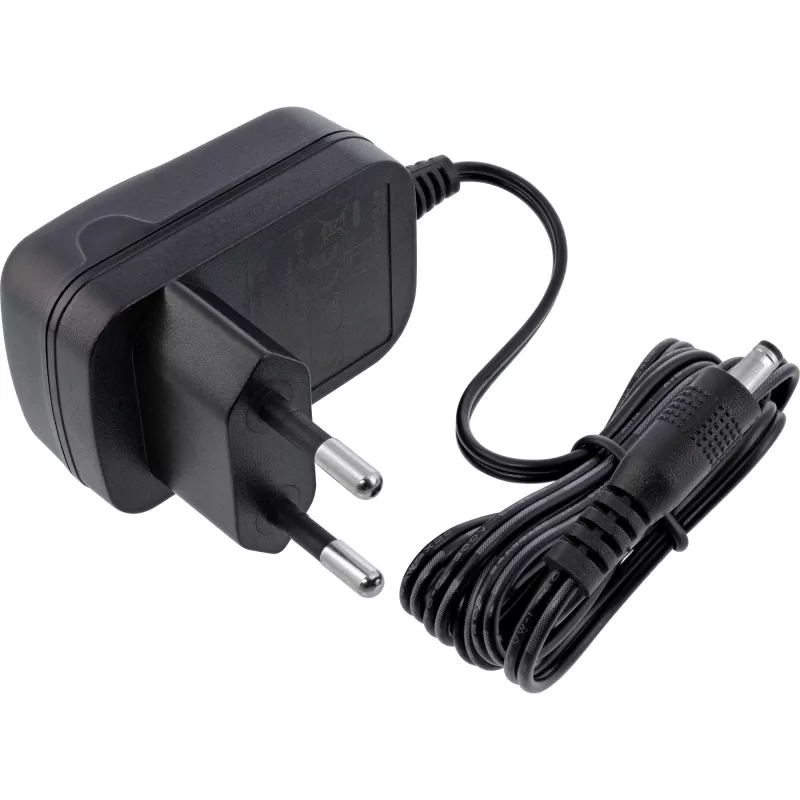

10 m and 15 m versions:Includes plug-in power supply for additional signal stability
Power supply:AC 100-240 V, 50-60 Hz, DC 5.0 V / 1.0 A (max. 5.0 W)

InLine USB 3.2 Gen.1 active cable, USB-C male to USB-C male, 15m. Cable length: 15 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Product colour: Black

How to use

Connect the USB-C male connector on one end to the host device (PC, laptop or hub) and connect the other USB-C male connector to the target device (external drive, printer, webcam, etc.). For cable lengths of 10 m or longer, connect the included external plug-in power supply to a mains outlet and the cable’s power input to ensure stable operation. The cable supports hot-plugging, so devices can be connected or disconnected while systems are running.

Recommendations

Use the supplied external power supply for runs of 10 m or longer and avoid connecting multiple active extensions in series, as this product is not designed for cascading. Keep the cable free from sharp bends and avoid placing heavy objects on it to maintain signal integrity.
