Cavo coassiale DELOCK 90697 — 1 m, HSD Z su RJ-45, nero/blu

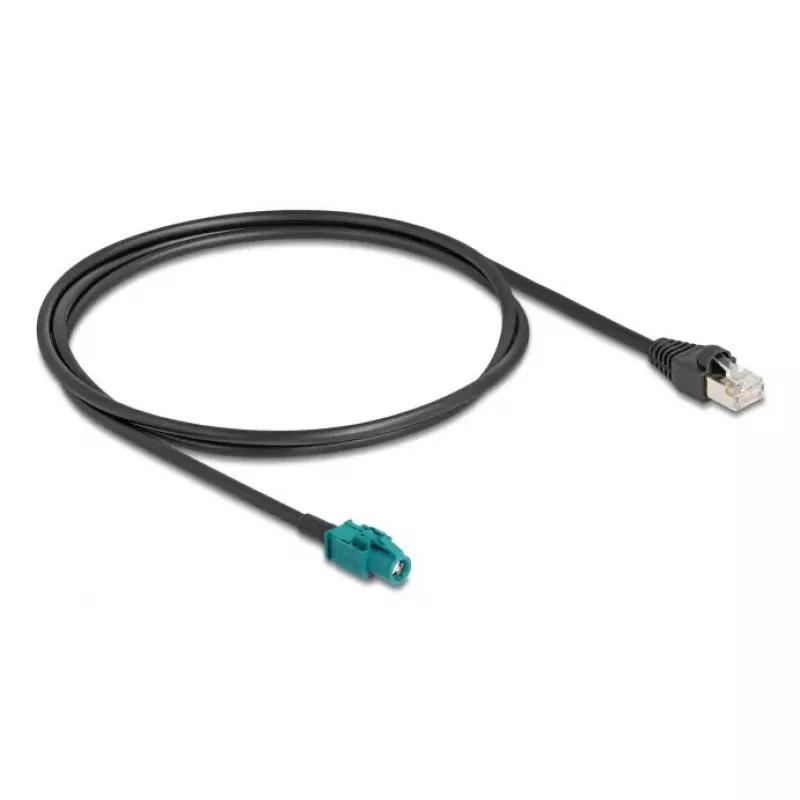

DELOCK 90697 is a 1 m coaxial cable designed to connect electronic components and devices in vehicles and equipment. One end features an HSD Z female straight connector and the other end an RJ-45 male straight plug. The cable is delivered as a single unit in a polybag and is available in black with blue accents. It has an impedance of 100 Ω and is intended for applications that require an HSD Z to RJ-45 interface.

Advantages

The cable provides a direct, single-cable connection between an HSD Z female interface and an RJ-45 male socket, reducing the need for additional adapters. Its 1 m length offers flexibility for in-vehicle installations or short equipment interconnections, while the 100 Ω impedance ensures compatibility with matched high-speed signal chains.

Suitable for

When it may not be suitable

This cable is not suitable if your devices require different connector types or lengths other than 1 m. It should not be used where impedance other than 100 Ω is required or for high-voltage power transmission.

Key specifications

How to use

Connect the HSD Z female end to the corresponding HSD Z port on the module or device, and insert the RJ-45 male plug into the RJ-45 socket of the target device. Ensure connectors are fully seated and secure to maintain reliable signal transmission. Route the cable to avoid sharp bends and mechanical stress during vehicle operation.

What to consider before purchase

Recommendations

For reliable performance, avoid excessive bending near the connector ends, keep the cable away from high-voltage lines and strong EMI sources, and secure the cable inside the vehicle to prevent movement and wear.
