Cavo coassiale Kathrein LCD 111 A+ 100m bianco

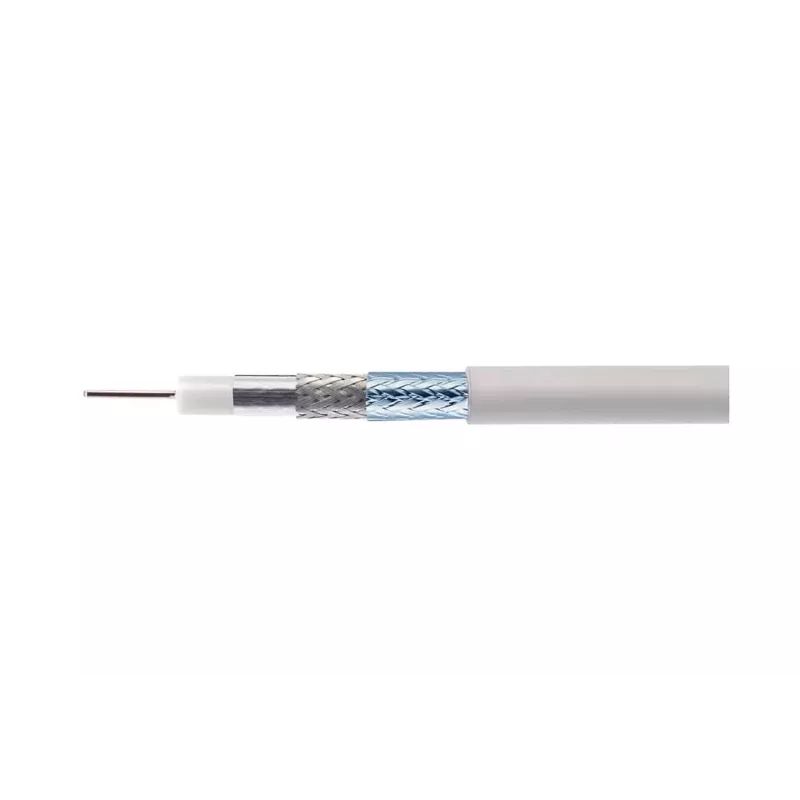

The Kathrein LCD 111 A+ 100m in white is a 75 Ω coaxial cable designed for reliable audio and video signal transmission. This 100-metre reel uses a gas-injection foamed special PE compound for insulation, includes metre markings, and is free of lead and silicone. The cable complies with EN 50117 and meets screening class A+, with approval from KDG/Vodafone Kabel Deutschland and dibkom-certified material. A thin applied film simplifies plug assembly.

Advantages

The cable provides consistent 75 Ω impedance for minimal signal loss and stable performance. Gas-injection foamed PE insulation reduces weight while maintaining electrical properties. Metre markings on the sheath simplify measuring and installation. Compliance with EN 50117 and screening class A+ ensures professional screening performance; approvals from KDG/Vodafone and dibkom certification confirm suitability for operator-grade installations. The absence of lead and silicone makes the cable compliant with stricter material requirements.

Suitable for

Key specifications

How to use

Measure and cut the required length using the metre markings on the sheath. Strip the outer jacket and prepare the centre conductor and dielectric according to the connector manufacturer's instructions. The applied film eases preparation for plug assembly; follow standard coax connector installation steps and torque recommendations to ensure proper contact and screening. Route the cable without sharp bends and secure it with suitable clips to avoid mechanical stress.

Recommendations

For best long-term performance, avoid direct prolonged exposure to sunlight and extreme weather when used outdoors; use appropriate conduit or UV-protective routing in exposed areas. Verify connector compatibility with 75 Ω systems and perform signal tests after installation.
