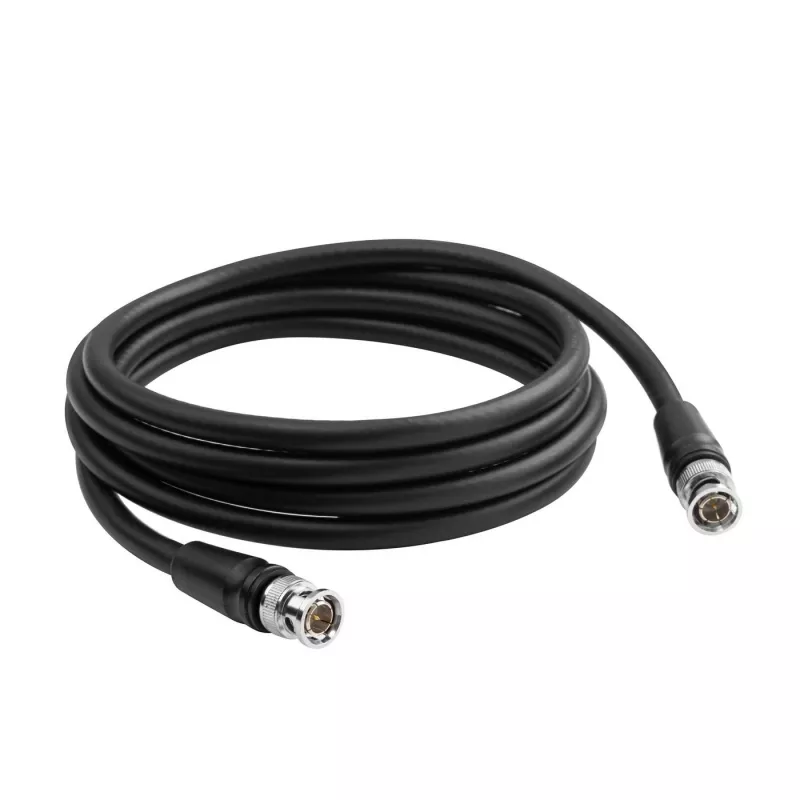

Cavo coassiale Microconnect BNC-HDSDI-15M BNC RG-6 15 m nero

The MicroConnect BNC-HDSDI-15M is a 15 m RG-6 coaxial cable with BNC connectors at both ends, designed for professional SDI video transmission. It supports 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI signals and is suitable for 4K at 60 Hz (up to 4096 x 2160) as well as Full HD 1080p. The cable has a characteristic impedance of 75 ohm and is supplied in black. The product is made in Denmark and comes with a 25-year warranty; it complies with CE, REACH and RoHS standards.

Advantages

This RG-6 BNC coaxial cable provides stable signal integrity for high-bandwidth SDI formats including 12G-SDI, allowing transmission of 4K60 signals. With BNC-to-BNC connectors and a 15 m length it offers a practical balance between reach and portability. The cable is lightweight (0.4 kg) yet built for professional use, and the manufacturer warranty and regulatory compliances add assurance for long-term installations.

Suitable for

• Professional video studios and broadcast setups
• Live event production and OB vans
• Post-production and editing suites requiring SDI connectivity
• AV installations and signal distribution for 4K/HD sources

Key specifications

• Cable type: RG-6
• Length: 15 m

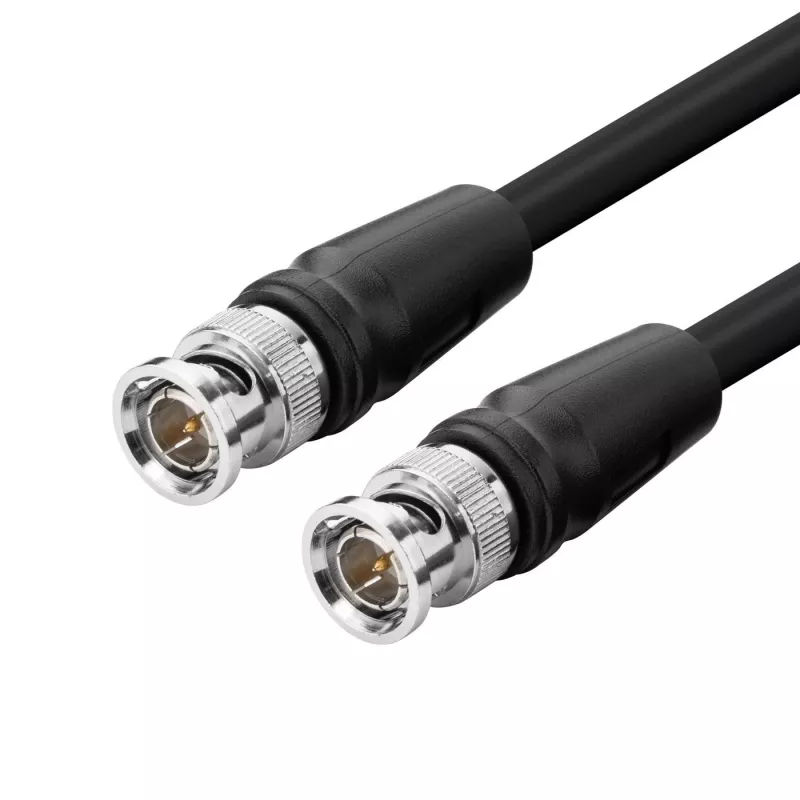

• Connectors: BNC (both ends)
• Supported formats: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI
• Max resolution: up to 4096 x 2160 at 60 Hz; Full HD 1080p
• Impedance: 75 ohm
• Weight: 0.4 kg
• Colour: Black
• Warranty: 25 years
• Certifications: CE, REACH, RoHS
• Manufacturer origin: Denmark

How to use

Connect the BNC connectors to the SDI output of your camera or signal source and to the SDI input of your monitor, switcher or recorder. Ensure the BNC connectors are fully seated and correctly aligned to prevent signal loss. For best results route the cable away from strong electromagnetic sources and avoid sharp bends; maintain the minimum bend radius recommended for RG-6 coaxial cable to preserve signal quality.

Recommendations

Use this cable for short- to medium-length SDI runs up to 15 m where high-bandwidth 12G-SDI or 4K60 transmission is required. For longer runs consider active repeaters or fiber conversion to avoid signal degradation over greater distances.
