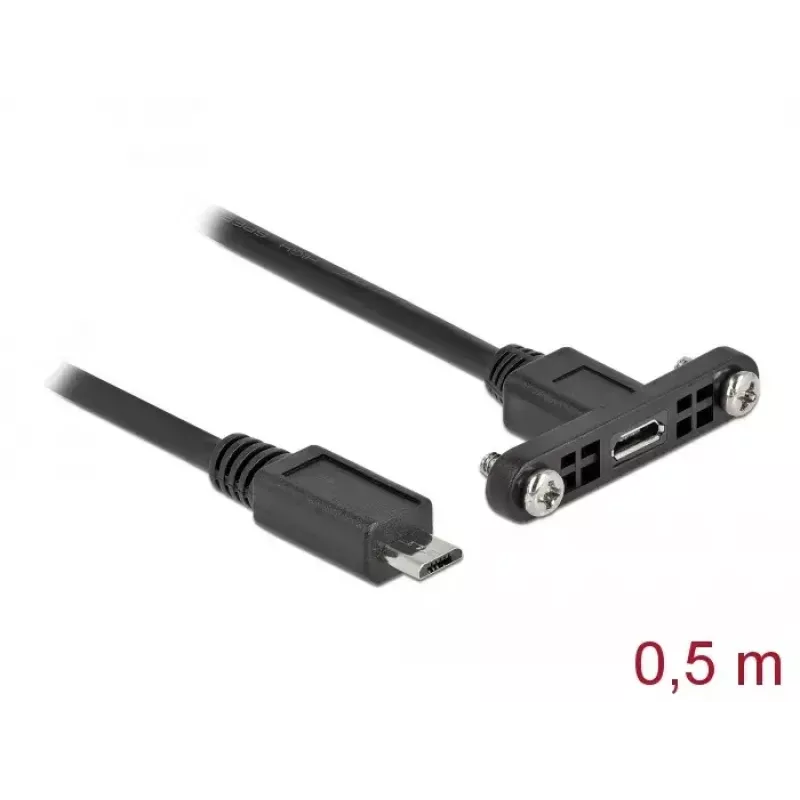

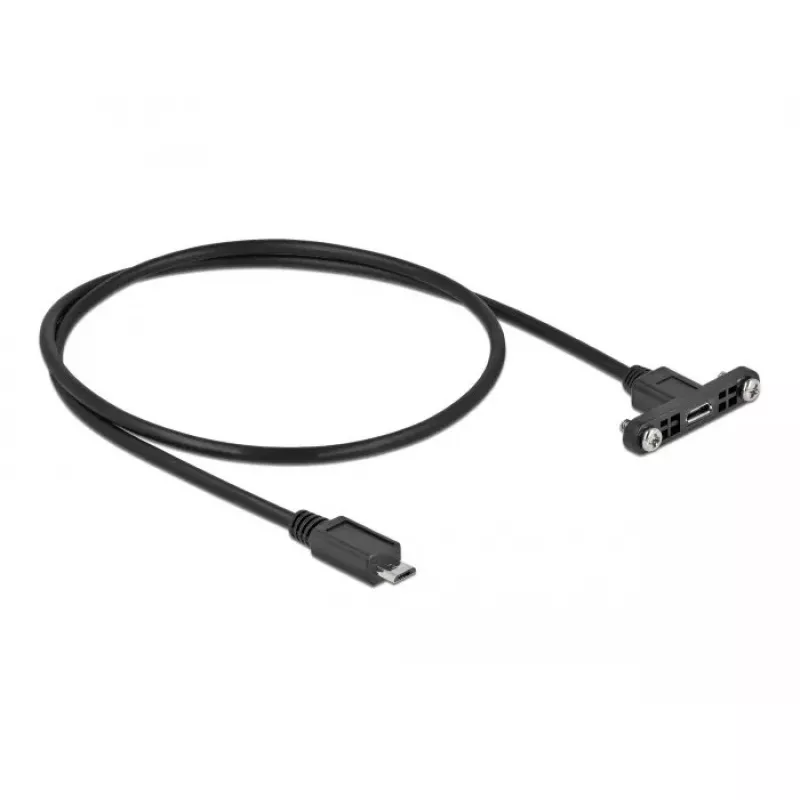

Cavo DeLOCK USB 2.0 Micro-B femmina per montaggio a pannello a USB 2.0 Micro-B maschio 0,5 m

This DeLOCK cable extends a USB 2.0 connection and allows mounting a Micro-USB B female connector to a panel, bracket or enclosure. It comes with a Micro-USB B male plug on the other end and a 0.5 m black cable, providing a compact panel-mount solution for accessible USB connections with a maximum data transfer rate of 0.48 Gbit/s.

Advantages

The cable supports USB 2.0 data rates up to 0.48 Gbit/s and uses Micro-USB B connectors on both ends. The female panel-mount connector can be secured with two screws to a slot bracket, cable duct or an enclosure opening, enabling fixed, accessible positioning. The 0.5 m length offers a balance between reach and tidy installation, and the black jacket provides a discreet appearance.

Suitable for

• Extending or routing USB 2.0 Micro-B connections to a panel
• Mounting a Micro-USB B female connector in enclosures, slot brackets or cable ducts
• Connecting mobile devices, peripherals or embedded devices using Micro-USB B

Key specifications

• Connector 1: Micro-USB B (female, panel-mount)
• Connector 2: Micro-USB B (male)
• USB version: USB 2.0 (up to 0.48 Gbit/s)
• Cable length: 0.5 m
• Colour: Black
• Manufacturer: DELOCK, MPN: 35108, EAN: 4043619351084

How to use

Insert the Micro-USB B male plug into the host or device Micro-USB B port. Place the female panel-mount connector into the prepared opening of the slot bracket, cable duct or enclosure and secure it with two screws through the mounting holes. Ensure the connector is aligned correctly so the cable routes cleanly and the connection is stable.

Recommendations

Use this cable for USB 2.0 data and typical Micro-USB B peripheral connections; avoid strain or sharp bends at the connector ends and secure the panel-mount connector with appropriate screws to prevent movement.
