Cavo di alimentazione ACT spina CEE 7/7 (angolare) - C15 IEC Lock+ nero 1 m, EL603S

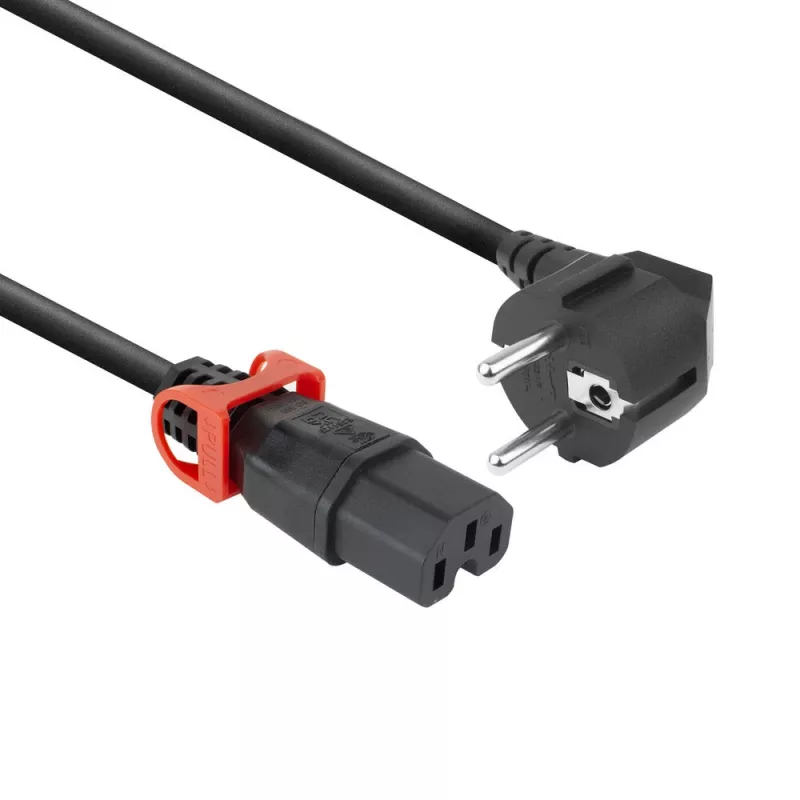

ACT IEC Lock power cable with an angled CEE 7/7 (Schuko) plug on one end and an IEC C15 Lock+ locking connector on the other. The cord is 1 m long and rated for 10 A at 250 V, with the C15 connector designed for high-temperature operation up to 120°C. The Lock+ mechanism secures the connection to equipment and PDUs without requiring a dedicated inlet lock or extra tools.

Advantages

The cable provides a compact angled mains plug and a locking IEC C15 connection to reduce the risk of accidental disconnection. High-temperature resistance of the C15 connector makes it suitable for devices with elevated inlet temperatures. The universal locking mechanism works without modifications to the device and helps minimize downtime and potential damage from unexpected power loss.

Suitable for

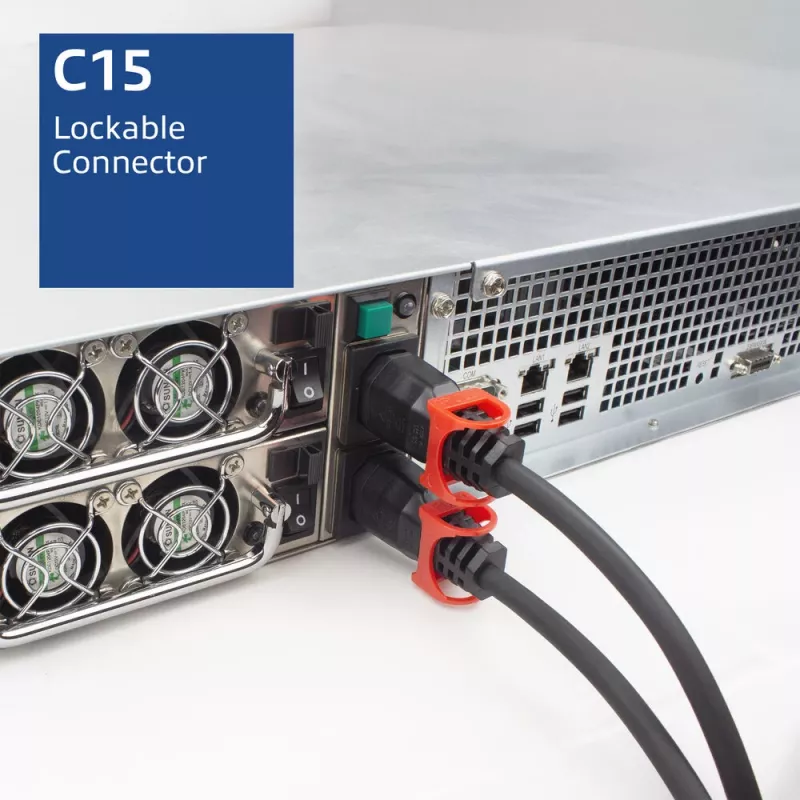

• Servers and rack equipment with IEC C15 inlets
• PDUs and UPS systems in data centers
• Professional kitchen or industrial appliances that require C15-rated connectors
• Any installation where accidental cable release must be prevented

When it may not be suitable

This cable is intended for use with appliances that accept an IEC C15 inlet and a mains supply up to 10 A / 250 V. It is not suitable for equipment requiring higher current capacity, different inlet types (for example IEC C13 or C19), or systems that demand certified cold-start or specialty power cords beyond the stated specifications.

Key specifications

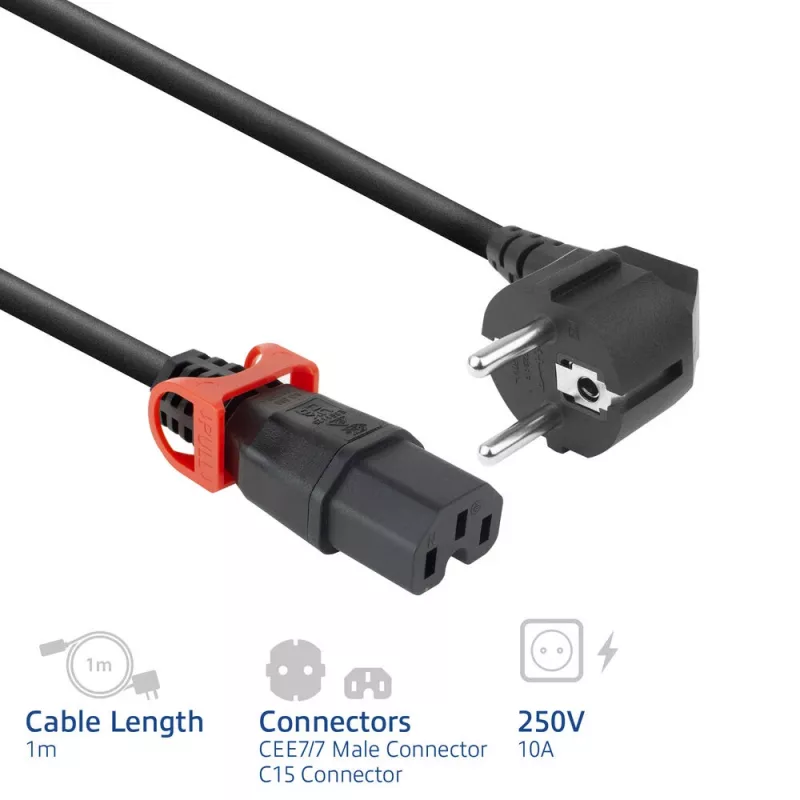

• Cable length: 1 m
• Rated current and voltage: 10 A / 250 V~
• Plug connectors: angled CEE 7/7 (Schuko) male to IEC C15 Lock+ female

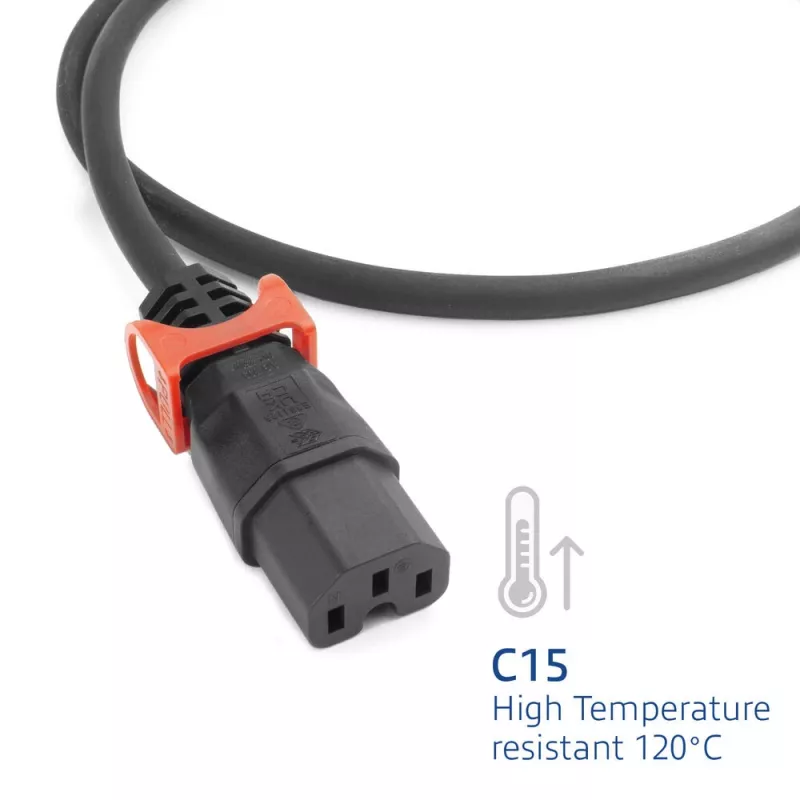

• Connector temperature rating: C15 up to 120°C
• Conductor cross-section: 1.0 mm²
• Color: black

How to use

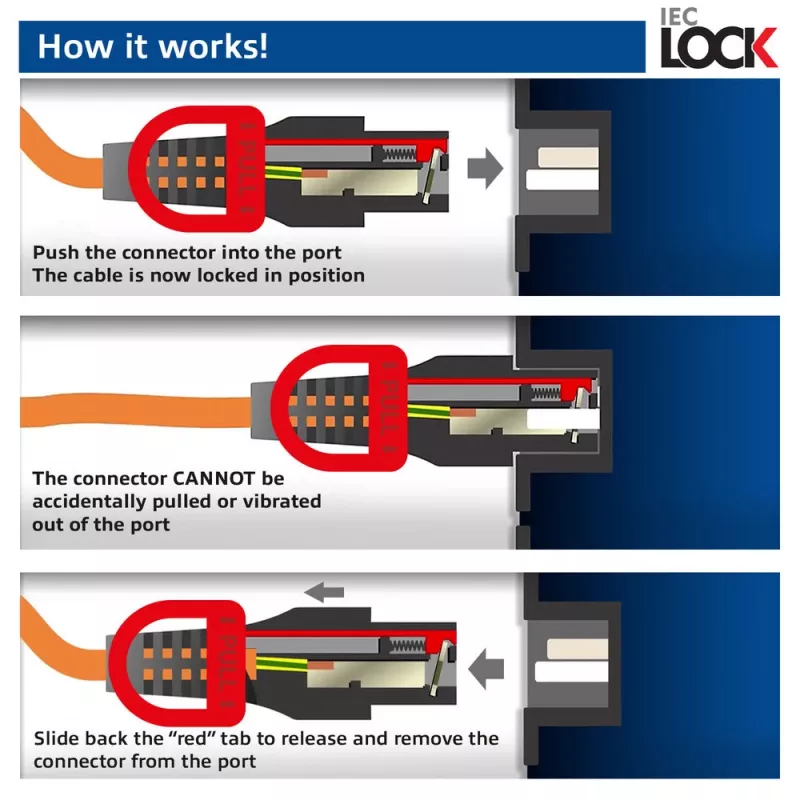

Insert the angled CEE 7/7 plug into a compatible mains socket and push the IEC C15 Lock+ connector into the device inlet until the locking mechanism engages. No additional tools or device-side locking hardware are required. To remove the cable, release the Lock+ mechanism according to the connector's release action and pull the connector straight out.

What to consider before purchase

• Ensure the target device uses an IEC C15 inlet (not C13 or C19).
• Verify the required current rating does not exceed 10 A.
• Confirm 1 m length is sufficient for your installation and rack layout.

Recommendations

Use this ACT power cord for secured connections in servers, PDUs and other professional equipment where accidental disconnection could cause service interruption. Avoid routing the cable where mechanical strain may compromise the connector; check that the device inlet is free of obstructions before locking the connector.
