Cavo di alimentazione Bachmann 130.081 trasparente 3 m

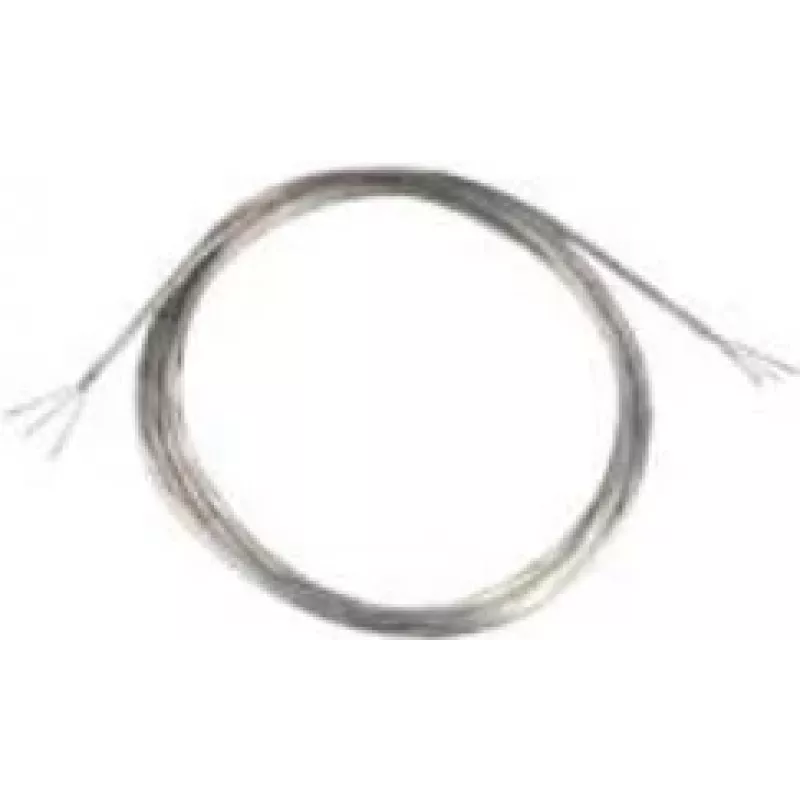

Power Cable Bachmann 130.081 Transparent 3 m is a 3‑metre mains lead with transparent outer sheath that allows visual inspection of the internal conductors. The cable contains phase, neutral and earth conductors; conductors are FEP insulated with a maximum temperature rating of 180 °C and the outer PVC sheath is rated to 105 °C. Rated voltage is 450/750 V. Each end is stripped 40 mm and fitted with crimp end sleeves for secure connection.

Advantages

The transparent PVC sheath provides visibility of the internal wiring for easier inspection and troubleshooting. FEP insulation on the conductors offers high temperature resistance and chemical stability. Pre‑stripped 40 mm ends with end sleeves save preparation time and ensure reliable terminations. The 3 m length offers flexibility for typical home and office setups while the 450/750 V rating suits standard mains applications.

Suitable for

• Connecting appliances and equipment to mains supply in home and office environments
• Installations where visual inspection of conductors is beneficial
• Temporary or fixed power connections requiring pre‑prepared ends

Key specifications

• Brand: Bachmann
• Model / MPN: 130.081
• Length: 3 m
• Conductor insulation: FEP, T 180 °C
• Sheath: PVC, T 105 °C, transparent
• Rated voltage: 450 / 750 V
• Earth conductor: green/yellow
• Ends: both ends stripped 40 mm and fitted with end sleeves
• EAN: 4016514014316

How to use

Verify the power is switched off before making any connections. Use the pre‑stripped ends with end sleeves to attach the cable to terminal blocks, appliance leads or screw terminals according to the device wiring diagram and local electrical regulations. Ensure the earth (green/yellow) conductor is connected to the protective earth terminal. After connection, secure the cable to prevent strain on the terminations and check continuity and insulation where required.

Recommendations

Use this cable only within its temperature and voltage ratings (T 105 °C sheath, T 180 °C conductor, 450/750 V). Do not use the cable in permanently buried or continuously wet locations unless additional protection is provided. Follow local electrical codes and, if unsure, consult a qualified electrician for installation.
