Cavo di alimentazione Bachmann 352.174 nero 2 m connettore femmina C19

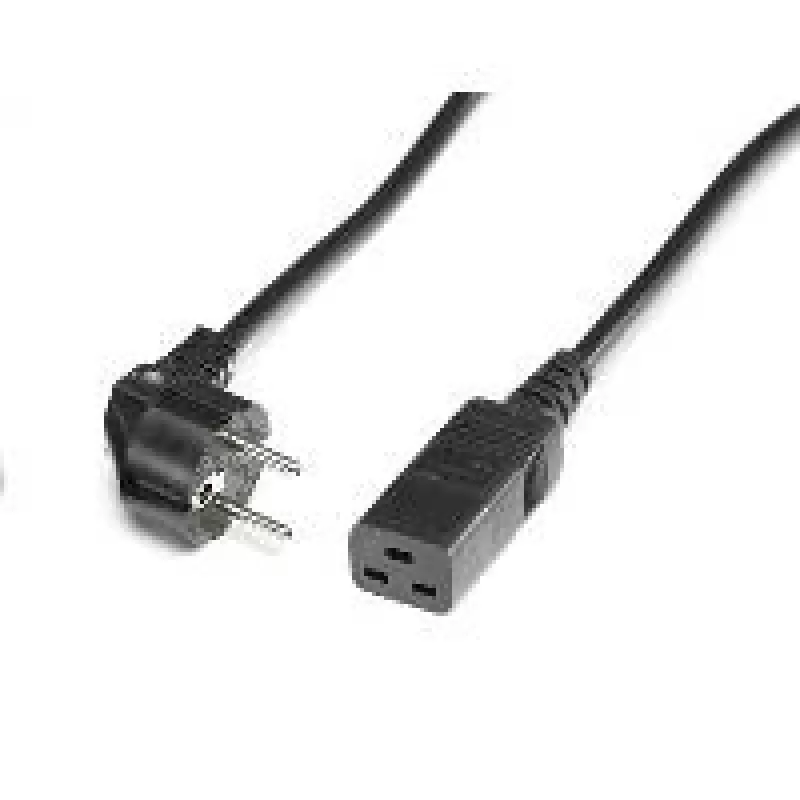

Non-heating appliance supply cable with PVC insulation, rated 16 A / 250 V~ and 70 °C, length 2 m. One end has a moulded right-angled plug with a dual earthing contact system; the other end is a C19 non-heating appliance socket (915.174). The cable is black and intended for supplying powered equipment that accepts a C19 inlet.

Advantages

The Bachmann 352.174 cable offers a standardized C19 coupler and a right-angled earthed plug for space-saving connections. PVC insulation provides mechanical protection and flexibility, while the 16 A / 250 V~ rating supports common IT and office equipment. The moulded contacts ensure secure, low-maintenance electrical connections.

Suitable for

• Servers, rack equipment and power distribution units (PDUs) with C19 inlets
• High-current desktop power supplies and professional workstations
• Office and data center connections where a right-angled plug improves cable routing

Key specifications

• Brand: Bachmann
• MPN: 352.174
• EAN: 4016514031399
• Coupler type: C19 (non-heating appliance socket, type 915.174)
• Plug: Right-angled earthing contact with dual earthing contact system, moulded
• Current/Voltage: 16 A / 250 V~
• Max temperature rating: 70 °C
• Length: 2 m
• Insulation: PVC
• Color: Black

How to use

Connect the moulded right-angled plug to a suitable grounded mains outlet and the C19 coupler to the device inlet. Ensure both the mains outlet and the device accept the rated 16 A / 250 V~ and that cable routing avoids sharp bends and mechanical strain. Do not use for heating appliances; follow local electrical codes and switch off power before connecting or disconnecting.

Recommendations

Inspect the cable periodically for damage to the PVC sheath or moulded ends. Replace the cable if any cracks, exposed conductors or loose contacts are found. For installations in high-temperature or high-mechanical-stress environments, consider a cable with a higher temperature rating or additional mechanical protection.
