Cavo di alimentazione EFB Elektronik EK607SW.1 nero 1 m

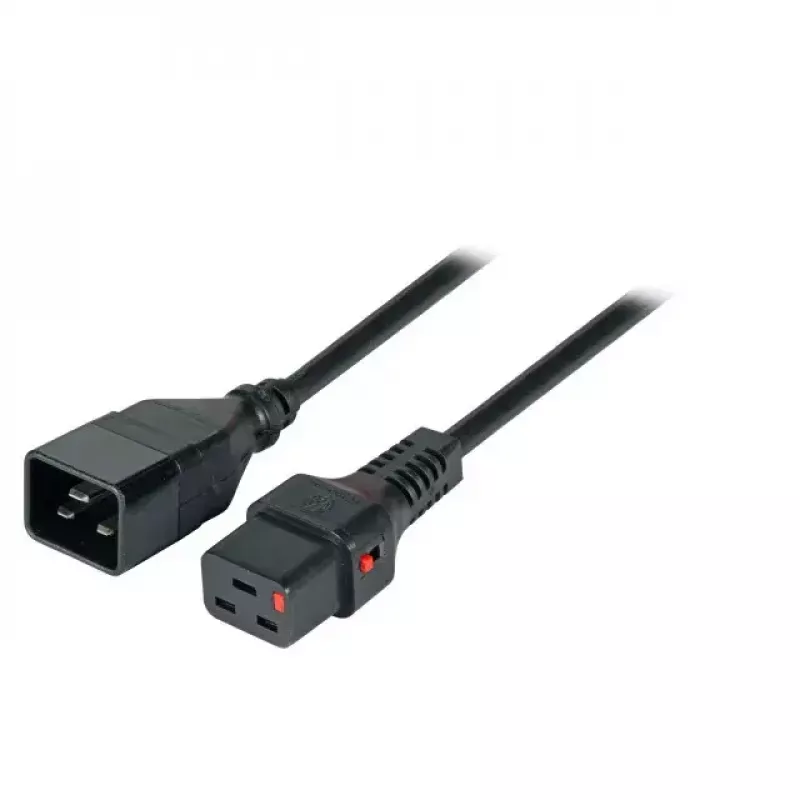

The EFB Elektronik EK607SW.1 power cable is a 1 m black cable with a C20 plug on one end and a C19 connector on the other, designed for devices requiring up to 16 A at 250 V. It features an integrated IEC Lock mechanism that secures the C19 connector to prevent accidental disconnection; the connector is released only after sliding back the red latch. The cable uses international standardised IEC connectors and is VDE tested for compliance with safety requirements.

Advantages

The IEC Lock prevents unintended unplugging of the C19 jack, improving connection reliability in racks and equipment with frequent movement. VDE testing confirms electrical safety for the specified 16 A / 250 V rating. The 1 m length and black colour make the cable suitable for short power connections and standard installations.

Suitable for

• Powering servers, network equipment and rack-mounted devices with C20/C19 inlets
• Short AC connections in data centres and server rooms
• Equipment racks where secure, vibration-resistant connections are required

Key specifications

• Length: 1 m
• Connector 1: C20
• Connector 2: C19 with IEC Lock
• Current/Voltage: 16 A / 250 V
• Colour: Black
• Standards: VDE tested; international IEC connectors

How to use

Insert the C20 plug into the corresponding supply outlet and connect the C19 connector to the device inlet until the IEC Lock latch engages. To remove the C19 connector, slide back the red latch on the IEC Lock and then pull the connector out. Ensure power is switched off at the source before connecting or disconnecting the cable when working with live equipment is not required.

Recommendations

Use the cable within its rated limits (16 A / 250 V) and inspect the IEC Lock latch periodically for wear. Avoid sharp bending near the connectors and replace the cable if the insulation or connector shows damage.
