Cavo di alimentazione interno DeLOCK 83004 0,5 m PCI-E 6 pin a 2 x 6+2 pin

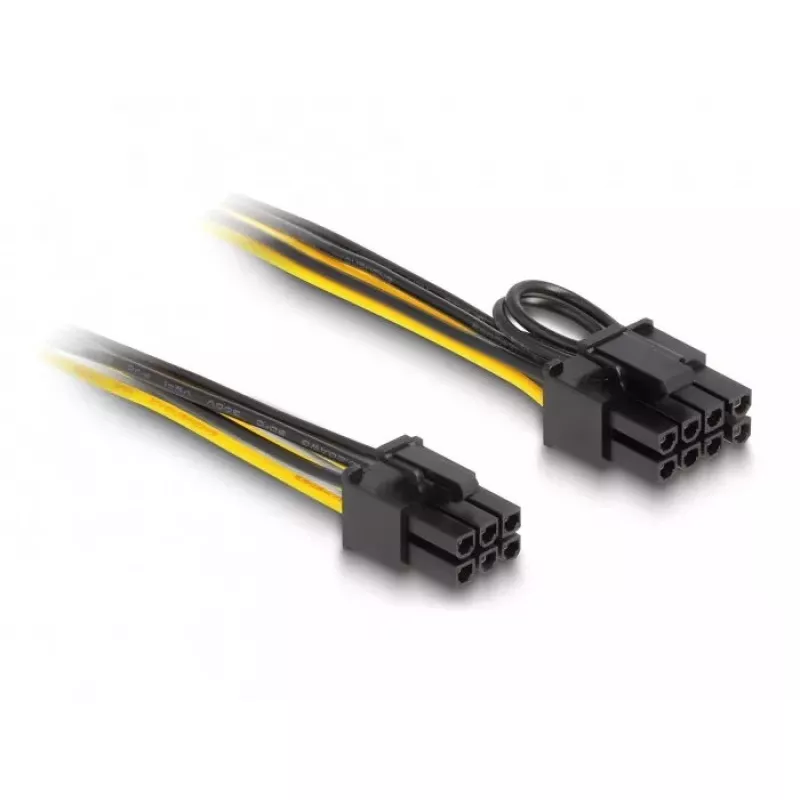

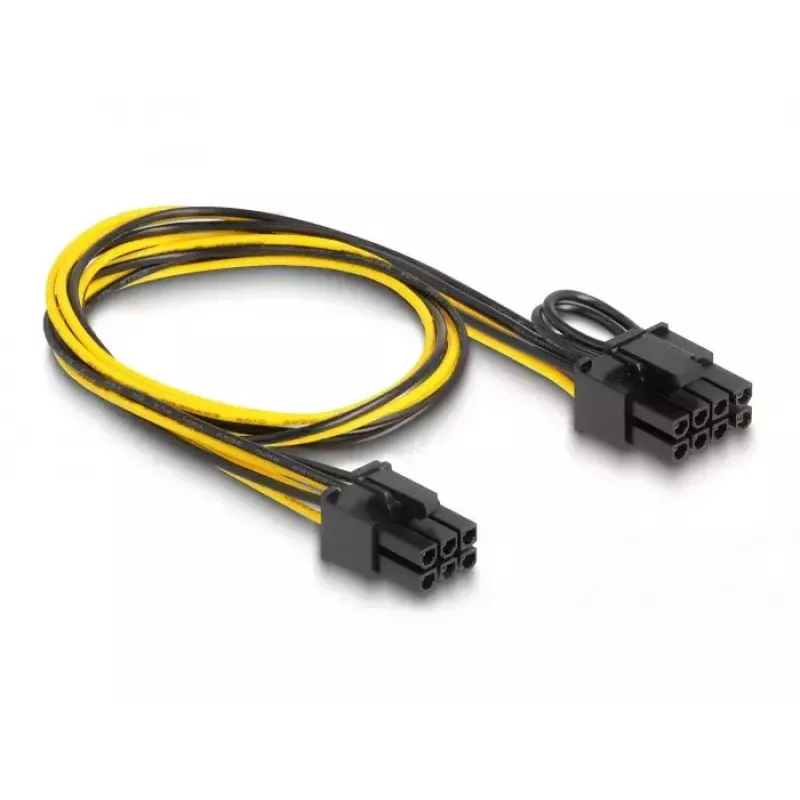

The DeLOCK 83004 internal power cable is 0.5 m long and converts a PCI‑Express 6‑pin power connector into two PCI‑Express 6+2‑pin connectors. It is intended to supply power to PCIe devices such as graphics cards or mining rigs and fits systems that require one 6‑pin source to feed two 6+2‑pin inputs.

Advantages

This cable provides a compact and straightforward solution to split a single PCI‑E 6‑pin power output into two 6+2‑pin plugs, allowing connection of both 6‑pin and 8‑pin PCIe power sockets. At 0.5 m length it offers flexible routing inside PC cases. The cable uses standard PCI‑E pinouts and is suitable for setups where additional PCIe power connectors are needed without changing the power supply.

Suitable for

• Connecting one PSU PCI‑E 6‑pin output to two PCI‑E 6+2‑pin inputs
• Powering graphics cards with 6‑pin or 8‑pin power sockets
• GPU mining rigs and multi‑GPU test benches requiring additional PCIe connectors

Key specifications

• Cable length: 0.5 m
• Connector 1: PCI‑E 6‑pin
• Connector 2: 2 × PCI‑E 6+2‑pin
• Product colour: Black, Yellow
• Brand: DELOCK, MPN: 83004, EAN: 4043619830046

How to use

Power off the system and disconnect it from mains before installation. Plug the PCI‑E 6‑pin end into the corresponding PSU output and connect the two 6+2‑pin ends to the PCIe devices' power sockets. If the device requires an 8‑pin connector, attach the 2‑pin section to form the 6+2 configuration. Ensure connections are fully seated and cables are routed away from fans or sharp edges.

Recommendations

Do not exceed the power capacity of the original PSU 6‑pin output; verify that the power supply can handle the combined current draw of both connected devices. Use this cable only for its intended PCI‑E power purpose and inspect connectors for damage before each use.
