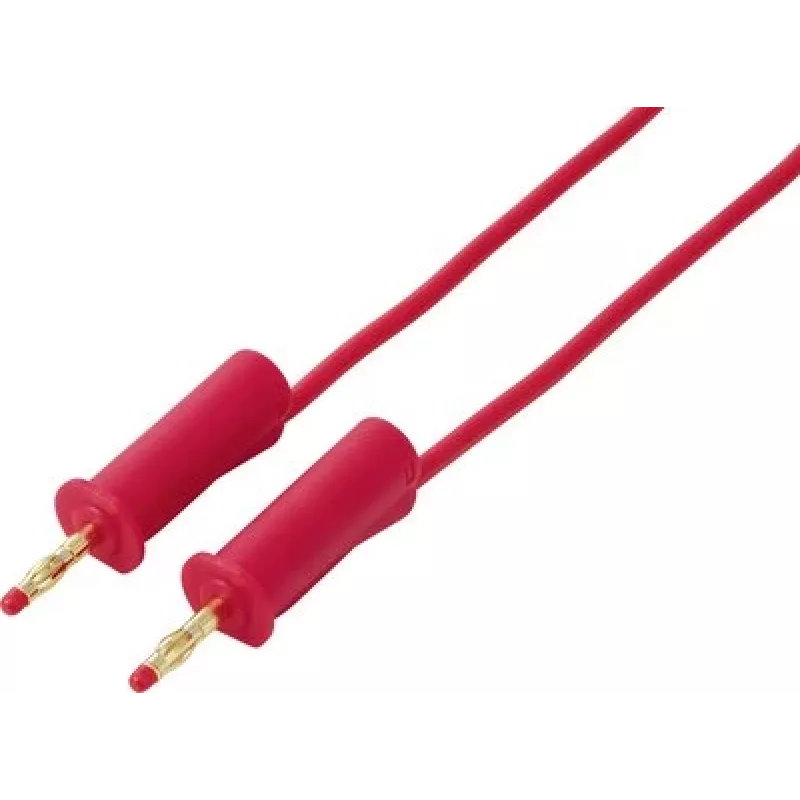

Cavo di misura VOLTCRAFT MSB-132 2 m rosso con connettori a banana impilabili da 4 mm VC-18709990

When measuring voltage, current, or resistance, unreliable test leads can introduce errors and compromise safety. The VOLTCRAFT MSB-132 2 m red test lead provides a secure, low-resistance connection between your multimeter and the circuit under test, ensuring accurate readings every time. With stackable 4 mm banana plugs on both ends, this lead is ideal for professional electricians, electronics engineers, and laboratory technicians who demand dependable performance.

Who is it for

This test lead is built for professionals and hobbyists who need a robust, high-quality connection for multimeters, power supplies, and other test equipment. Whether you are troubleshooting industrial machinery, validating prototypes in the lab, or performing routine electrical maintenance, the MSB-132 delivers the precision and safety required for CAT III 1000 V and CAT IV 600 V environments.

Main features

• 2-meter length provides ample reach for bench work and field measurements.
• Stackable 4 mm banana plugs on both ends allow daisy-chaining multiple leads for complex test setups.
• Nickel-plated brass contacts ensure low contact resistance and long-term durability.
• High-strand copper conductor (1.5 mm²) offers excellent flexibility and current handling up to 16 A.
• PVC insulation is rated for 1000 V and resists abrasion, oils, and common solvents.
• Bright red color for easy identification and polarity coding.

Specifications

• Product type: Test lead / measuring lead
• Cable length: 2 m
• Connector type A: 4 mm banana plug, stackable
• Connector type B: 4 mm banana plug, stackable
• Colour: Red
• Nominal voltage: 1000 V
• Nominal current: 16 A
• Safety category: CAT III 1000 V / CAT IV 600 V
• Conductor cross-section: 1.5 mm²
• Conductor material: Copper (stranded)
• Insulation material: PVC
• Contact material: Nickel-plated brass
• Temperature range: -15 °C to +70 °C
• Quantity per pack: 1 piece
• Compliance: RoHS

Tips

For best results, always inspect test leads for signs of wear or damage before use. When stacking multiple leads, ensure that the total current does not exceed the rating of any single lead. Store the lead loosely coiled to prevent kinks and prolong its service life.
