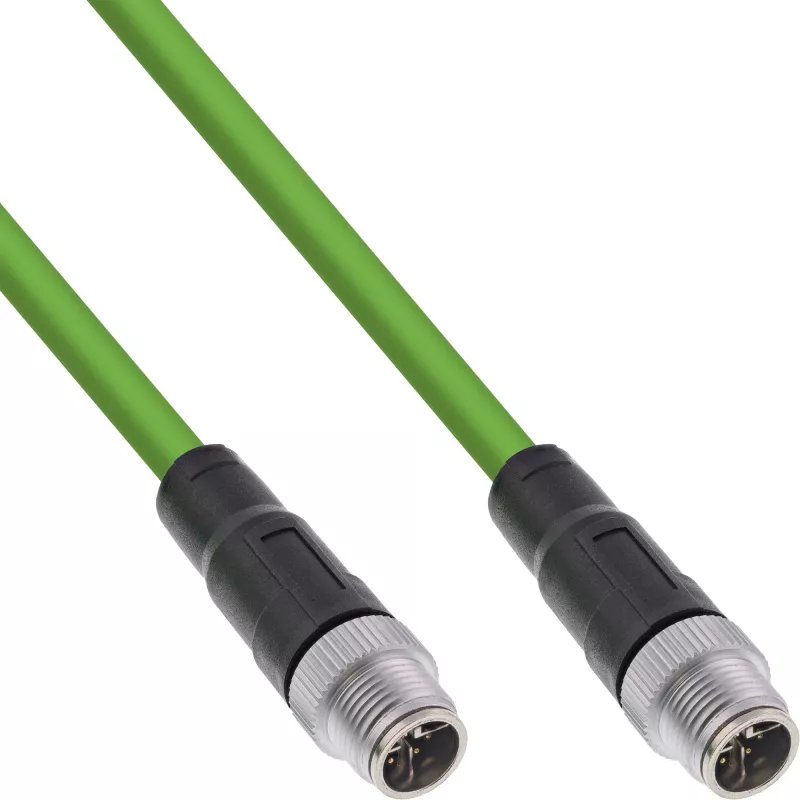

InLine Cavo di rete industriale, M12 8 pin codifica X maschio/maschio, Cat.6A PUR, 7,5 m

The InLine Industrial Network Cable is an M12 8-pin X-coded male/male cable with Cat.6A PUR jacket, designed for industrial networks. It supports data rates up to 10 Gbit/s and is suitable for drag chains and torsion applications.

Key features

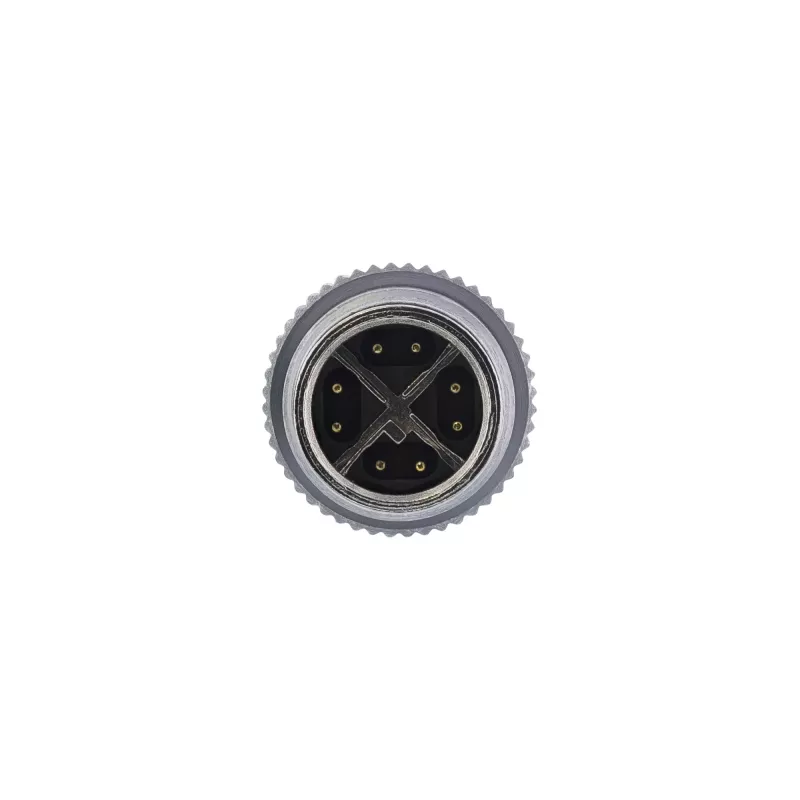

• M12 8-pin X-coded male/male connectors
• Cat.6A performance, up to 10 Gbit/s
• PUR jacket: halogen-free, flame-retardant (UL 94), UV and oil-resistant
• Drag-chain compatible up to 10 million bends
• Torsion-resistant up to 3 million cycles
• IP67 water and dust protection

Specifications

• Brand: InLine
• MPN: 40507
• Connector type: M12 8-pin X-coded male to M12 8-pin X-coded male
• Cable length: 7.5 m
• Wire cross-section: 26 AWG
• Sheath material: PUR
• Shielding: S/FTP
• Dynamic bending radius: >64 mm
• Static bending radius: >32 mm
• Operating temperature: -20 to +80 °C
• Storage temperature: -20 to +80 °C
• Outer diameter: 6.4 mm
• Color: Green
