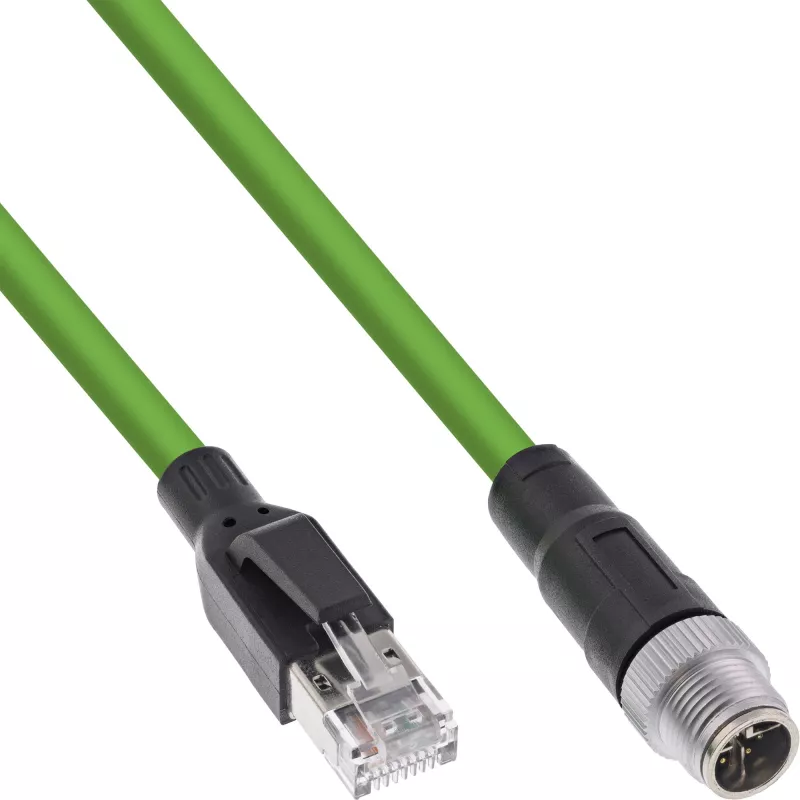

Cavo di rete industriale InLine, M12 8 poli codifica X su connettore RJ45, Cat.6A PUR 1m

High-quality industrial network cable with X-coded CAT6A performancefor data rates of up to 10 Gbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and humid environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 8-pin X-coded plug to RJ45 plug, Cat.6A, PURhas been specially developed for industrial applications that require high data transmission rates and a robust connection. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With Cat.6A performance, the cable enables transmission rates of up to 10 Gbit/s, which ensures stable and fast communication.
Whether for use in production facilities, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Plug type: M12 8-pin X-coded (IP67) to RJ45 (IP20)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

InLine Industrial network cable, M12 8-pin X-coded to RJ45 plug, Cat.6A PUR 1m. Cable length: 1 m, Connector 1: M12, Connector 2: RJ-45. Package width: 175 mm, Package depth: 240 mm, Package height: 15 mm

How to use

Connect the M12 X-coded connector to the matching M12 port on sensors, actuators or industrial devices, and plug the RJ45 connector into the corresponding Ethernet port or switch. Ensure connectors are fully seated and, where applicable, secure the M12 locking thread to maintain IP-rated connections. Route the cable to avoid sharp bends and mechanical strain points.

Recommendations

Use this cable for short, shielded Cat.6A links in industrial settings; avoid exposure to continuous oils or chemicals not compatible with PUR and do not exceed recommended bend radius to preserve signal integrity.
