Cavo di segnale Kramer Electronics C-A35M/IRE-10 3 m nero

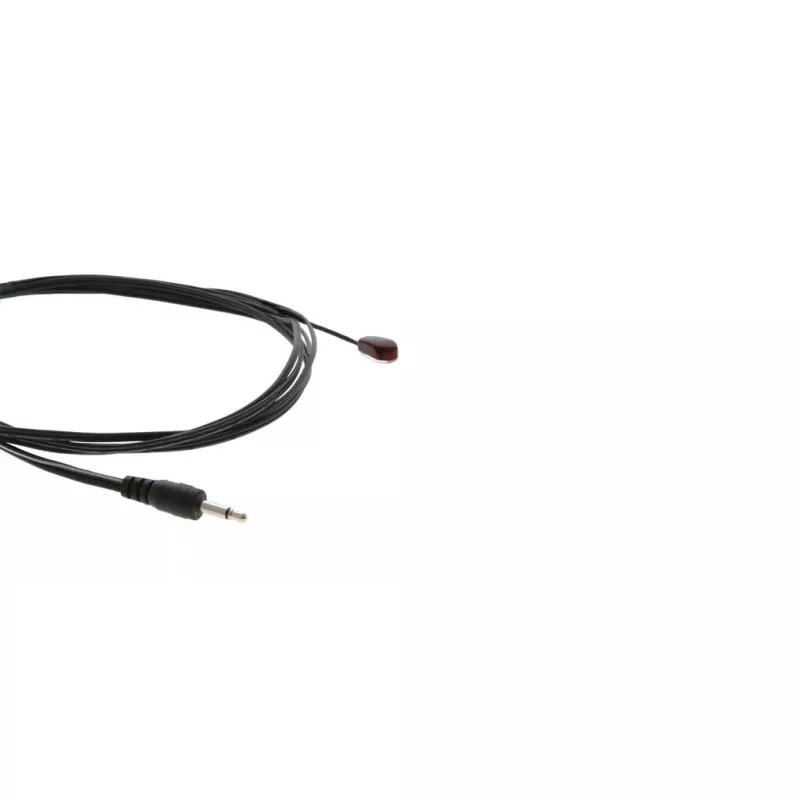

The Kramer C-A35/IRE is a 3 m (10 ft) infrared (IR) emitter permanently mounted on a cable terminated with a 3.5 mm mini connector. The transparent emitter adheres to the IR receiving device with double-sided tape and the connector can be removed if required. It is intended for transmitting IR control signals over a hard-wired connection to IR-controllable devices and is compatible with Kramer RC series remote control panels and the VP-23RC presentation switcher.

Advantages

The built-in 3.5 mm connector provides a simple, standard interface for IR control systems while the 3 m cable length offers flexibility in placement. The transparent adhesive emitter allows discreet placement on the target device. The removable connector enables direct mounting of the emitter when needed.

Suitable for

• Hard-wired IR control installations
• Connecting Kramer RC series remote control panels to IR-controlled devices
• Use with VP-23RC presentation switcher
• Situations requiring a discreet, adhesive IR emitter

Key specifications

• Cable length: 3 m (10 ft)
• Connector: 3.5 mm mini connector (male), removable
• Emitter type: transparent adhesive IR emitter
• Brand: Kramer
• Model reference: C-A35/IRE (MPN 95-0103110, EAN 7290012155017)

How to use

Plug the 3.5 mm connector into the IR output port of the remote control system or control panel. Attach the transparent emitter to the IR window of the target device using the supplied double-sided tape. If direct mounting of the emitter is required, remove the 3.5 mm connector and position the emitter on the device. Verify that the control system sends IR signals and that the target device responds.

Recommendations

Place the emitter directly over the device’s IR receiver window and avoid covering the emitter with opaque materials. Allow the adhesive to bond fully before final placement and test operation after installation.
