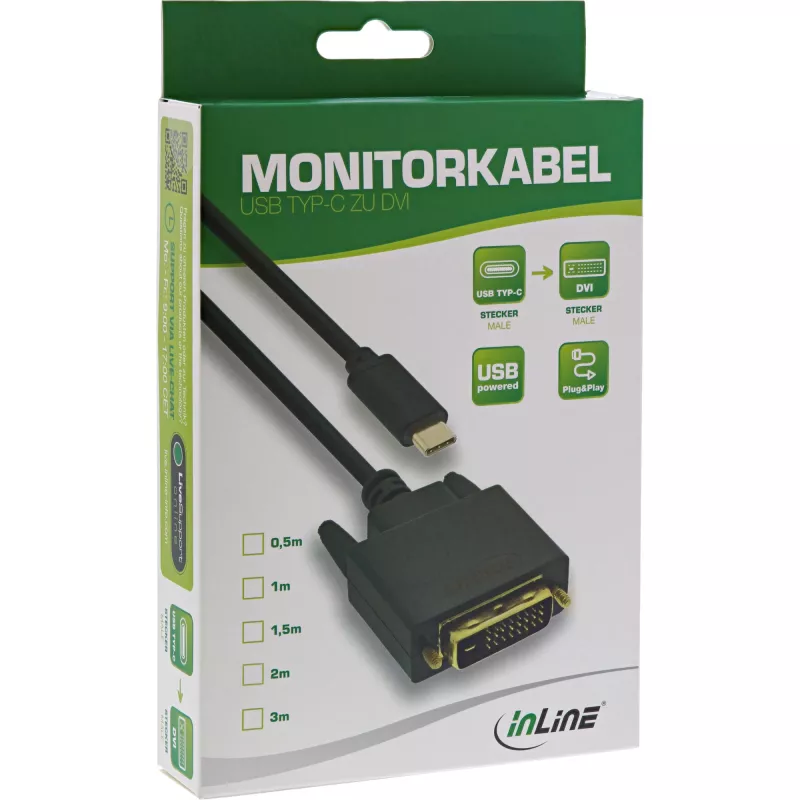

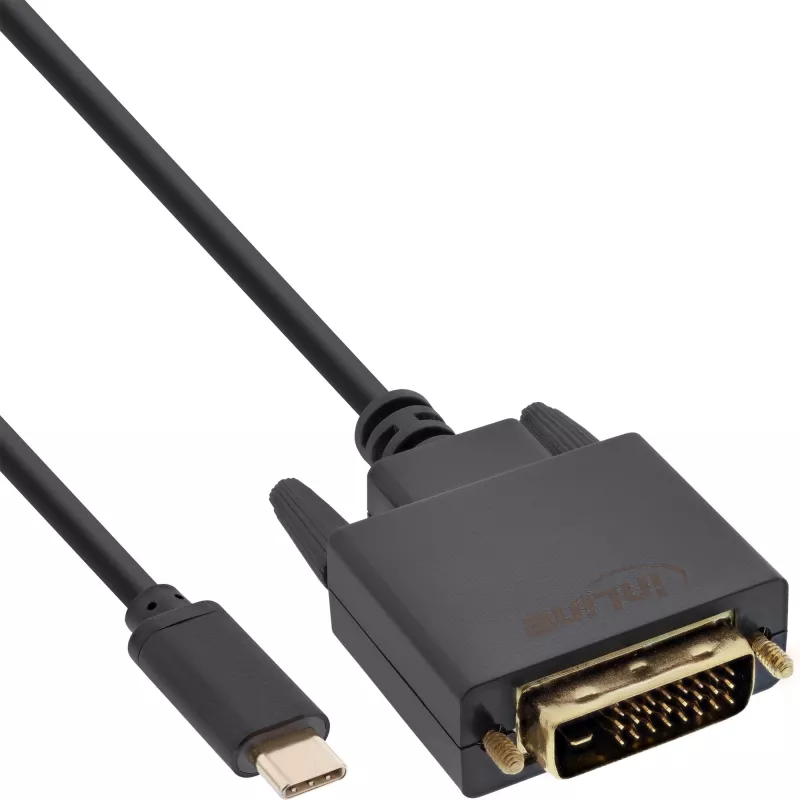

Cavo display USB InLine, USB-C maschio / DVI maschio (DP Alt Mode), nero, 1 m

The InLine USB Display Cable (USB-C male to DVI 24+1 male, 1 m) enables connection of DVI monitors to computers or devices equipped with a USB Type-C port that supports DisplayPort Alternate Mode. The cable transfers video signals up to 1920 x 1080 (1080p), supports 3D and HDCP 1.3, and is USB powered so no external power supply is required. Connectors feature gold-plated contacts and the cable is plug & play; Thunderbolt 3 devices are supported and compatibility follows USB 3.1 and VESA DisplayPort 1.2 standards.

Advantages

This cable provides a simple, single-cable solution to connect USB-C or Thunderbolt 3 hosts to DVI-D displays without additional adapters or power bricks. It supports full HD resolution, 3D content and HDCP 1.3 for protected playback, offers gold-plated contacts for reliable signal transfer, and works immediately via plug & play on supported systems.

Suitable for

• Connecting laptops or desktops with USB-C (DisplayPort Alt Mode) to DVI monitors
• Using Thunderbolt 3 ports to drive DVI displays
• Presentations, office work and standard multimedia playback at 1080p
• Legacy DVI displays that require digital DVI-D input

Key specifications

• Connectors: USB Type-C (male) to DVI 24+1 / DVI-D (male)
• Length: 1 m
• Maximum resolution: 1920 x 1080 (1080p)
• Standards: USB 3.1 compatible, VESA DisplayPort 1.2, DisplayPort Alternate Mode support
• HDCP: compatible with HDCP 1.3
• Power: USB powered (no external power supply required)
• Additional: supports 3D, gold-plated contacts, plug & play
• Brand / MPN: InLine / 64131

How to use

Connect the USB-C plug to a computer or device USB Type-C port that supports DisplayPort Alternate Mode (ports with the DisplayPort logo or Thunderbolt 3 ports). Insert the DVI connector into the DVI-D input on the monitor. The cable is USB powered so no external power connection is needed. After connection the operating system (Windows 7/8/10 or macOS 10.9 and newer) should detect the display automatically; adjust resolution and display settings through the system display control panel if necessary.

Recommendations

Use with hosts that explicitly support DisplayPort Alternate Mode on the USB-C port or with Thunderbolt 3 to ensure proper video output. Verify the monitor accepts DVI-D input (digital DVI) and select 1920 x 1080 resolution in system settings for optimal results.
