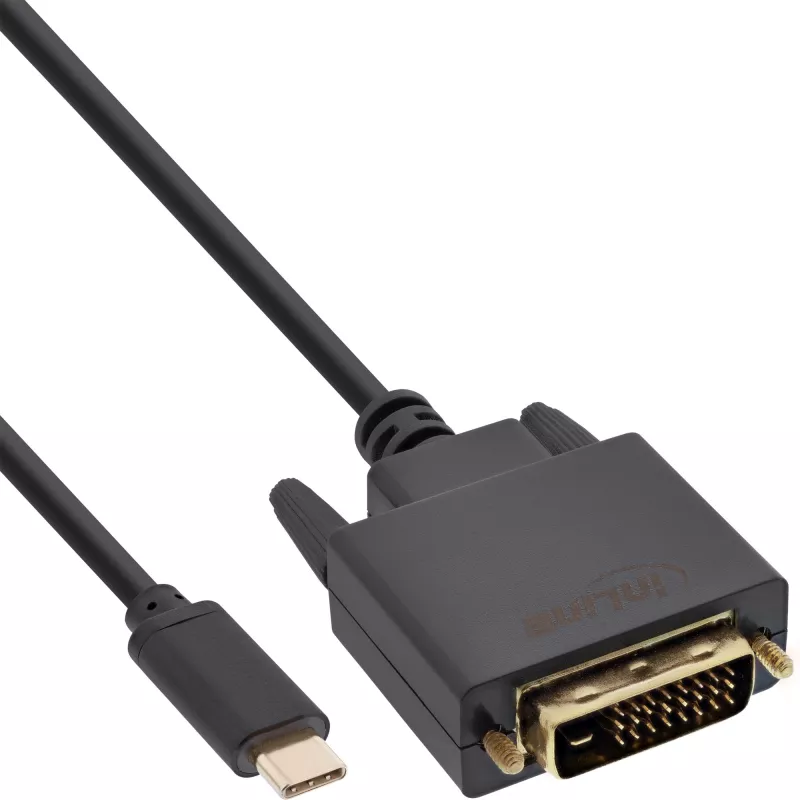

Cavo display USB InLine, USB-C maschio / DVI maschio (DP Alt Mode), nero, 2 m

The InLine USB Display Cable (USB-C male to DVI-D male, 2 m) enables connection of DVI monitors to computers with a USB Type-C port that supports DisplayPort Alternate Mode or to Thunderbolt 3 ports. The cable transmits video signals up to 1920 x 1080 (1080p), supports 3D and HDCP 1.3, and is USB powered so no external power supply is required.

Advantages

This USB-C to DVI cable supports DisplayPort Alt Mode and is compatible with USB 3.1 and VESA DisplayPort 1.2 standards. Gold-plated contacts ensure reliable signal transmission and the plug & play design requires no drivers. The cable is compatible with computers running Windows 7/8/10 and macOS 10.9 or newer, and it also supports systems with Thunderbolt 3.

Suitable for

• Connecting a USB-C or Thunderbolt 3 laptop to a DVI-D monitor or projector
• Extending or mirroring desktop video to DVI displays at up to 1080p
• Using older DVI monitors with modern USB-C equipped devices

Key specifications

• Connectors: USB Type-C (male) to DVI-D 24+1 (male)
• Length: 2 m
• Maximum resolution: 1920 x 1080 (1080p)
• Standards: USB 3.1 compatible, VESA DisplayPort 1.2 compatible
• Supports: 3D, HDCP 1.3
• Power: USB powered (no external power supply required)
• Contacts: Gold plated
• Model/MPN: InLine 64132
• Colour: Black

How to use

Connect the USB Type-C plug to the computer’s USB-C port that supports DisplayPort Alternate Mode or to a Thunderbolt 3 port. Plug the DVI-D connector into the monitor or projector. The cable is plug & play; the system should detect the external display automatically. If necessary, adjust resolution and display mode (extend/mirror) in the operating system’s display settings.

Recommendations

Verify that the computer’s USB-C port supports DisplayPort Alternate Mode — this is often indicated by a DisplayPort symbol next to the port. For optimal video performance set the output resolution to 1920 x 1080. Avoid sharp bends near the connectors and keep the cable away from high-interference sources for best signal quality.
