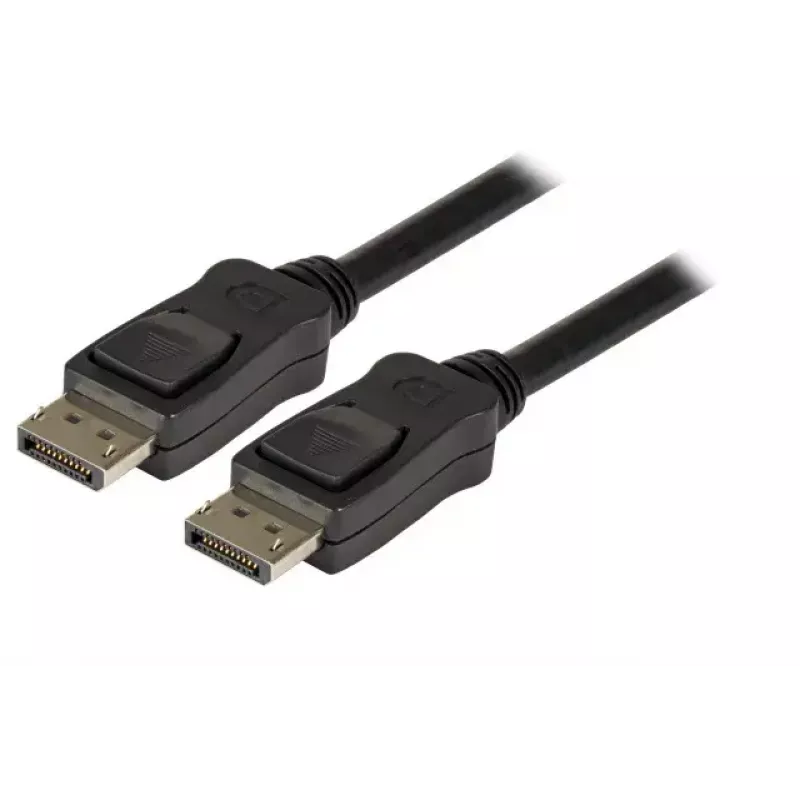

Cavo DisplayPort EFB Elektronik K5560HQSW.1 1 m nero

The EFB Elektronik K5560HQSW.1 DisplayPort cable is a 1 m black cable with DisplayPort connectors on both ends, compliant with DisplayPort 1.4 and supporting up to 4K Ultra HD (4096 x 2160 @ 60Hz). It is built with a premium zinc die-cast housing, full EMC shielding and a DP lock for secure connections. The cable carries high-definition video and audio between DisplayPort-enabled devices such as monitors and projectors.

Advantages

Gold-plated DisplayPort plugs and contacts reduce signal loss and corrosion. Triple shielding and full EMC protection minimise interference, while bare copper conductors and a PVC jacket provide reliable signal transmission and mechanical durability. The DP_PWR (pin 20) is not connected, in accordance with the specification.

Suitable for

• Connecting monitors to PCs or docking stations
• Linking projectors for presentations
• Connecting graphics cards to DisplayPort-enabled displays

Key specifications

• Standard: DisplayPort 1.4
• Maximum resolution: 4K Ultra HD (4096 x 2160 @ 60Hz)
• Length: 1 m
• Connector type: DisplayPort to DisplayPort
• Housing: Zinc die-cast with full EMC shielding and DP lock
• Contacts: Gold plated
• Conductor: Bare copper; Jacket: PVC
• Shielding: Triple shielding
• Pin 20 (DP_PWR): not connected
• Colour: Black

How to use

Insert one DisplayPort connector into the source device (for example a PC or laptop) and the other connector into the display device (monitor or projector) until the DP lock clicks. Ensure both devices are powered on and set the display input to the corresponding DisplayPort source. Configure resolution and refresh rate in the operating system or graphics card settings to achieve up to 4K @ 60Hz as supported.

Recommendations

For optimal performance, avoid tight bends and sharp kinks in the cable, keep the cable away from strong electromagnetic sources, and ensure connectors are fully seated to maintain stable high-resolution video transmission.
