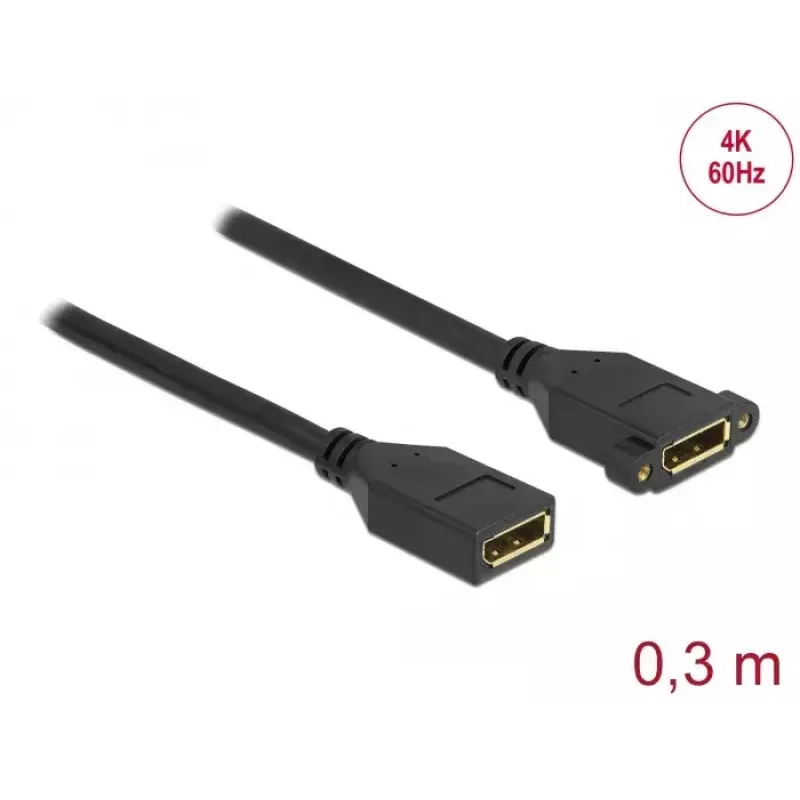

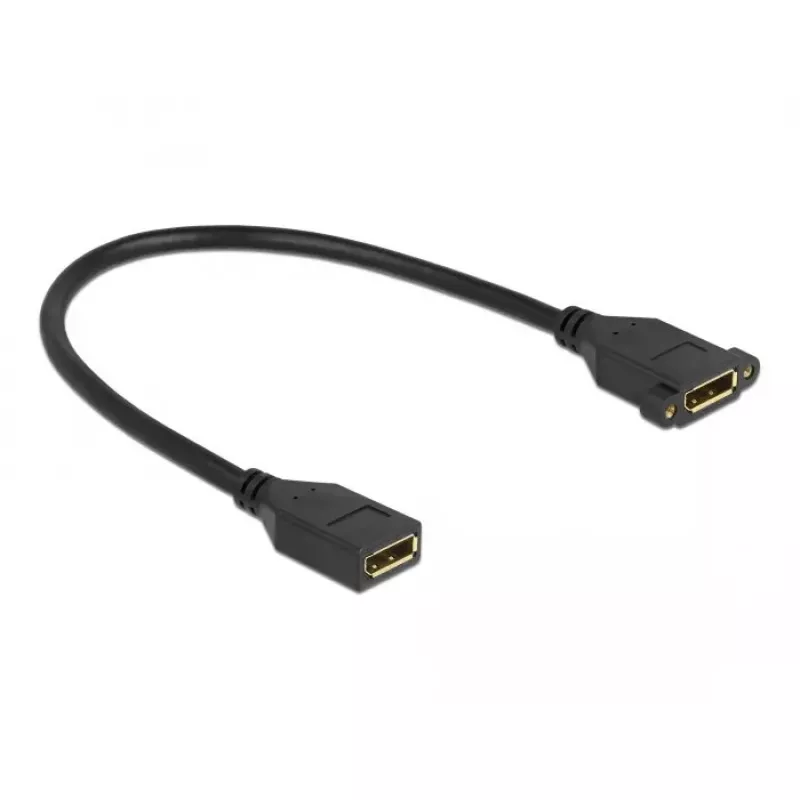

Cavo DisplayPort femmina su femmina per montaggio a pannello DeLOCK 87099

This DisplayPort cable by DeLOCK is a female-to-female panel-mount extension designed to extend or reposition a DisplayPort connection. The rear female connector can be secured with two screws to a slot bracket, cable duct or enclosure opening, allowing a DisplayPort port to be installed in a convenient, accessible location. The cable supports DisplayPort 1.2 and is suitable for 4K resolution at 60 Hz. Cable length is 0.3 m and the cable is black.

Advantages

The panel-mount design provides a fixed, secure DisplayPort connection point that can be mounted to a bracket or enclosure. Female-to-female wiring allows easy extension or relocation of an existing DisplayPort port without modifying devices. Compact 0.3 m length and 7 mm diameter make it suitable for installation in limited spaces. Compliant with DisplayPort 1.2 bandwidth for 4K@60 Hz video transmission.

Suitable for

• Extending or relocating a DisplayPort connection in a workstation or AV rack
• Installing a DisplayPort socket in a PC case, enclosure or panel
• Use in tight or cable-managed environments where a short extension is needed

Key specifications

• Brand: DELOCK
• Model / MPN: 87099
• EAN: 4043619870998
• Connector: DisplayPort female to DisplayPort female (panel-mount)
• Standard: DisplayPort 1.2
• Supported resolution: up to 4K (3840 × 2160) at 60 Hz
• Cable length: 0.3 m
• Colour: Black

How to use

Mount the female connector to a compatible slot bracket, cable duct or enclosure opening using the two screw holes. Connect an existing DisplayPort male cable or device to one side and the device or cable leading to the display to the other side. Ensure screws are tightened to secure the panel-mount connector and route the 0.3 m cable to avoid sharp bends. Verify the DisplayPort connection and set the display resolution to 4K@60 Hz if supported by the connected devices.

Recommendations

For optimal performance, use with DisplayPort 1.2-compatible devices and quality DisplayPort cables. Avoid excessive bending or strain at the connector; secure the mounted connector to prevent movement. This product is intended for signal extension and panel installation — do not expose to moisture or extreme temperatures.
