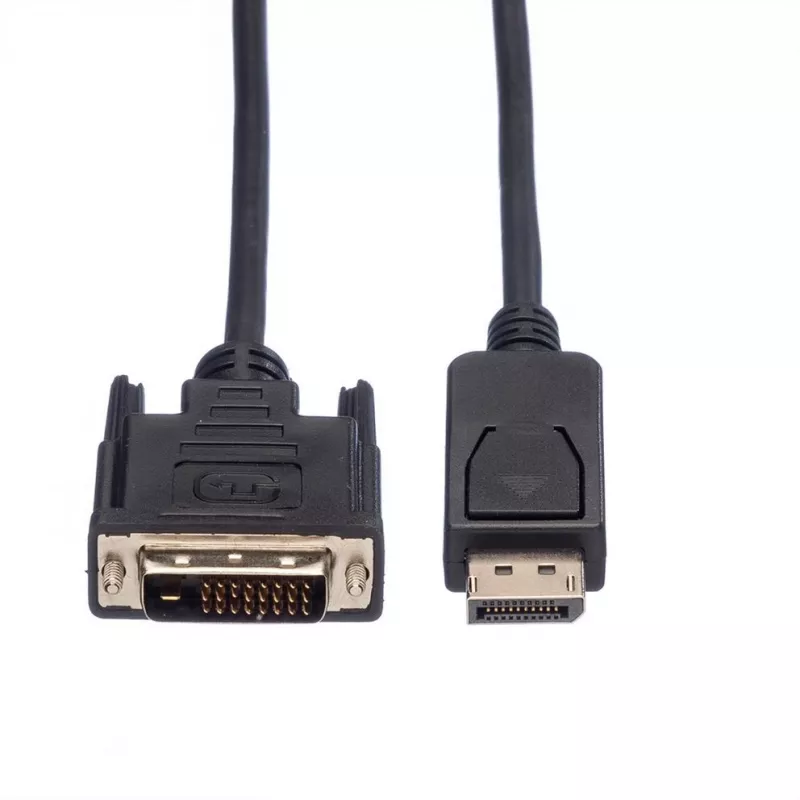

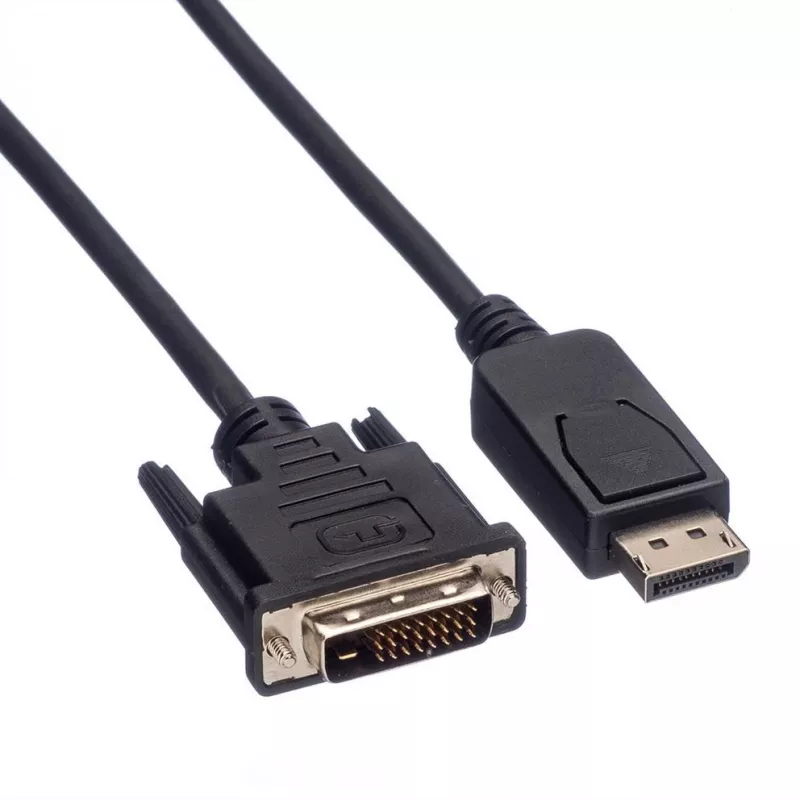

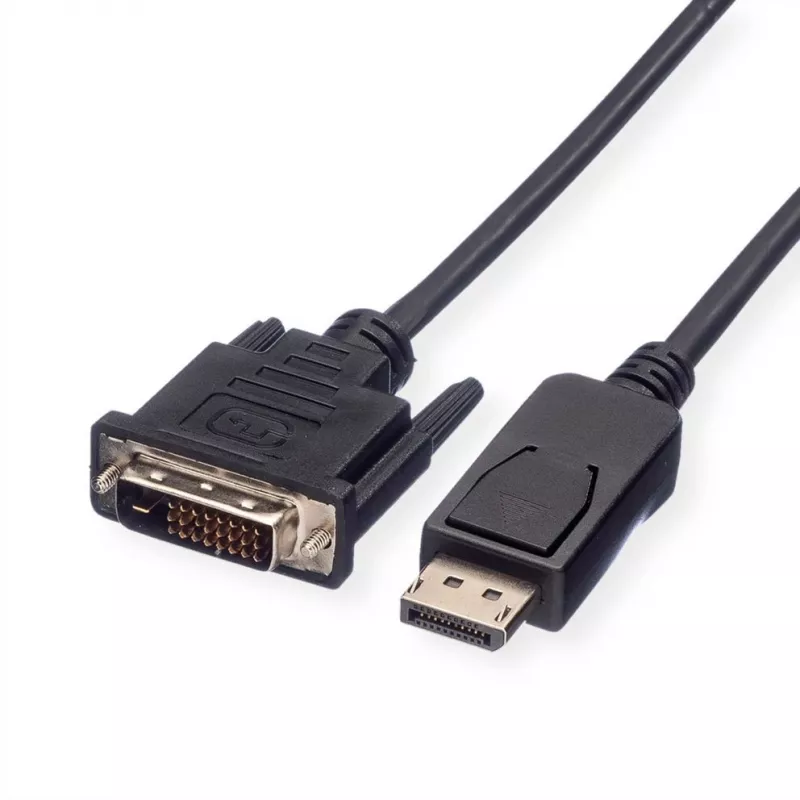

Cavo DisplayPort VALUE DP-DVI (24+1) LSOH M/M 5 m

The VALUE DisplayPort Cable DP-DVI (24+1) LSOH M/M 5 m connects a graphics card with a DisplayPort output to a monitor with a DVI input, supporting a maximum resolution of 1920x1080 at 60 Hz. The cable combines a male DisplayPort and a male DVI (24+1) connector in a 5-metre length and is constructed with LSOH (Low Smoke Zero Halogen) materials for improved safety in enclosed environments.

Advantages

This 5 m VALUE cable provides reliable video transmission between DisplayPort-equipped source devices and DVI displays while minimizing smoke and toxic gas emissions due to its LSOH jacket. The DP to DVI wiring supports standard Full HD resolution at 60 Hz and the solid connectors ensure stable mechanical and signal contact for typical home and office setups.

Suitable for

• Connecting a PC graphics card (DisplayPort) to a DVI monitor
• Extending placement options where direct device proximity is impractical
• Office and home environments requiring low-smoke cabling

Key specifications

• Connectors: DisplayPort (male) to DVI 24+1 (male)
• Length: 5 m
• Maximum supported resolution: 1920x1080 @ 60 Hz
• Cable jacket: LSOH (Low Smoke Zero Halogen)
• Brand: VALUE
• MPN: 11.99.5617
• EAN: 7611990129751

How to use

Ensure both devices are powered off before connecting. Insert the male DisplayPort connector into the source device’s DisplayPort output and the male DVI connector into the monitor’s DVI input until secure. Power on the monitor and source device, then set the display resolution to 1920x1080 @60 Hz in the operating system if it is not selected automatically. If no image appears, check connector seating and cable compatibility with the graphics card and monitor.

Recommendations

Use the VALUE DisplayPort DP-DVI cable in indoor environments and avoid sharp bends or kinks. For installation in public or commercial buildings where low smoke emissions are required, the LSOH construction is appropriate; do not expose the cable to excessive heat or moisture.
