Cavo gender-changer InLine 69927J — adattatore di rete per invertire l'orientamento del connettore

Reliable weather protection according to IP68:The robust silicone seal permanently protects the RJ45 connection from water and dust – ideal for outdoor installations.
High network performance with Cat.6A:Supports data rates up to 10 Gb/s and bandwidths up to 500 MHz for stable, high-performance connections.
Shielded housing for EMC-critical environments:Reduces interference from electromagnetic influences – perfect for industry, mechanical engineering, or sensitive IT installations.
Easy installation with M20 thread:The compact coupling can be quickly and securely integrated into housings or distributors – no special tools required.
Flexible use thanks to variable cable diameter:Suitable for cables from 1.5 to 7.5 mm – ideal for connecting a wide variety of patch cables indoors and outdoors.

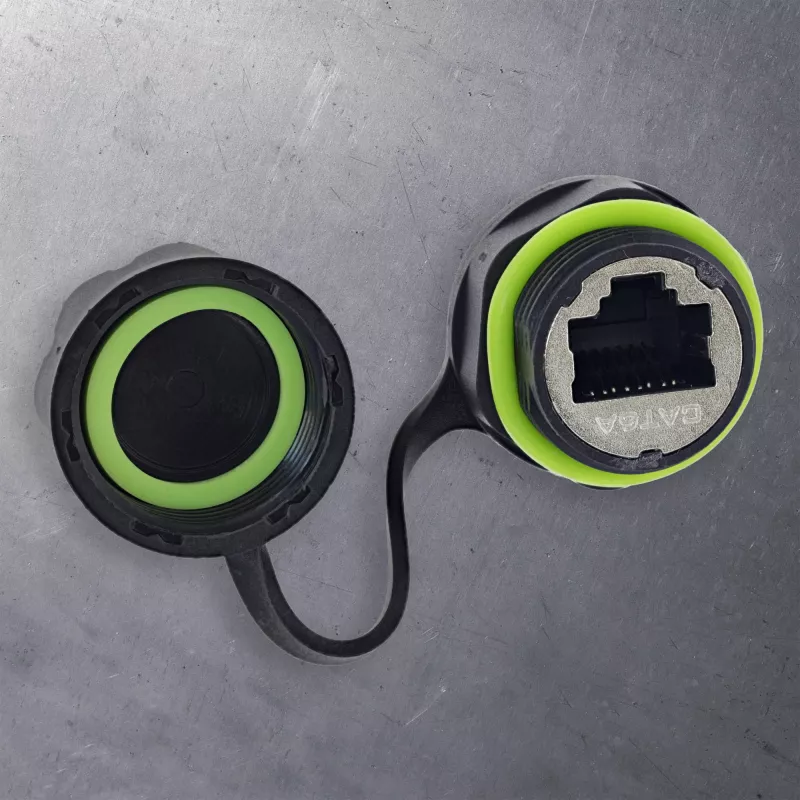

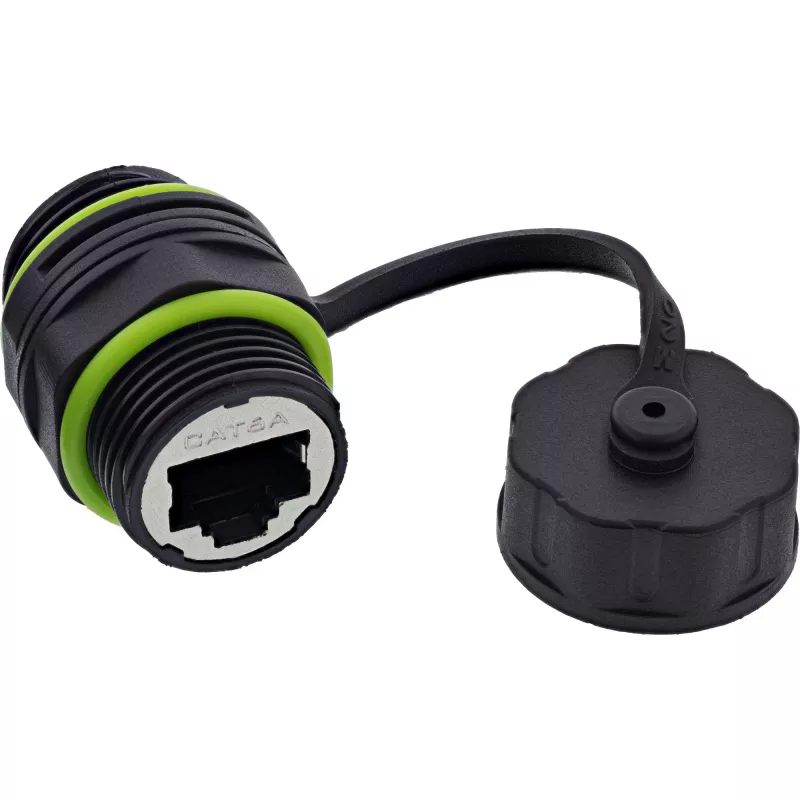

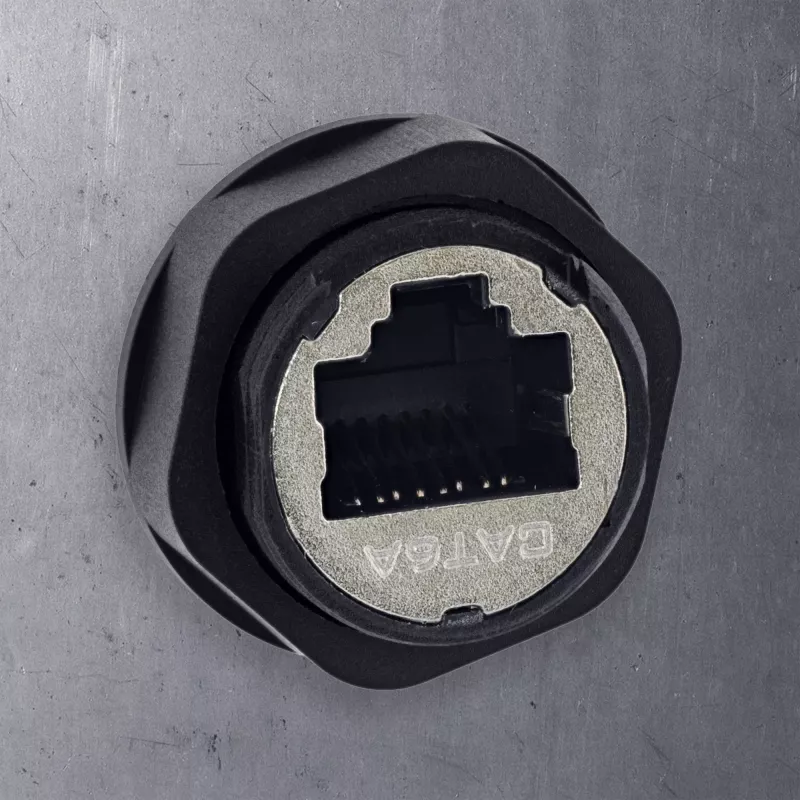

The InLine® Mini Cat.6A patch cable coupler was developed for demanding applications in harsh environments. With its certified IP68 protection class, it provides reliable protection against dust and water and is ideal for temporary outdoor use or installation in weather-protected enclosures – whether for professional applications in industrial plants, surveillance systems, or expanding a home network in the garden or basement.
The high-quality workmanship with PA66 housing, silicone seal, and shielded RJ45 sockets ensures reliable connections even in electromagnetically stressed environments. Thanks to support for 10 Gb/s transmission rates and a bandwidth of up to 500 MHz, the coupler meets the highest requirements for network signal quality.

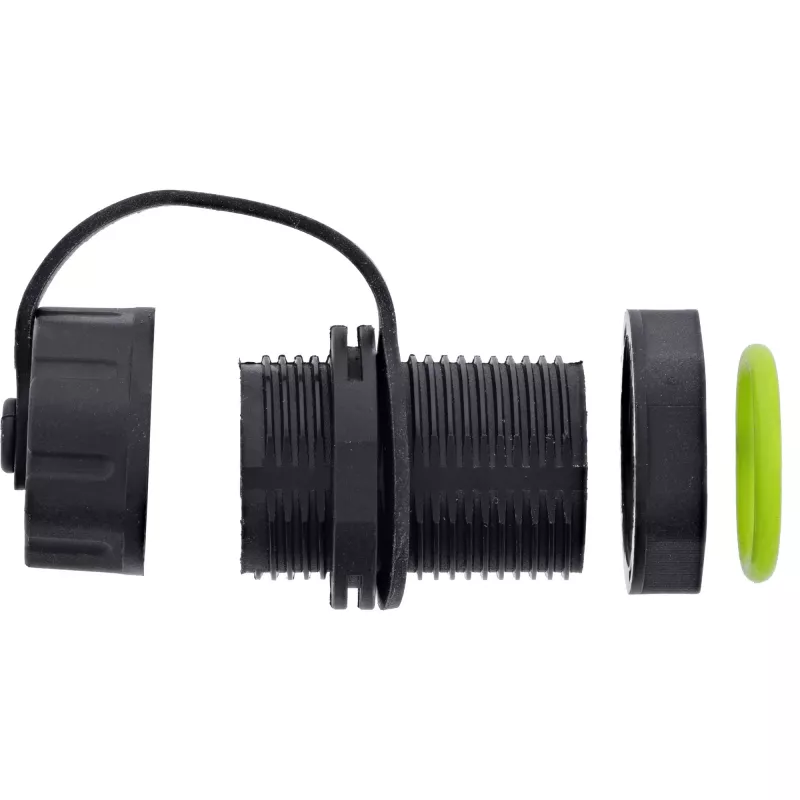

Installation is quick and easy: the M20 thread allows the coupler to be inserted into enclosures or distribution cabinets. Two different sealing inserts enable use with cable diameters from 1.5 to 7.5 mm, making the coupler particularly flexible and adaptable.
Whether you need a temporary extension, a weatherproof connection, or a robust solution for industrial environments, this patch cable coupler provides you with a reliable connection solution for demanding scenarios.

Material: Nylon (PA66)
Thread size: M20
Module: Cat.6A female/female
Shielding: Yes
Seal: Silicone
Transfer rate: max. 10 Gb/s
Transfer distance: max. 100 m
Bandwidth: 500 MHz
IP protection class: IP68
Temperature resistance: –40 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

InLine 69927J. Product type: Cable coupler, Product colour: Black, Material: Polyamide, Silicone. Compliance certificates: TÜV mark. Width: 25 mm, Depth: 40 mm, Height: 25 mm. Quantity per pack: 1 pc(s). Package width: 50 mm, Package depth: 120 mm, Package height: 30 mm

How to use

Insert the coupler into the enclosure or distribution panel using the M20 thread and secure it. Choose the correct sealing insert to match the cable diameter, feed the cable through the seal, and terminate the RJ45 patch cables into the female Cat.6A sockets on each side. Verify connection continuity and network performance after installation; observe the maximum recommended cable run for optimal signal quality.

Recommendations

Use the shielded coupler where electromagnetic interference may affect network performance and ensure silicone seals are properly seated for outdoor or damp locations. For best results with Cat.6A performance, keep individual cable runs within the standard maximum length and avoid excessive bending or crushing of the cable.
