Cavo gender-changer USB InLine 69927Q – adattatore per cambiare il tipo di connettore (InLine 69927Q)

Compact USB-A coupling:Only 74 mm long – perfect for installations with limited space.
IP68-protected:Robust connection for demanding outdoor and industrial applications.
Data and power:5 Gb/s transfer rate, 2 A current at 5 V – ideal for data transfer and charging.
Shielded housing:High EMC protection for interference-free connection in critical environments.
Tool-free installation:With screw mechanism and seal – safe, fast, reliable.

The InLine® USB-A cable connector in a short design with IP68 protection is the ideal solution for USB-A connections under extreme conditions. Its compact length of only 74 mm makes it ideal for confined installation locations, e.g., in outdoor enclosures, machines, or industrial systems.
With a USB-A socket on both sides, the shielded connector is designed for data transfers up to 5 Gb/s and charging with up to 2 A at 5 V. It thus meets all the requirements of a modern USB connection – both for industrial applications and for professional outdoor installations.

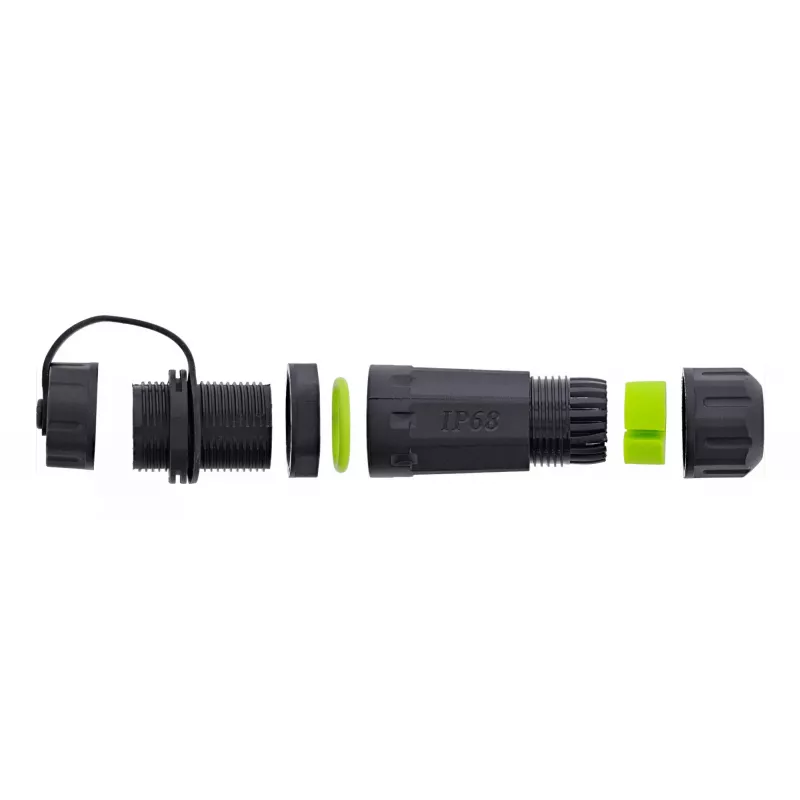

Thanks to the integrated screw mechanism, the coupling can be mounted quickly and without tools. The combination of a green sealing ring and rubber seal ensures reliable IP68 sealing – against dust, moisture, and mechanical stress.
The ideal solution for USB connections in demanding environments where reliability, protection, and compactness are required.

Material: Nylon (PA66)
Thread size: M20
Module: USB-A female/female
Seal: Silicone
Transfer rate: 5 Gb/s
Current: 2 A
Voltage: 5 V
Charging: yes
Protection rating: IP68
Temperature resistance: -25 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

InLine 69927Q. Product type: Cable coupler, Product colour: Black, Material: Polyamide, Silicone. Compliance certificates: TÜV mark. Width: 25 mm, Depth: 90 mm, Height: 25 mm. Quantity per pack: 1 pc(s). Package width: 70 mm, Package depth: 140 mm, Package height: 25 mm

How to use

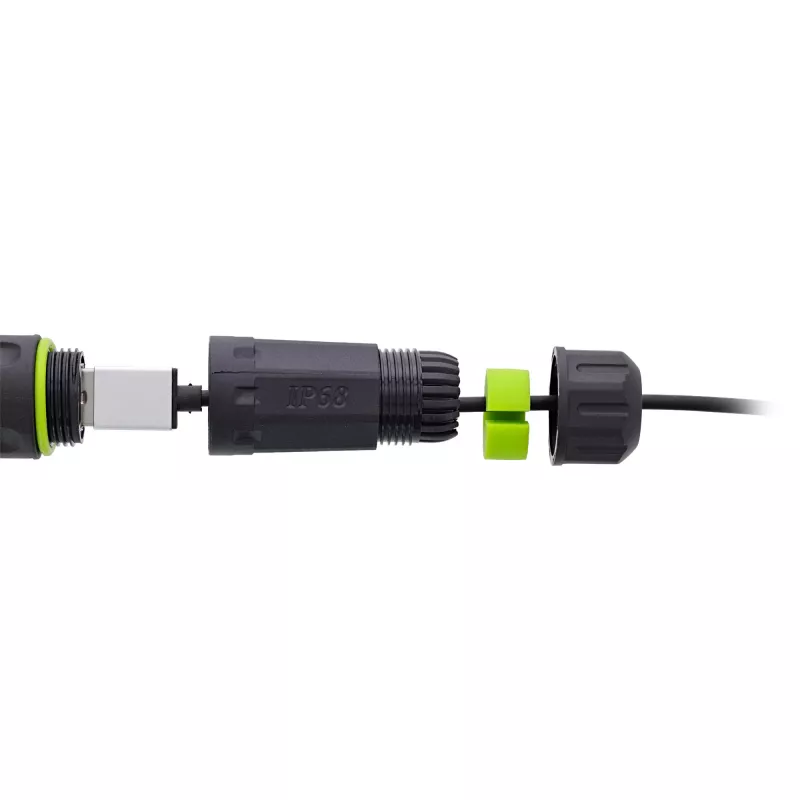

Insert USB-A plugs from each cable or device into the respective female sockets of the coupling. Position the adapter where the connection is required and tighten the integrated screw mechanism until the green sealing ring and rubber seal engage to achieve IP68 protection. Ensure cable diameters match the specified ranges so the seal compresses correctly. No special tools are required for installation.

Recommendations

For reliable long-term outdoor or industrial use, verify that connected cables conform to the listed diameter ranges and that the surrounding enclosure provides sufficient strain relief. Avoid exposure to temperatures outside the specified -25 °C to +105 °C range.
