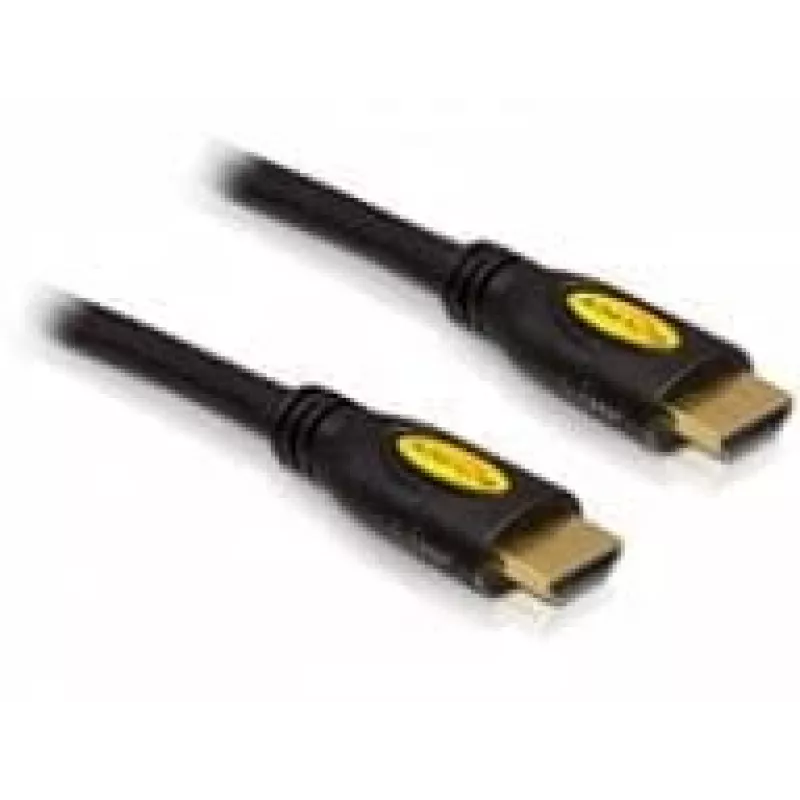

Cavo HDMI DeLOCK 1.4 1,0 m maschio/maschio

The DELOCK HDMI Cable 1.4, 1.0 m (male/male) allows connection between HDMI-equipped devices for high-quality audio and video transmission. Compliant with the HDMI 1.4 specification, the cable is backward compatible with earlier HDMI versions and supports resolutions up to 4096 x 2160 (4K). It uses 19-pin HDMI Type A connectors on both ends and gold-plated contacts for reliable signal transfer.

Advantages

This HDMI 1.4 cable features High Speed transmission with Ethernet support and a data rate up to 10.2 Gb/s. It supports 3D formats up to 1080p at dual 60 frames per second, an increased refresh rate up to 120 Hz, the Audio Return Channel (ARC) and advanced colour spaces for improved picture presentation. The cable also supports Dolby® TrueHD and DTS-HD Master Audio™ for compatible devices.

Suitable for

• Connecting TVs, monitors and projectors to media players, Blu-ray players and set-top boxes
• Linking computers and graphics cards to external displays
• Home theatre systems that use ARC or high-resolution audio formats
• Setups that require 4K video or 3D playback at up to 1080p

Key specifications

• Standard: HDMI 1.4 (High Speed HDMI with Ethernet)
• Connectors: 19-pin HDMI Type A male – 19-pin HDMI Type A male
• Cable length: 1.0 m
• Data transfer rate: up to 10.2 Gb/s
• Maximum resolution: up to 4096 x 2160 pixels (4K)
• 3D support: up to 1080p in two video streams at 60 fps each
• Refresh rate: up to 120 Hz
• Features: Audio Return Channel (ARC), gold-plated connectors, advanced colour space
• Audio formats: supports Dolby® TrueHD and DTS-HD Master Audio™

How to use

Insert one HDMI Type A male connector into the HDMI output of the source device (for example a Blu-ray player, PC or set-top box) and plug the other end into the HDMI input of the display device (TV, monitor or projector). Ensure both devices are powered on and set the display input to the corresponding HDMI port. For ARC functionality, connect the cable between the TV HDMI ARC port and the AVR or soundbar HDMI ARC input and enable ARC in device settings if required.

Recommendations

For optimal performance, use the cable for runs up to 1.0 m as specified and avoid tightly coiling or sharply bending the cable. When using high-resolution 4K or high-frame-rate 3D content, verify that both connected devices support the desired formats and enable relevant settings (ARC, 3D, HDR if applicable) in each device's menu.
