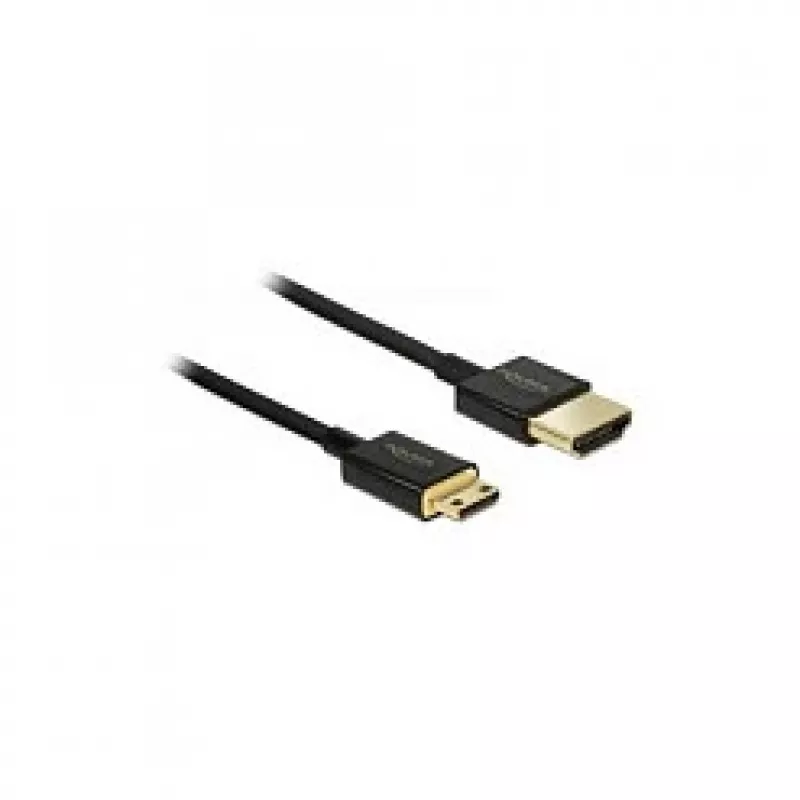

Cavo HDMI DeLOCK HDMI-A/HDMI Mini-C 1 m

The DeLOCK HDMI-A/HDMI Mini-C 1 m cable is a high-speed HDMI with Ethernet cable designed to connect devices with a Mini HDMI (Type C) interface—such as cameras or tablets—to monitors or TVs with a standard HDMI-A port. The cable features a slim diameter, short connectors and gold-plated contacts for reliable connections. It supports up to 18 Gbit/s bandwidth and resolutions up to 3840 x 2160 (4K) at 60 Hz, as well as 4K 3D at up to 24 Hz and 21:9 cinema aspect ratios.

Advantages

The triple-shielded construction reduces interference while maintaining stable high-speed data transfer. The cable transmits audio, video and Ethernet signals simultaneously and supports two independent video channels for displaying two video streams on one screen, plus up to four simultaneous audio channels. A high audio sampling rate (up to 1536 kHz) improves audio fidelity. The slim cable profile and short connectors facilitate connections in tight spaces.

Suitable for

• Connecting cameras or tablets with Mini HDMI (Type C) to TVs or monitors with HDMI-A
• Displaying 4K video at 60 Hz or 4K 3D at 24 Hz
• Applications requiring audio and Ethernet over HDMI
• Setups that need two video channels or multiple audio channels over one cable

Key specifications

• Brand: DELOCK
• Model / MPN: 84776
• EAN: 4043619847761
• Connectors: HDMI Type A (Standard) to HDMI Type C (Mini)
• Cable length: 1 m
• Maximum bandwidth: 18 Gbit/s
• Maximum resolution: 3840 x 2160 (4K) at 60 Hz
• Supports 4K 3D up to 24 Hz and 21:9 aspect ratio
• Triple shielded; gold-plated contacts
• Colour: Black

How to use

Connect the HDMI Type C (Mini) end to the Mini HDMI port of your camera or tablet and insert the HDMI Type A end into the HDMI input on your TV or monitor. Ensure both devices are powered on and set the display source on the monitor/TV to the corresponding HDMI input. For optimal performance at 4K/60 Hz, use compatible source and display devices and enable the appropriate output resolution in the source device settings.

Recommendations

For reliable 4K video and high-resolution audio transmission, avoid excessive bending of the cable and keep connectors free of dust. Verify that both connected devices support the desired resolutions and features (Ethernet over HDMI, multi-channel audio) to use all capabilities of the cable.
