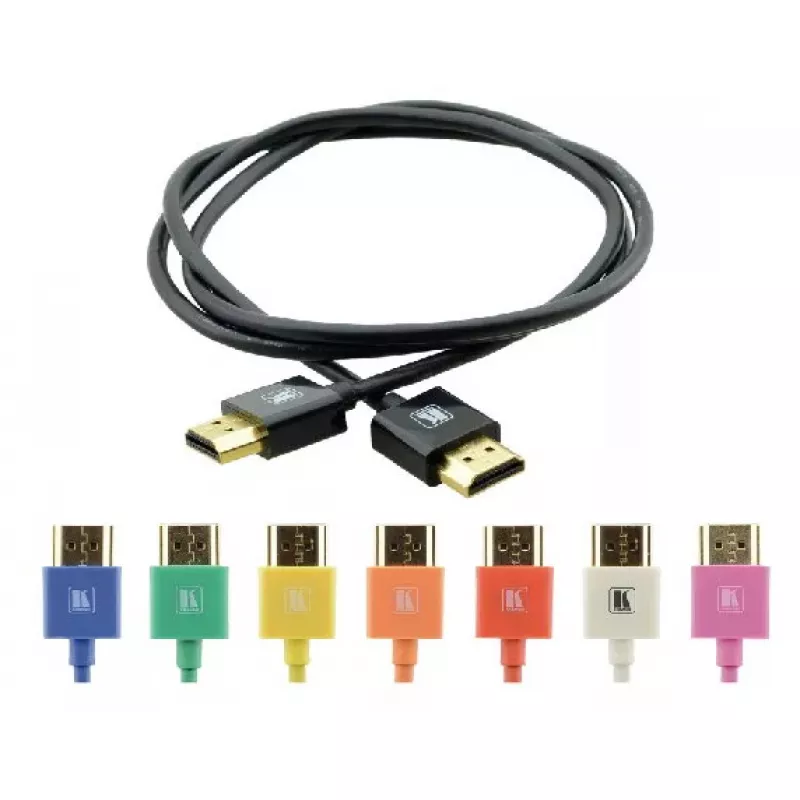

Cavo HDMI Kramer Electronics 0,3 m 97-0132001

Kramer's C−HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet designed for tight spaces behind TVs or inside cabinets. The slim HDMI connector and reduced cable diameter allow easier routing and a smaller bend radius while supporting up to 4K@60fps video and full HDMI feature set.

Advantages

The cable provides an uncompressed digital link between consumer electronics such as DVD players, set-top boxes and displays, supporting HDMI Ethernet Channel, 3D, x.v.Color™, Deep Color, Lip Sync and uncompressed multichannel audio including Dolby TrueHD and DTS-HD. Its slim connector heads (approximately 16.0 mm wide and 8.0 mm thick) and low-profile design save installation depth, making it suitable for wall-mounted displays and crowded AV racks. Multiple color options enable simple color-coding of connections.

Suitable for

• Connecting a TV to a nearby set-top box, Blu-ray player or streaming device
• Short interconnects behind wall-mounted TVs or in AV cabinets where space is limited
• Color-coded installations requiring clear identification of inputs

Key specifications

• Maximum resolution: 4K@60Hz (3840 x 2160)
• Length: 0.3 m
• Connectors: HDMI Type A (Standard) to HDMI Type A (Standard)
• Ethernet: HDMI Ethernet Channel supported
• Audio/video: 3D, x.v.Color™, Deep Color, Lip Sync, Dolby TrueHD, DTS-HD, HDMI uncompressed audio
• Connector dimensions: approx. 16.0 mm wide × 8.0 mm thick
• Color: Black (other colors available in the product family)

How to use

Connect one HDMI Type A end to the display (TV or monitor) and the other end to the source device (set-top box, Blu-ray player, game console or streaming adapter). Ensure both devices are powered on and set the TV input to the corresponding HDMI port. For Ethernet features, connect network-capable devices that support the HDMI Ethernet Channel on both ends.

Recommendations

If routing the cable behind a wall-mounted TV, avoid sharp bends and maintain gentle radius turns to preserve signal integrity; the slim connector reduces depth needs but still requires careful alignment when plugging into recessed ports.
