Cavo HDMI Kramer Electronics CLS-AOCH/60-98

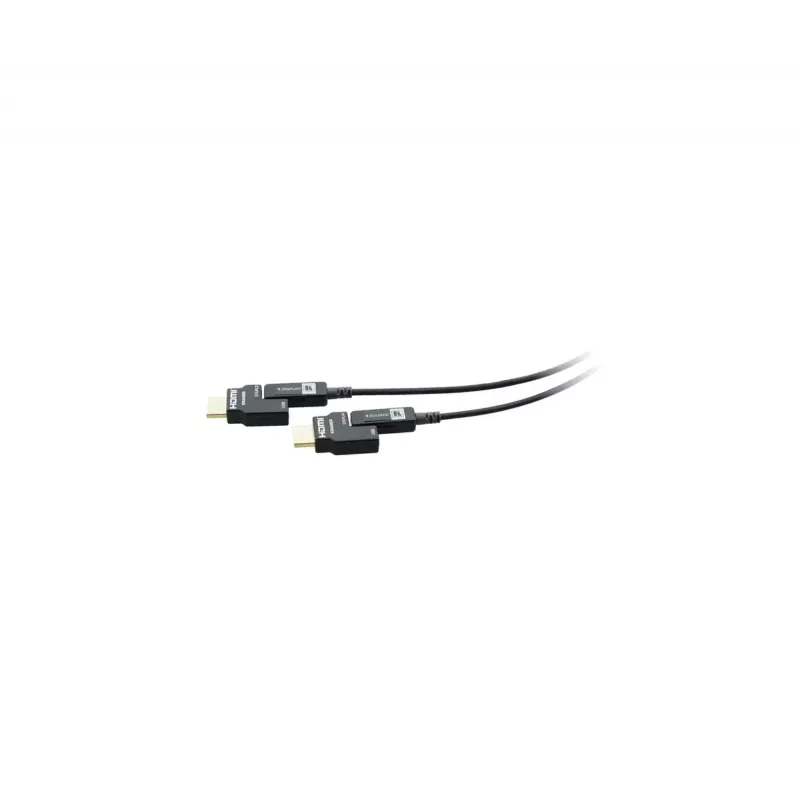

Kramer Electronics CLS-AOCH/60-98 is an active hybrid optical HDMI cable with micro-HDMI (Type D) ends and detachable full-size HDMI connectors, designed to transmit 4K video signals over long distances. The cable combines fiber and copper elements to deliver up to 4K@60Hz (4:4:4) video and supports HDCP 2.2, EDID and CEC. Its thin, flexible construction and small bending radius allow easier installation through conduits and tight spaces while reducing EMI and RFI interference. The jacket is low-smoke, halogen-free and the contacts are gold-plated for corrosion resistance and reliable connectivity.

Advantages

The CLS-AOCH/60-98 provides high data throughput (up to 18 Gbps) with embedded multi-channel audio support (PCM 8-channel, Dolby TrueHD and DTS-HD Master Audio) and transparent EDID/HDCP handling without signal attenuation. Its 3.4 mm diameter and 6 mm bending radius make it thinner and more flexible than standard copper or conventional optical HDMI cables, simplifying routing in professional AV installations. Reduced susceptibility to EMI and RFI preserves signal integrity in environments with electrical noise.

Suitable for

• Long-distance HDMI runs in AV installations (up to the cable's supported length)
• Connecting devices with Micro HDMI (Type D) ports to full-size HDMI equipment using detachable adapters
• Routing through conduits, walls, or narrow cable channels
• Professional displays, projectors and media players requiring 4K@60Hz video

Key specifications

• Supported resolution: up to 4K@60Hz (4:4:4), 4096 x 2160
• Data rate: up to 18 Gbps
• Audio: PCM 8-channel, Dolby TrueHD, DTS-HD Master Audio
• HDMI features: HDCP 2.2, EDID, CEC
• Connector type: HDMI Type D (Micro) with detachable HDMI connectors, male-to-male
• Cable diameter: 3.4 mm (0.13")
• Minimum bending radius: 6 mm (0.24")
• Jacket: low smoke, halogen-free
• Contacts: 24K gold-plated
• Length (product data): 30 m
• Colour: Black

How to use

Connect the micro-HDMI (Type D) ends to devices with Micro HDMI ports and attach the detachable full-size HDMI adapters if required by the receiving equipment. Ensure connectors are fully seated and locked where applicable. Route the cable through conduits or tight spaces, observing the minimum bending radius of 6 mm to avoid damaging the fiber elements. For best results, verify display settings for resolution and refresh rate and confirm HDCP/EDID negotiation between source and sink devices.

Recommendations

When installing, avoid sharp bends and repeated flexing near connectors. Use the detachable HDMI adapters only when needed and avoid exposing the cable to excessive heat or direct sunlight. Check device compatibility with HDCP 2.2 and set the output to 4K@60Hz (4:4:4) where supported to fully utilize the cable's capabilities.
