Cavo HDMI LANBERG CA-HDMI-30FB-0100-BK 10 m, HDMI Type-A 2.1, 48 Gbit/s, 144 Hz, HDR, ARC, Ethernet

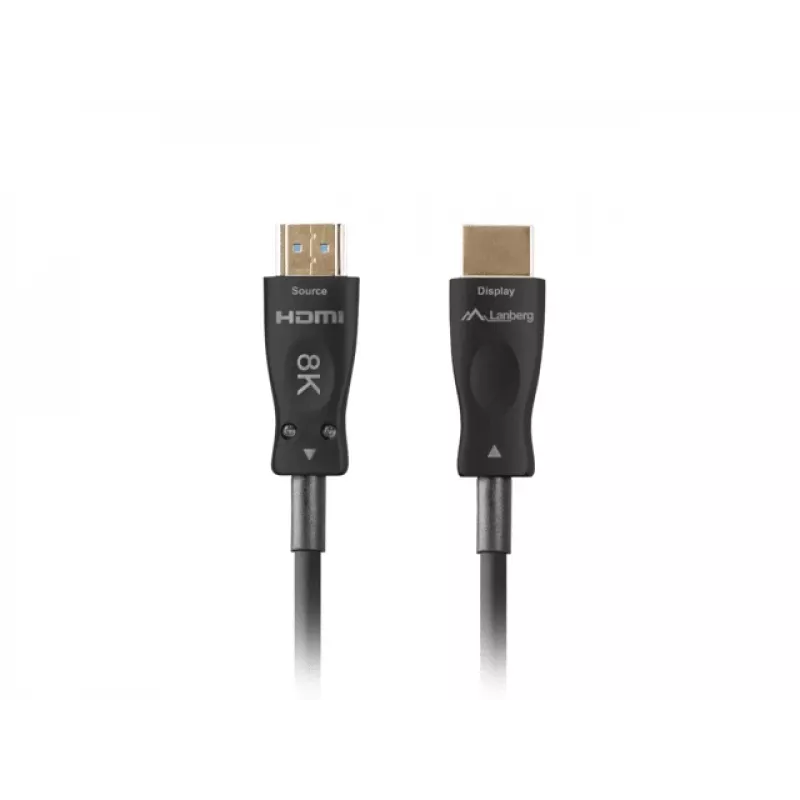

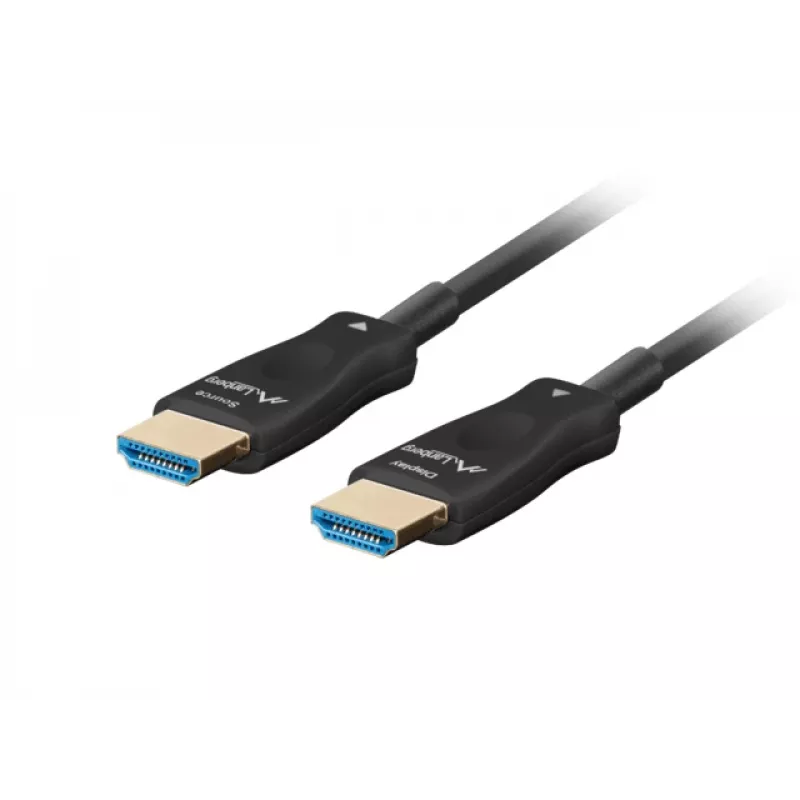

LANBERG CA-HDMI-30FB-0100-BK is a 10 m active optical HDMI 2.1 cable with HDMI Type A connectors and a 48 Gbit/s data rate. The cable uses optical fibre conductors to deliver lossless audio-video transmission over long distances while remaining thin and flexible for easier routing. Gold-plated contacts improve connectivity and durability. Note that the cable transmits video in one direction only; connect according to the directional markings on the plugs.

Advantages

Active optical construction provides immunity to electromagnetic interference and enables long-distance, lossless signal transfer. Support for the HDMI 2.1 (Ultra High Speed) standard allows transmission of up to 8K at 60 Hz and, with DSC (Display Stream Compression), up to 10K. Thin optical fibres simplify installation in tight spaces compared with traditional copper HDMI cables. Gold-plated contacts enhance contact stability and corrosion resistance.

Suitable for

• Connecting TVs and AV receivers over long distances
• Linking projectors in halls or conference rooms
• Connecting gaming consoles and high-resolution displays
• Professional AV installations where EMI resistance is required

Key specifications

• Length: 10 m
• Standard: HDMI 2.1 (Ultra High Speed)
• Maximum data rate: 48 Gbit/s
• Connectors: HDMI Type A — HDMI Type A
• Cable type: Active optical HDMI
• Colour: Black
• Directional: unidirectional (check plug markings)
• MPN: CA-HDMI-30FB-0100-BK
• EAN: 5901969440898

How to use

Check the directional markings on both plugs before installation. Connect the source device (player, console, PC) to the plug marked as the source/output and the display device (TV, projector, monitor) to the plug marked as the display/input. Avoid sharp bends near the connector ends and secure the cable along its route to prevent stress. No external power is required for typical setups beyond what the connected HDMI devices provide.

Recommendations

For reliable performance, route the cable away from strong mechanical pinch points and keep connectors free of dust. Verify that both connected devices support the desired resolution and refresh rate; enable DSC on compatible equipment if you require resolutions above 8K. Because the cable is unidirectional, double-check the plug orientation before powering devices.
