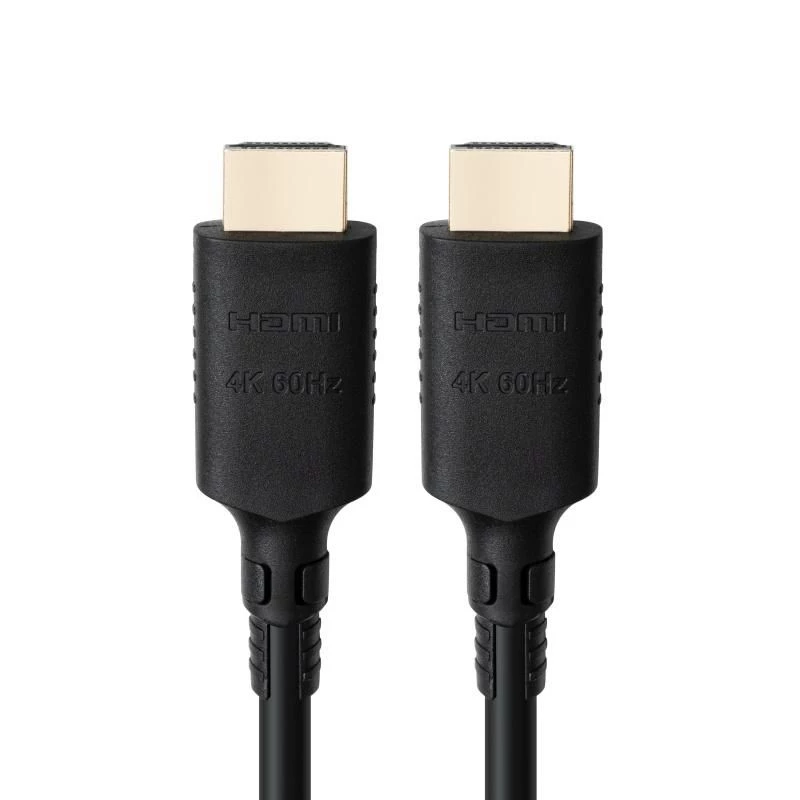

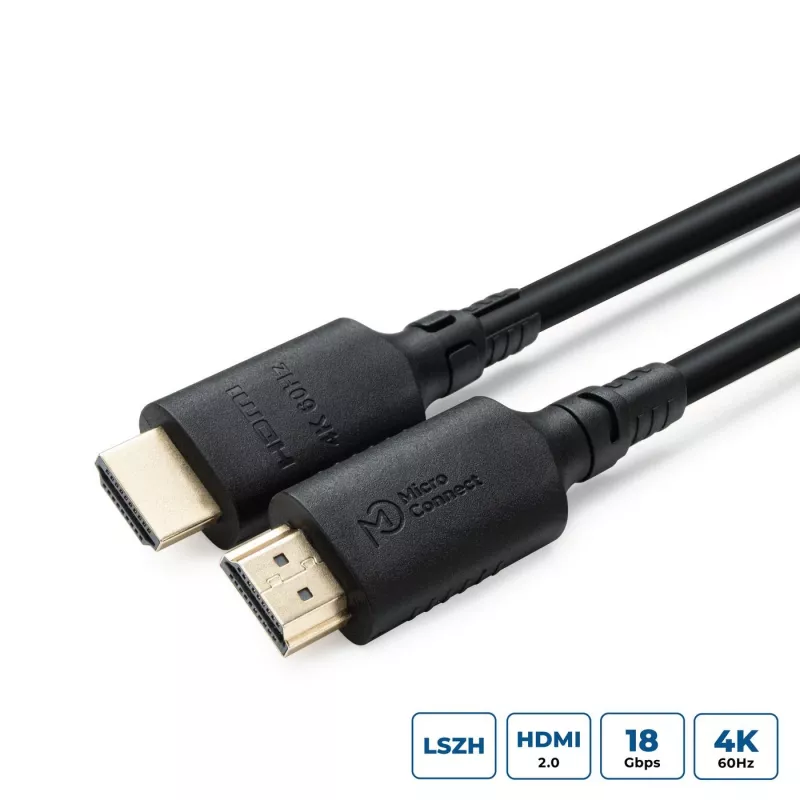

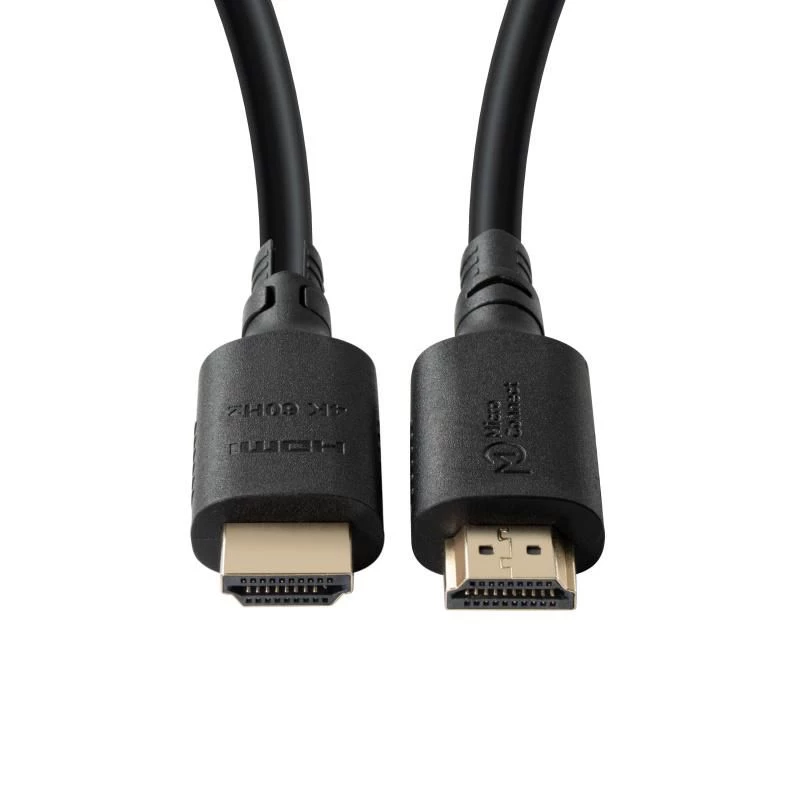

Cavo HDMI MicroConnect MC-HDM19193V2.0LSZH — 4K, V2.0, LSZH

MicroConnect MC-HDM19193V2.0LSZH is an HDMI cable designed for transmission of high-resolution video and multichannel audio between compatible devices. The cable supports HDMI 2.0 features and 4K resolution, and is fitted with a low-smoke zero-halogen (LSZH) jacket that reduces harmful emissions in enclosed or public spaces. It is intended for reliable signal transfer between TVs, monitors, projectors and AV receivers in home, office, or professional installations.

Advantages

The cable provides reliable 4K video transmission at HDMI 2.0 bandwidths with consistent signal integrity over typical consumer and professional distances. Its LSZH outer jacket minimizes smoke and toxic gases in case of fire, making it more suitable for installations where safety and material compliance are important. Gold-plated contacts and molded connectors ensure stable contact and corrosion resistance, while the cable construction reduces interference for clearer audio and video.

Suitable for

• Connecting 4K TVs and monitors to set-top boxes, Blu-ray players or AV receivers
• Linking laptops or desktop graphics outputs to external displays for presentations or video playback
• AV installations in offices, classrooms, or public buildings where LSZH materials are required
• Home entertainment systems that require high-definition video and multichannel audio

Key specifications

• Supported video resolution: up to 4K (3840 x 2160) at 60 Hz
• HDMI specification: HDMI 2.0 feature set (bandwidth and feature support typical of version 2.0)
• Audio support: multichannel digital audio formats
• Jacket material: Low-Smoke Zero-Halogen (LSZH)
• Connector type: standard HDMI connectors (Type A)
• Contact plating: corrosion-resistant (gold-plated) contacts
• Interference protection: shielded cable construction for reduced EMI

How to use

Connect one end of the HDMI cable to the HDMI output of the source device and the other end to the HDMI input of the display or AV device. Ensure both devices are powered off or in standby when connecting to avoid hot-plug issues, then power on the devices and select the correct HDMI input on the display. Use the display and source device settings to set the desired resolution and audio output. For best results, check that both devices support HDMI 2.0 features and 4K at 60 Hz.

Recommendations

For optimal performance, avoid sharp bends and kinks in the cable, keep it away from high-power electrical cables to reduce potential interference, and use cable lengths appropriate for the installation to preserve signal quality. In environments requiring reduced smoke and halogen-free materials, ensure the entire installation follows applicable building and safety codes.
