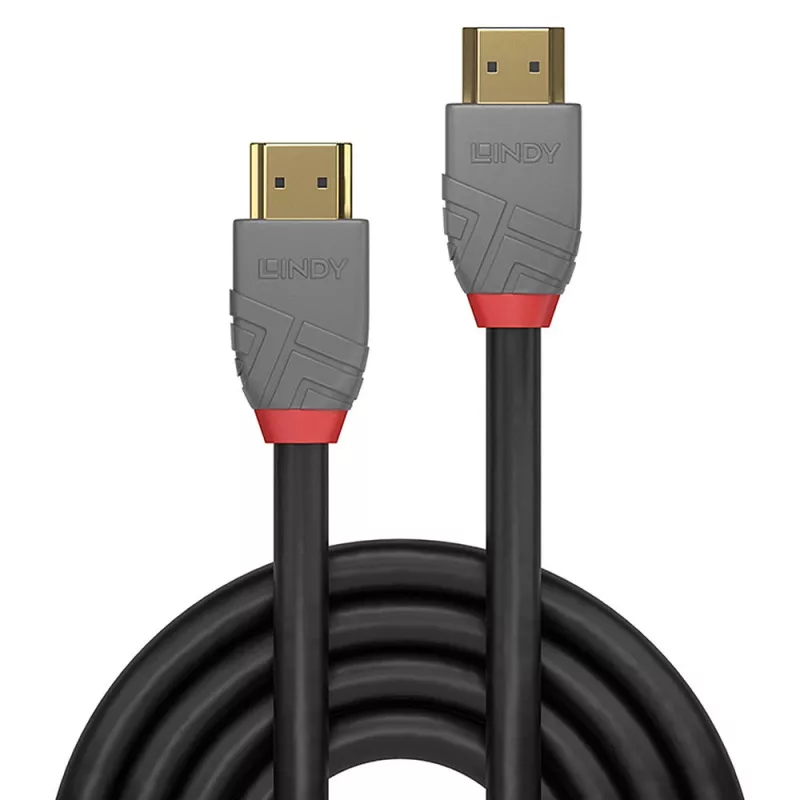

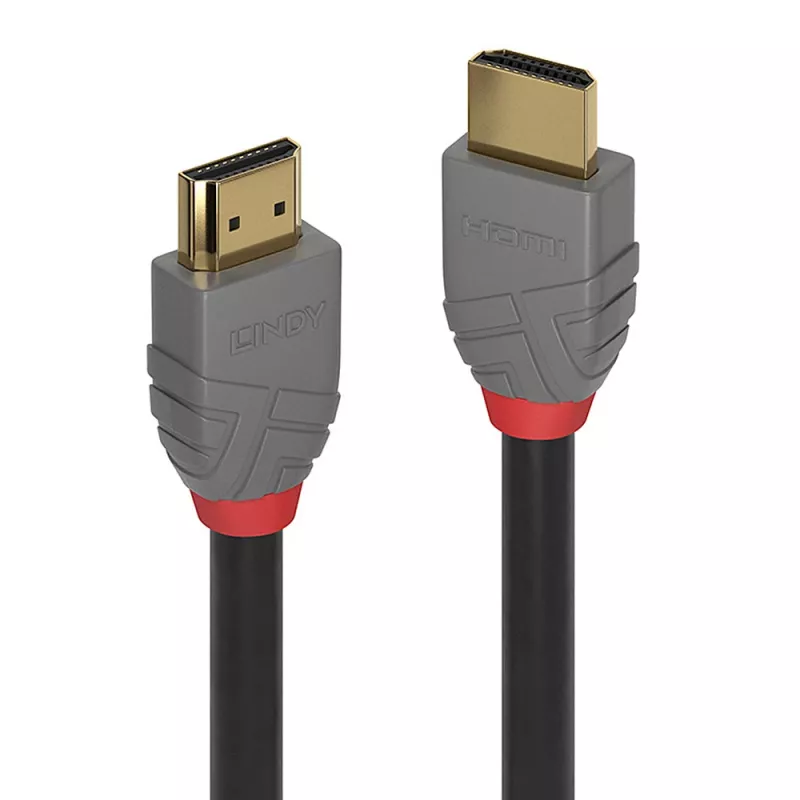

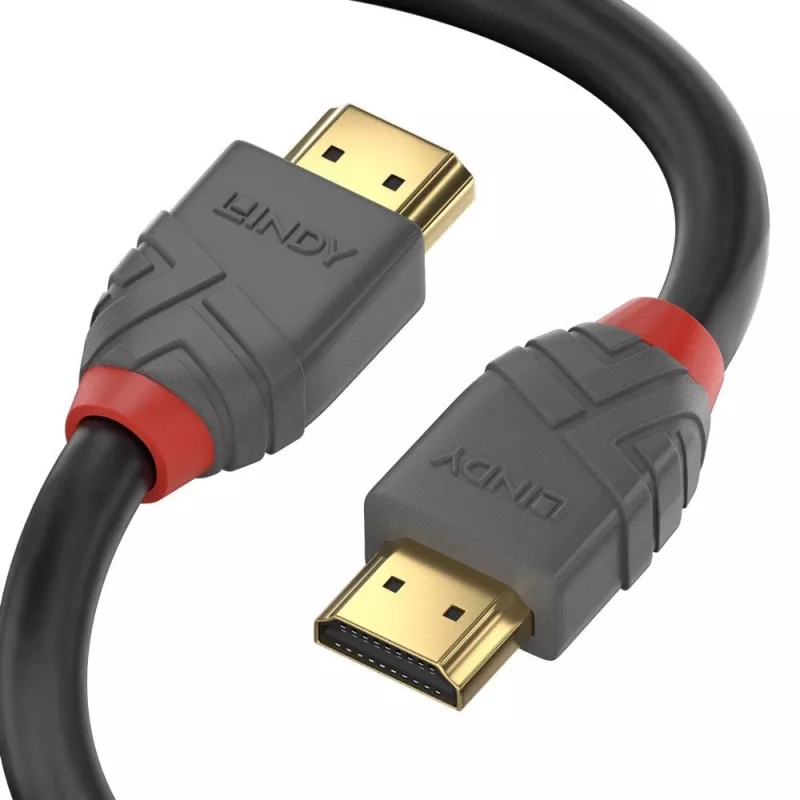

Cavo HDMI standard Lindy 20 m, Anthra Line

Anthra Line HDMI cables from Lindy’s Lines connectivity concept provide professional-grade HDMI connections for commercial AV and IT installations. These HDMI 2.0 cables offer support for UHD resolutions up to 4K 4096x2160@60Hz (4:2:0 8bit) and can carry up to 32-channel audio including Dolby® TrueHD. Available in lengths from 0.3 m to 20 m, Anthra Line cables cover short runs and extended distances.

Advantages

Anthra Line HDMI cables use 24 AWG copper conductors and triple shielding to ensure signal integrity and corrosion resistance. Gold-plated contacts and robust connectors provide reliable electrical contact and long-term performance. The cables support up to 10.2 Gbps bandwidth on lengths from 7.5 m to 20 m, making them suitable for a range of professional AV setups.

Key specifications

• Standard: HDMI 2.0
• Supported resolution: up to 4K 4096x2160@60Hz (4:2:0, 8bit)
• Audio: up to 32-channel audio, Dolby® TrueHD
• Conductors: 24 AWG copper
• Shielding: triple shielded
• Contacts: gold plated
• Bandwidth: up to 10.2 Gbps (for cable lengths 7.5 m–20 m)
• Available lengths: 0.3 m to 20 m

How to use

Connect one HDMI connector to the source device (for example a media player, PC or set-top box) and the other connector to the display or AV receiver. Ensure connectors are fully inserted and avoid sharp bends or tight loops to maintain signal quality. For longest runs, select a cable length appropriate for the installation and route the cable away from high-power electrical sources to reduce interference.

Recommendations

For reliable performance at 4K60 and multi-channel audio, verify device HDMI versions and choose the appropriate cable length. Replace damaged or excessively bent cables to prevent signal loss and ensure consistent AV performance.
