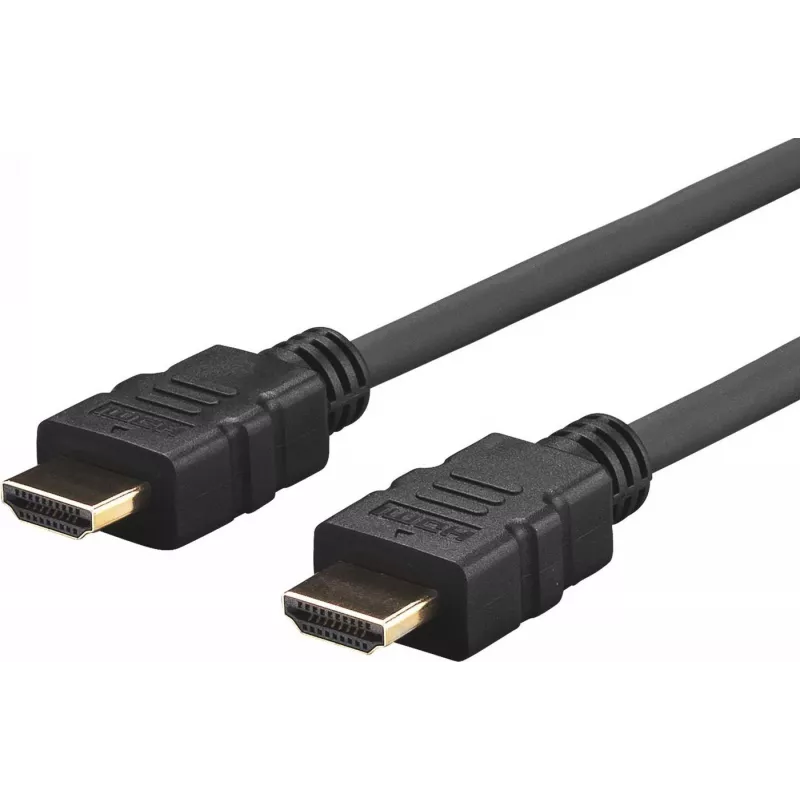

Cavo HDMI Vivolink PRO HDMI LSZH 10 m

The Vivolink PRO HDMI LSZH 10m is a high-performance HDMI 2.0 cable with Ethernet, offering an 18 Gbit/s data rate and support for resolutions up to 4K@60Hz with HDCP 2.2. It features HDMI Type A connectors on both ends, gold-plated contacts, ARC and CEC support, and an ultra-flexible Low Smoke Zero Halogen (LSZH) jacket suitable for professional and fixed installations.

Advantages

This 10 m HDMI cable provides high-speed signal transmission at 18 Gbit/s and reliable 4K@60Hz video performance with HDCP 2.2 compliance. The LSZH construction reduces smoke and toxic gas emission in case of fire. Gold-plated contacts improve connectivity and corrosion resistance, while the ultra-flexible design simplifies routing in confined or permanent installations. The cable includes Ethernet capability, ARC and CEC support for integrated audio and device control.

Suitable for

• Fixed AV installations in homes, offices, and professional environments
• Connecting 4K displays, projectors, AV receivers and distribution equipment
• Environments where low smoke and zero halogen materials are required

Key specifications

• Length: 10 m
• Standard: HDMI 2.0, 18 Gbit/s
• Resolution support: up to 4K@60Hz (4096 x 2160) with HDCP 2.2
• Connectors: HDMI Type A (both ends), gold-plated contacts
• Features: Ethernet, ARC, CEC
• Jacket: Low Smoke Zero Halogen (LSZH)
• Colour: Black
• Weight: 0.872 kg

How to use

Connect the HDMI Type A connectors to the HDMI output of the source device and the HDMI input of the display or AV equipment. Ensure both ends are fully inserted until secured by the locking mechanism. Use the cable for video and audio transmission, ARC-enabled return audio, and device control via CEC where supported. For portable devices with fragile connectors, add the Vivolink PRO HDMI FM-to-M cable (PROHDMIHDMFM2) as an adapter to protect the device interface when frequent plugging and unplugging is expected.

Recommendations

For permanent or semi-permanent installations, verify that connected AV splitters, switches or distribution units are compatible with HDMI locking connectors. Route the cable without sharp bends and avoid excessive tension to maintain signal integrity and prolong service life.
