Cavo HDMI Vivolink PROHDMIOP15AM 15 m connettore maschio connettore maschio 2.0 4096x2160

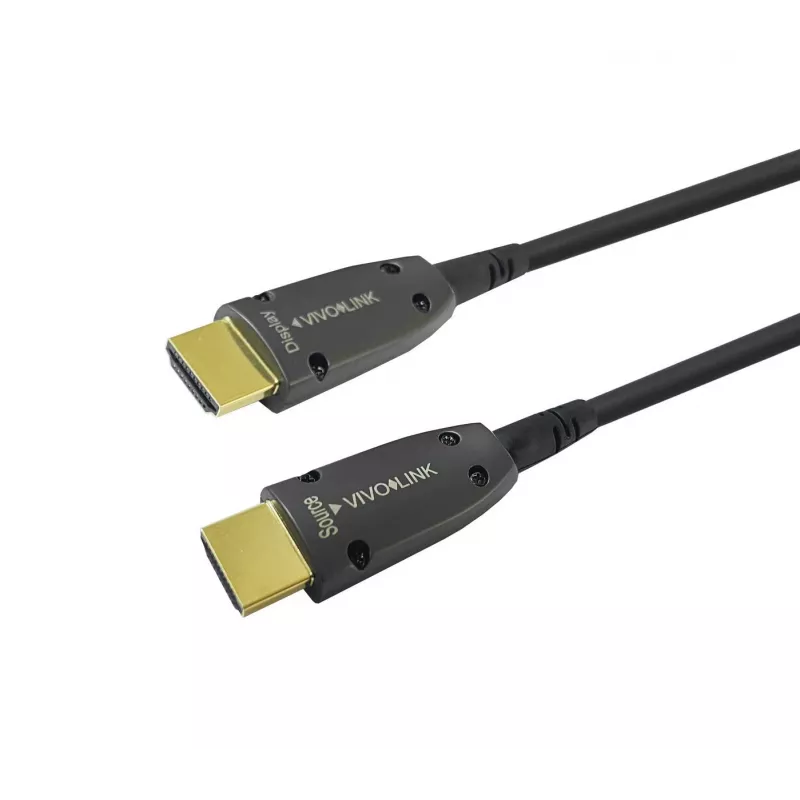

The Vivolink PROHDMIOP15AM is a 15 m HDMI 2.0 cable with straight male connectors on both ends, designed for high-resolution video and audio transmission up to 4096 x 2160 at 60 Hz with 18 Gbit/s bandwidth. The slim 4.0 mm cable integrates optical fiber and copper shielding, supports HDR10, HDCP 2.2, 3D and ARC, and is intended for installations requiring reliable signal quality over long distances.

Advantages

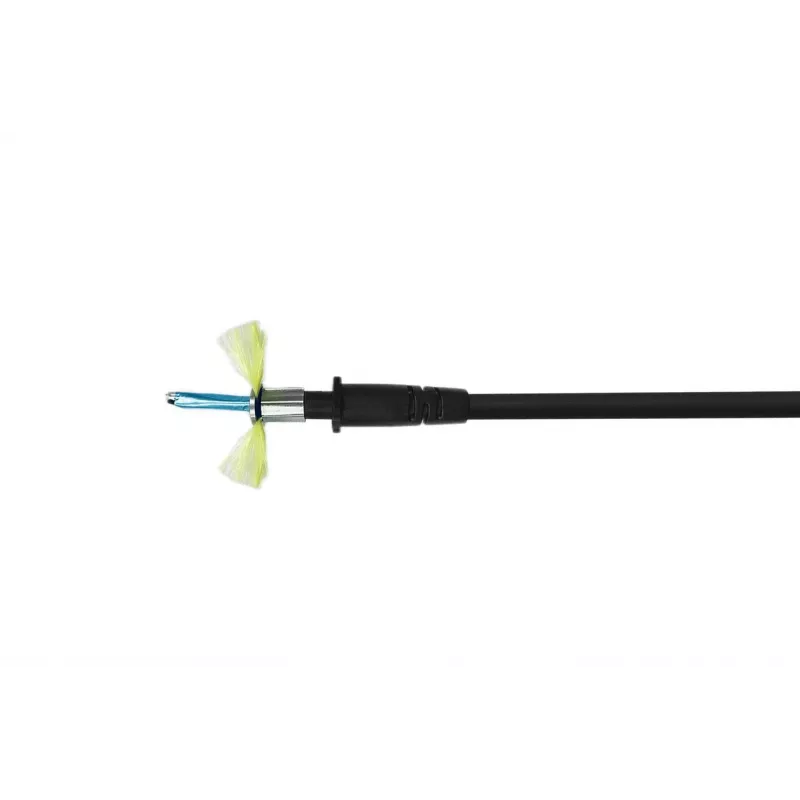

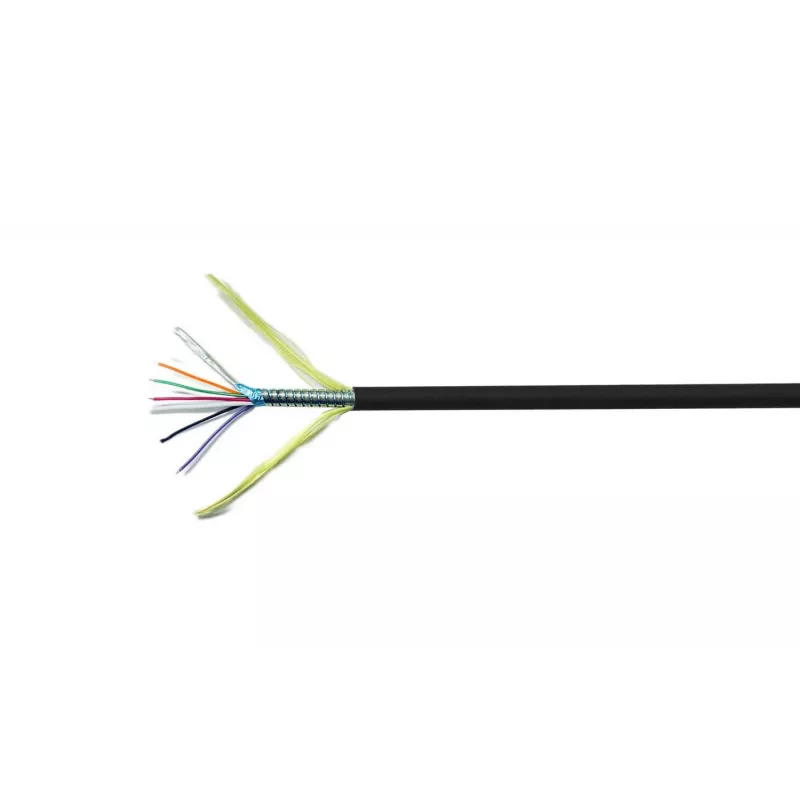

This HDMI cable combines an optical-fiber-based signal path with copper covering for shielding to provide low power consumption (0.25 W) and consistent 4K/60Hz performance. Reinforcements such as Kevlar filling, a molded metal cable head with a lock ring and gold-plated connector pins increase durability and ensure secure, reliable contact. The cable supports CEC and ARC and uses a high-quality optical fiber converter chipset for stable transmission.

Suitable for

• Home cinema systems requiring 4K/60Hz video over long cable runs
• Professional AV installations where HDCP 2.2 and HDR10 compatibility are needed
• Setups needing thin, flexible cabling with a small bend radius (down to 20 mm)
• Applications that demand robust tensile strength and pressure resistance (20 kg pull, 305 kg max load)

Key specifications

• Length: 15 m
• Connectors: Straight Male — Straight Male
• HDMI version: 2.0
• Resolution: up to 4096 x 2160 @ 60 Hz
• Bandwidth: 18 Gbit/s
• HDR: HDR10 (12-bit support noted in source)
• HDCP: 2.2
• Audio: DTS-HD Master Audio support
• Features: CEC, ARC, 3D
• Cable diameter: 4.0 mm (slim)
• Minimum bend radius: 20 mm; unlimited bends down to 20 mm
• Tensile strength (pull resistance): 20 kg
• Maximum pressure load on cable: 305 kg
• Power consumption: 0.25 W
• Working temperature: -20 °C to +60 °C
• Color: Black

How to use

Connect one straight male HDMI connector to the HDMI output of your source device (for example a Blu-ray player, game console, or AV receiver) and the other straight male connector to the HDMI input of your display (TV, projector, or monitor). Ensure connectors are fully seated and, if available, engage the lock ring to prevent accidental disconnection. Avoid sharp kinks when routing the cable; maintain a bend radius no smaller than 20 mm for reliable operation.

Recommendations

For best performance over long distances, verify that both source and display devices support HDMI 2.0/HDCP 2.2 and HDR10. When installing in confined spaces, route the slim 4.0 mm cable to minimize visible bulk and avoid repeated tight bending beyond the specified minimum radius.
