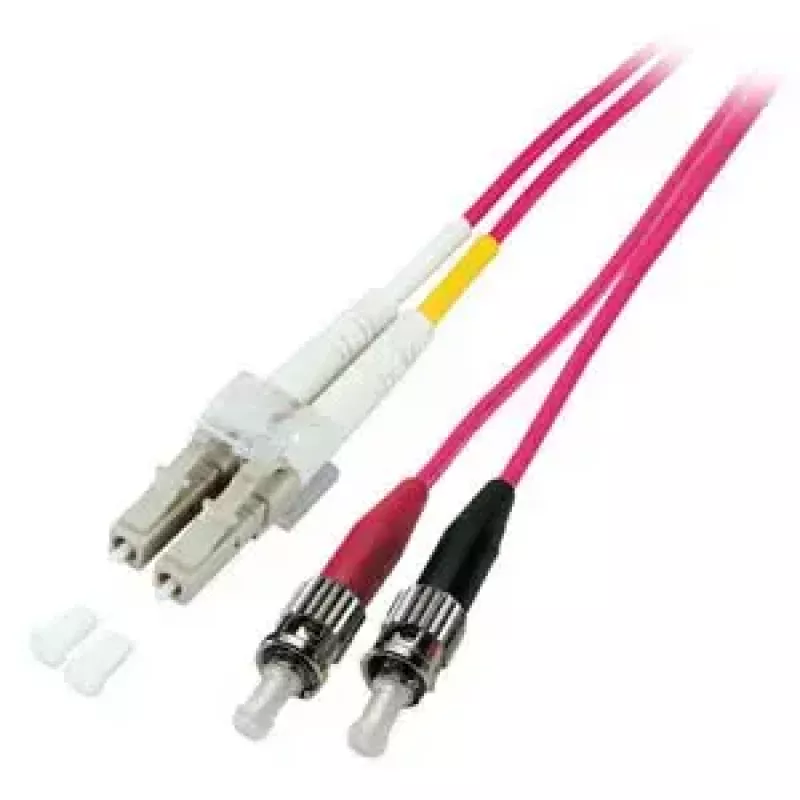

Cavo in fibra ottica EFB Elektronik LC - ST 50/125 15m

Duplex LC–ST multimode fibre optic cable, 50/125 µm core/cladding, OM4 grade, 15 m length, LSZH jacket. The EFB Elektronik LC - ST 50/125 15m cable provides a duplex connection for high-speed multimode links and is designed for reliable data transmission in structured cabling and network equipment interconnects.

Advantages

The OM4 multimode fibre enables higher bandwidth and improved modal dispersion performance compared with lower-grade multimode fibres, supporting greater data rates and longer reach within typical LAN and data centre environments. The LSZH (low smoke zero halogen) jacket reduces toxic fumes and smoke in the event of a fire. The LC to ST connector combination offers compatibility with equipment using LC plugs on one end and ST ports on the other, allowing flexible integration into existing network infrastructures.

Suitable for

• Data centre and server room patching
• Local area network (LAN) multimode links
• High-speed network equipment interconnects
• Structured cabling installations requiring duplex OM4 fibre

Key specifications

• Brand: EFB Elektronik
• Model / MPN: O0326.15
• EAN: 4049759063849
• Fibre type: Multimode OM4
• Core / cladding: 50/125 µm
• Length: 15 m
• Configuration: Duplex
• Connectors: LC (one end) – ST (other end)
• Jacket: LSZH (low smoke zero halogen)

How to use

Install the cable by plugging the LC connector into the LC port of the network device and the ST connector into the ST port of the corresponding device or patch panel. Ensure connectors are clean before insertion to maintain signal quality. Route the cable according to site cabling standards, avoiding sharp bends (maintain minimum bend radius) and mechanical stress. For permanent installations, secure the cable with appropriate clips or cable management accessories.

Recommendations

For best performance, use OM4 duplex fibre for multimode links up to the distances supported by your equipment and follow manufacturer cleaning and handling procedures for fibre connectors. Avoid exceeding the cable's minimum bend radius and protect connectors with dust caps when not in use.
