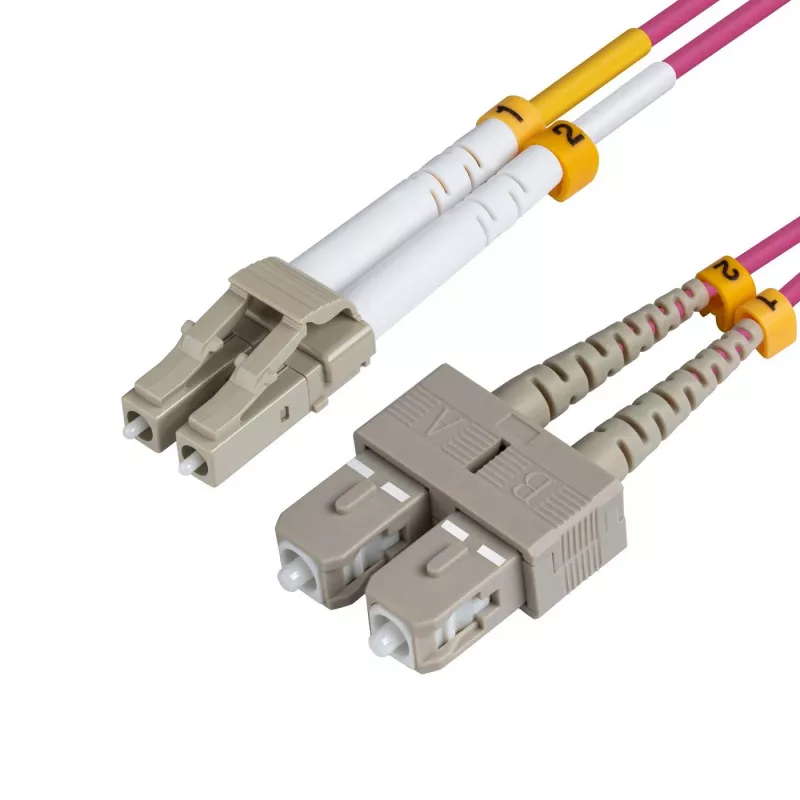

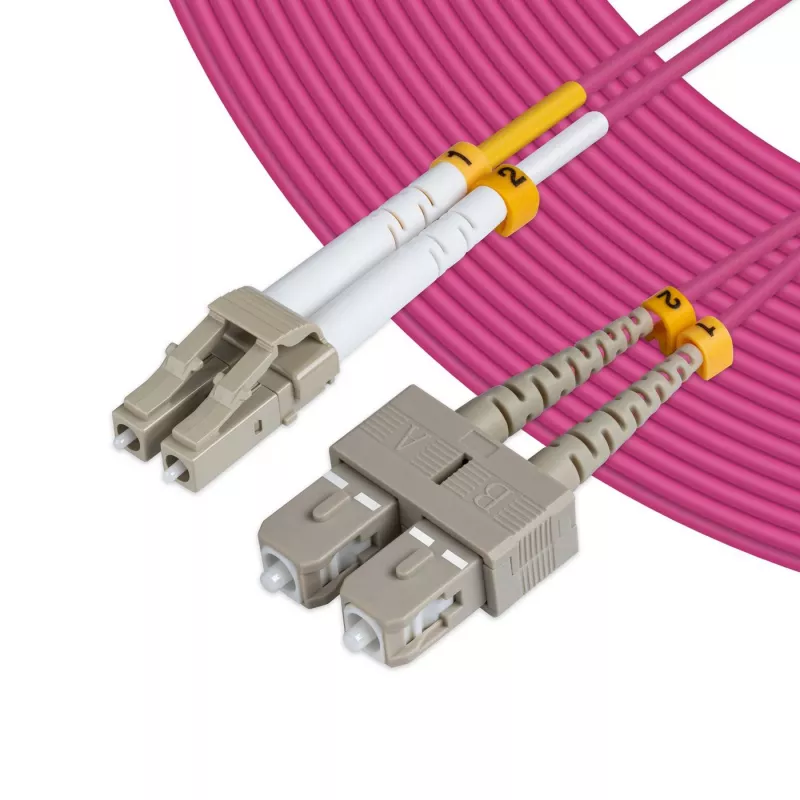

Cavo in fibra ottica/InfiniBand Microconnect FIB422007P 7 m LC SC viola

The Microconnect FIB422007P is a 7 m OM4 multimode fibre optic patch cord with LC and SC connectors and a 50/125 µm core/cladding. Designed for full-duplex high-speed links, this violet LSZH cable supports 10G, 40G and 100G Ethernet applications and is compatible with SFP+ and other multimode transceivers. The OM4 specification offers improved modal bandwidth and performance for short to medium range data centre and enterprise networks.

Advantages

This OM4 50/125 µm multimode cable is bend-insensitive, which reduces attenuation when the cable is bent or twisted and simplifies installation and maintenance. Using LSZH jacket material, the patch cord meets common industry standards for low-smoke, halogen-free performance and provides reliable, repeatable optical connections via LC and SC terminated ends.

Suitable for

• 10G Ethernet connections (10G SR, 10G LRM)
• 40G and 100G short-reach multimode links
• Connections between switches, servers and SFP+/multimode transceivers
• Data centre and enterprise fibre patch panels

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB422007P
• Type: OM4 multimode fibre, bend-insensitive (50/125 µm)
• Length: 7 m
• Connectors: LC — SC (full duplex)
• Jacket: LSZH
• Colour: Violet
• Weight: 0.05 kg
• EAN: 5712505826201

How to use

Prepare fibre ports by ensuring connectors and adapters are clean and free of dust. Plug the LC and SC connectors into corresponding transceivers or panel adapters until they click into place, maintaining gentle bends and avoiding sharp kinks. Use appropriate cable management in racks or trays to maintain bend radius and protect the LSZH jacket. Test the link with a light source and power meter or appropriate fibre tester to verify end-to-end attenuation and continuity.

Recommendations

For optimal performance, keep the cable within the recommended minimum bend radius, avoid tight loops, and clean connectors before each connection. Use OM4 multimode cabling for short- to medium-range high-speed links and match transmitter/receiver types (e.g., 10G SR, SFP+) to ensure compatibility.
