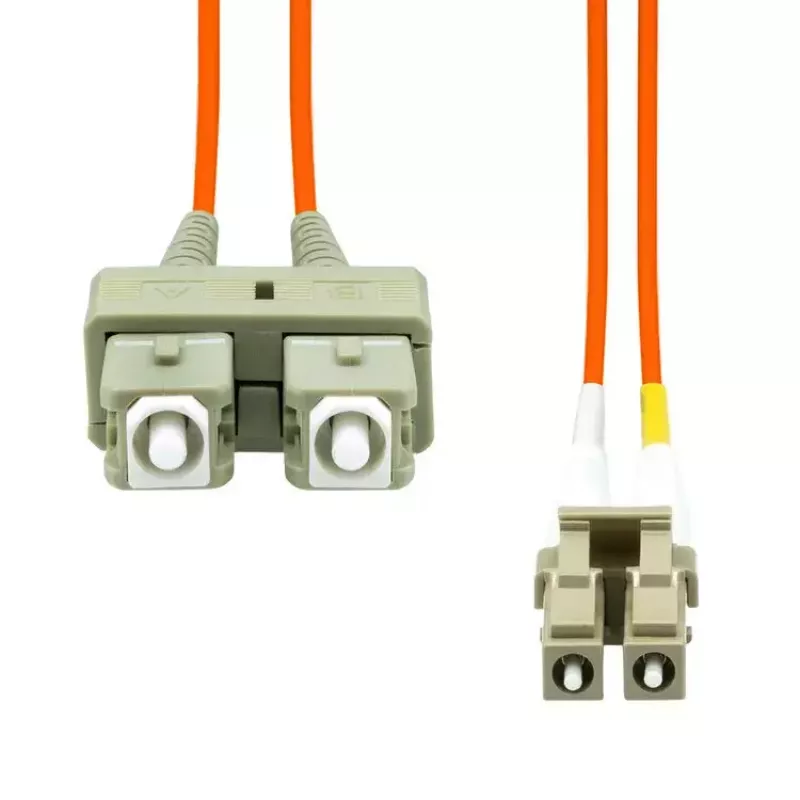

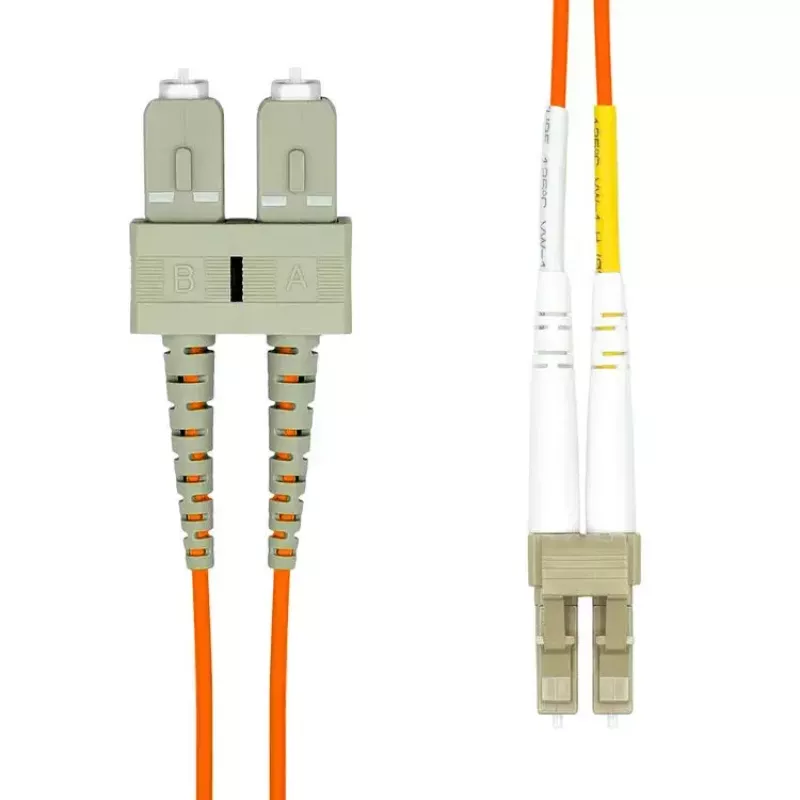

Cavo in fibra ottica OM1 duplex MM ProXtend FO-LCSCOM1D-007 7 m

The ProXtend LC‑SC UPC OM1 Duplex MM Fiber Cable FO‑LCSCOM1D‑007 is a 7 m multimode duplex patch cable with a 62.5 µm glass core and LSZH jacket. It provides full‑duplex single‑ and multimode communication over short to medium distances, designed for reliable high‑speed data transmission in local area networks and structured cabling installations. The cable is specified to operate in environments with temperatures from -20 °C to 70 °C.

Advantages

This OM1 duplex fiber cable combines LC and SC male connectors with a transparent glass core and LSZH outer jacket for safety in confined spaces. The 62.5 µm core supports standard multimode links and full‑duplex transmission, while the LSZH sheath reduces smoke and toxic gas emission in case of fire. The 7 m length offers flexibility for patching between racks, switches and active equipment.

Suitable for

• Patch connections in data centers and server rooms
• LAN backbone and horizontal multimode links
• Connecting switches, routers and transceivers with LC and SC ports
• Structured cabling within buildings and risers

Key specifications

• Model: FO‑LCSCOM1D‑007
• Type: Duplex multimode fiber (OM1)
• Core diameter: 62.5 µm
• Length: 7 m
• Connectors: LC (male) to SC (male), UPC polish
• Jacket: LSZH
• Operating temperature: -20 °C to 70 °C
• Duplex: Full duplex

How to use

Route the cable between devices ensuring connector orientation matches the LC and SC ports. Insert the LC connector into the LC port and the SC connector into the SC port until they click into place. Avoid sharp bends and excessive tension; maintain the recommended minimum bend radius for multimode fiber. For best performance, keep connectors clean and protected when not in use.

Recommendations

Use this OM1 duplex cable for short to medium multimode links and internal patching; for longer multimode distances or higher bandwidth requirements consider OM3/OM4 or singlemode alternatives.
