Cavo InLine 27662B Serial Attached SCSI (SAS) 0,75 m 24 Gbit/s nero, blu, grigio

Reliable high-speed data transfer:Supports PCIe Gen5 with up to 24 Gb/s per lane (per channel) – ideal for modern server and storage applications.
Flexible system integration:MCIO x4 connector (38-pin) on both sides for compact connections between SSDs, controllers or backplanes.
Industry-compatible and versatile:Compatible with SAS 3.0/4.0, PCIe Gen3/4/5 and Ethernet up to 56GT/s PAM4.
Optimised for data centres and OEM solutions:Particularly suitable for servers, industrial PCs and embedded applications with high bandwidth.
Rugged design in industrial quality:Black, shielded PCIe cable for stable signal transmission and reliable performance.

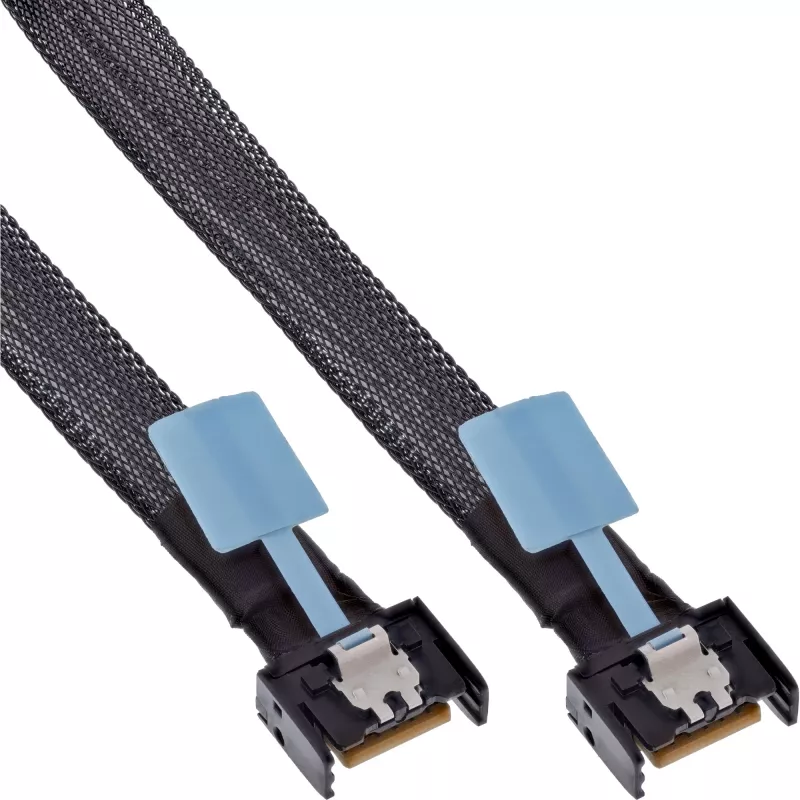

The InLine® MCIO x4 cables have been specially developed for professional high-speed applications in the server, storage and industrial network infrastructure sectors. With MCIO x4 connectors (38-pin) on both sides, the cables support transmission standards such as PCIe Gen3, Gen4 and Gen5 as well as SAS 3.0/4.0 and Ethernet protocols up to 56GT/s PAM4. This makes them the ideal solution for applications with the highest requirements in terms of bandwidth, signal quality and system compatibility.Thanks to the compact form factor, the cables are suitable for space-saving installations in rack systems as well as for use in embedded systems and industrial control units. The high-quality workmanship and solid shielding ensure reliable, loss-free data transmission, even in demanding environments.Whether in modern data centres, OEM projects or for system integrators: InLine®s MCIO cables enable stable connections between SSDs, backplanes, add-on cards and mainboards. They are the ideal choice for anyone who needs maximum performance with minimum space requirements.

Plug connection: MCIO x4 connector (38-pin) to MCIO x4 connector
Protocol support: PCIe Gen3, Gen4, Gen5; SAS 3.0/4.0; Ethernet 25G/56GT/s PAM4
Colour: Black
Cable type: Mini Cool Edge IO (MCIO)
Application: Data centres, industrial PCs, OEM systems, network backplanes

InLine 27662B. Cable length: 0.75 m, Connector 1: MCIO x4 (38-pin), Connector 2: MCIO x4 (38-pin). Compliance certificates: CE. Package length: 18.5 cm, Package depth: 185 mm, Package height: 20 mm. Country of origin: Taiwan, Package volume: 900 cm³

How to use

Connect each end of the cable to compatible MCIO x4 ports on devices such as host controllers, backplanes or SSD adapters. Ensure connectors are aligned and fully seated to maintain shielding and signal integrity. The cable is intended for internal system routing in servers, racks or embedded enclosures; avoid sharp bends and maintain recommended bend radius to prevent mechanical stress and signal degradation.

Recommendations

Use the InLine MCIO x4 cable in environments where compact, shielded, high-bandwidth interconnects are required. For best performance, pair with devices that explicitly support the listed protocols (PCIe Gen3–Gen5, SAS 3.0/4.0, Ethernet PAM4) and follow system manufacturer guidelines for cable routing and grounding.
