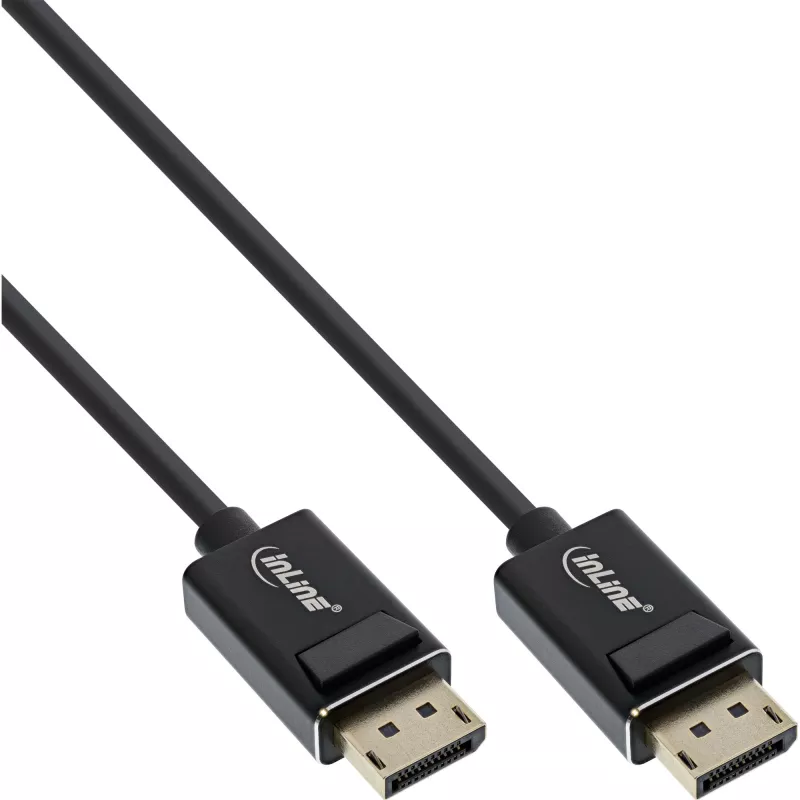

Cavo InLine DisplayPort 2.0, 8K4K UHBR, nero, contatti placcati oro, 3m

Cavo InLine DisplayPort 2.0, 8K4K UHBR, nero, contatti placcati oro, 3m
Cavo InLine DisplayPort 2.0, 8K4K UHBR, nero, contatti placcati oro, 3m
Cavo InLine DisplayPort 2.0, 8K4K UHBR, nero, contatti placcati oro, 3m
Cavo InLine DisplayPort 2.0, 8K4K UHBR, nero, contatti placcati oro, 3m
28,25 €
The InLine DisplayPort 2.0 cable (3 m) enables connection of monitors and displays using the latest DisplayPort 2.0 standard. It supports UHBR transmission for high-resolution output, is UL certified, and has gold-plated contacts and a black jacket for reliable connectivity and durability.Advantages... Leggi di più
Stock 400 Codice 312561 Marca INLINE Modello 15403P Garanzia 2 anni

Spedizioni e resi

Consegna stimata Mercoledì, Ottobre 21
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

The InLine DisplayPort 2.0 cable (3 m) enables connection of monitors and displays using the latest DisplayPort 2.0 standard. It supports UHBR transmission for high-resolution output, is UL certified, and has gold-plated contacts and a black jacket for reliable connectivity and durability.

Advantages

The cable supports 8K and 4K resolutions with UHBR technology, offers gold-plated contacts to reduce corrosion and improve signal quality, and provides a 3 m length for flexible device placement. UL certification ensures compliance with safety and quality standards, and the cable ships in a hanging box for easy storage and retail presentation.

Suitable for

  • Connecting high-resolution monitors and displays
  • Gaming PCs and consoles with DisplayPort outputs
  • Workstations and multi-monitor setups
  • Home theater and professional video applications

Key specifications

  • Standard: DisplayPort 2.0
  • Length: 3 m
  • Connectors: DisplayPort to DisplayPort
  • Contact plating: Gold-plated contacts
  • Colour: Black
  • Certifications: UL certified
  • MPN: 15403P
  • EAN: 4043718301584

How to use

Connect one end of the DisplayPort 2.0 cable to the DisplayPort output on your source device (PC, laptop, or console) and the other end to the DisplayPort input on your monitor or display. Ensure both devices are powered off or follow manufacturer hot-plug guidelines before connecting. After connection, power on the devices and configure display settings in the operating system or monitor menu to enable the desired resolution and refresh rate.

Recommendations

For optimal performance at 8K or high refresh rates, use the cable with devices that explicitly support DisplayPort 2.0 and UHBR modes. Avoid sharp bends and excessive tension on the cable; keep connectors free of dust and secure connections firmly but without excessive force.
Punti salienti
  • DisplayPort 2.0 Ultra High Bit Rate 10 (UHBR10) cable
  • Transfer of Audio and Video signal
  • Audio signal: 1–8 channels, 16 or 24-bit linear PCM, 32–192 kHz sampling rate, maximum bitrate 36,864 kbit/s (4,608 kB/s)
  • Data transfer rate: 40Gb/s
  • Resolutions up to: 5120x2880@60Hz, 7680×4320@60Hz, 3840×2160@120Hz 4:4:4 8bit, 3840×2160@144Hz 4:2:2 8bit
  • Support HDCP 2.2, DPCP, 3D, Dolby MAT, DTS HD, HDR10, DSC1.2
  • Support multi-streaming / MST
  • Aluminium DisplayPort plug with gold plated contacts
  • Double shielded cable
  • 3 m
  • DisplayPort Straight Male
  • DisplayPort Straight Male
  • DisplayPort version: 2.0
  • 7680 x 4320 pixels 40 Gbit/s
  • HDCP Display Stream Compression (DSC)
  • Black
Specifiche
Altezza
12 mm
Altezza confezione
50 mm
Certificazione
UL
Colore del prodotto
Black
Connettore 1
DisplayPort
Connettore 1 maschio/femmina
Male
Connettore 2
DisplayPort
Connettore 2 maschio/femmina
Male
Display Stream Compression (DSC)
Yes
DisplayPort Content Protection (DPCP)
Yes
Formato connettore 1
Straight
Formato connettore 2
Straight
HDCP
Yes
Larghezza
21 mm
Larghezza confezione
106 mm
Lunghezza del cavo
3 m
Multi-Stream Transport (MST)
Yes
Peso
198 g
Peso confezione
227 g
Placcatura dei contatti del connettore
Gold
Profondità
3000 mm
Profondità confezione
200 mm
Quantità per confezione
1 pc(s)
Risoluzione massima
7680 x 4320 pixels
Risoluzioni grafiche supportate
3840 x 2160, 5120 x 2880, 7860 x 4320
Sezione del conduttore (AWG)
28
Tipo di cavo
Round cable
Tipo di imballaggio

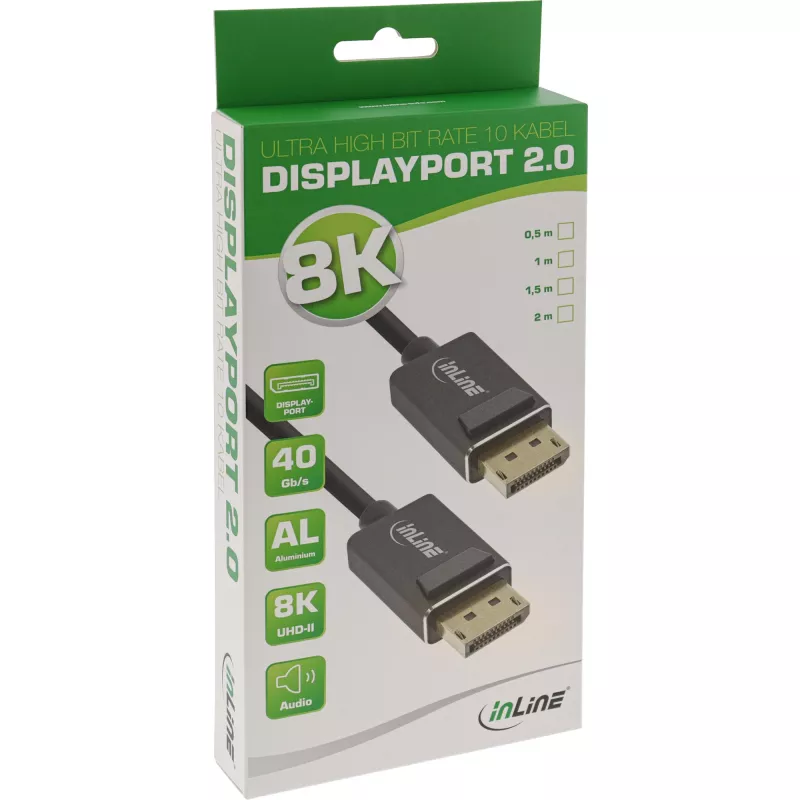

Hanging box
Velocità di trasferimento dati
40 Gbit/s
Versione Display Stream Compression (DSC)
1.2
Versione DisplayPort
2.0
Versione HDCP
2.2
