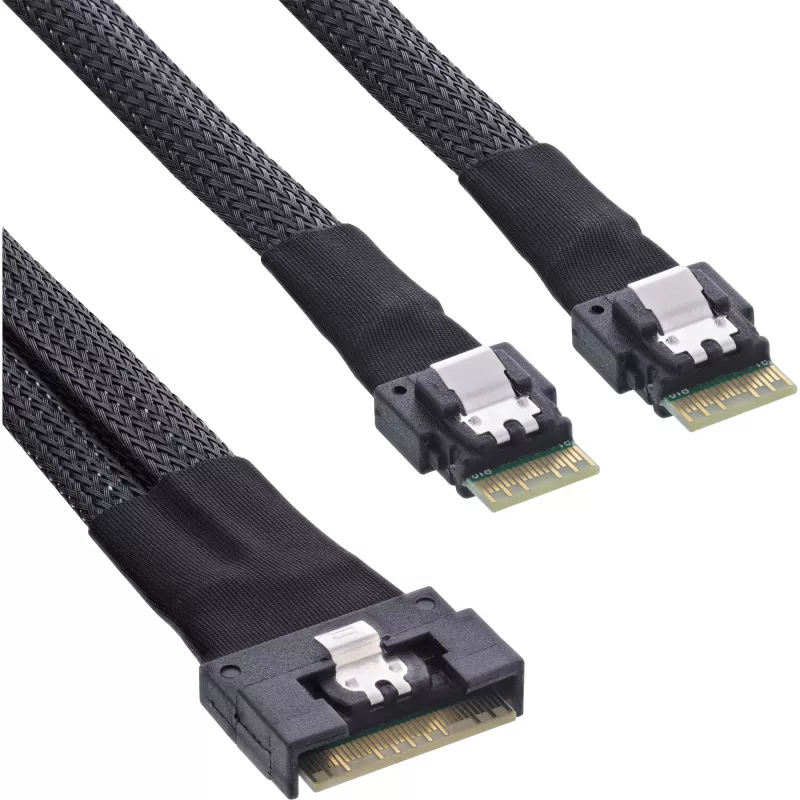

Cavo InLine SAS slim, SFF-8654 8i a 2x SFF-8654 4i, 0,5 m

High-quality Slim SAS cablefor connecting internal SAS devices to RAID controllers, JBOD or DAS
Plug with locking clipfor a secure connection and reliable signal transmission
Compliant with SAS 4.0 SFF-8654 specifications, ideal for use in professional IT environments
Supports up to 24Gb/s per channelfor high-performance data transfers in high-speed networks
Rugged design for durable use in server and data center environments

The InLine® Slim SAS cablehas been specially developed for professional use in server and storage solutions. It connects SAS hard disksor SSDs with HBA cards, RAID controllers, JBOD, DAS or SANS systemsand ensures reliable and high-performance data transfer.
Thanks to the Slim SAS 8i SFF-8654 to 2x Slim SAS 4i SFF-8654 connector, it is ideal for the internal connection of SAS storage components. The integrated locking mechanismensures a secure hold, even in demanding IT environments.
With up to 24Gb/s per channel, the cable enables maximum bandwidth and fast transfer speeds– perfect for high-performance servers and data center applications. The SAS 4.0 SFF-8654 complianceguarantees compatibility with modern SAS storage solutions.
Technical specifications

Slim SAS 8i connector (SFF-8654) to 2x Slim SAS 4i connector (SFF-8654)
Supports SAS 4.0 standard
Data transfer rate: up to 24Gb/s per channel

InLine Slim SAS cable, SFF-8654 8i to 2x SFF-8654 4i, 0.5m. Cable length: 0.5 m, Connector 1: SFF-8654 8i, Connector 2: 2x SFF-8654 4i. Dimensions (WxDxH): 28 x 500 x 8 mm. Package width: 160 mm, Package depth: 185 mm, Package height: 28 mm. Country of origin: Germany

How to use

Identify the SAS connectors on the controller card and the drive, align the keyed connector, and insert the cable firmly until it seats. Route the slim cable to avoid sharp bends and keep it clear of fans and heat sources to maintain airflow. For secure installations, ensure connectors are fully engaged and supported to prevent strain on ports during equipment movement.

Recommendations

Use this internal SAS cable for short to moderate internal connections inside servers and storage enclosures. Verify connector compatibility with your controller and drives before installation and avoid excessive cable length or tight bends that could affect signal quality.
