InLine Cavo null modem, DB9 femmina/femmina, clippato, beige, 2 m

The InLine Null Modem Cable enables data transmission between two PCs, notebooks or servers via their serial COM ports. It features a Sub-D 9-pin socket to Sub-D 9-pin socket connection with lockable connectors and a null modem configuration. The cable is suitable for connection, extension or customisation of RS232, RS422, RS485 and similar interfaces.

Key features

• Null modem cable for data transmission between two PCs/notebooks or servers via serial COM ports

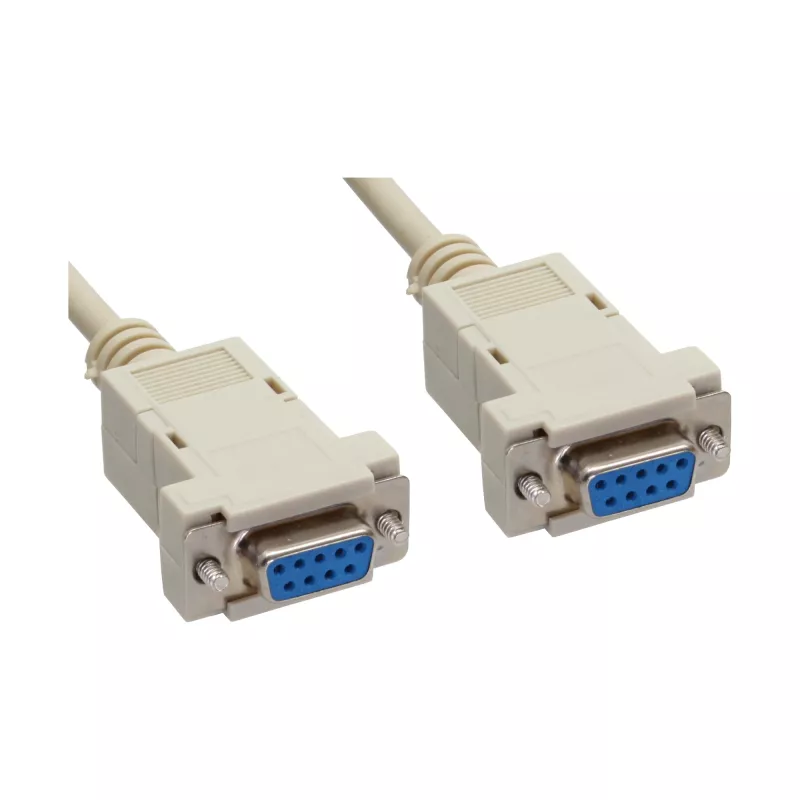

• Sub-D 9-pin socket to Sub-D 9-pin socket
• Lockable connectors

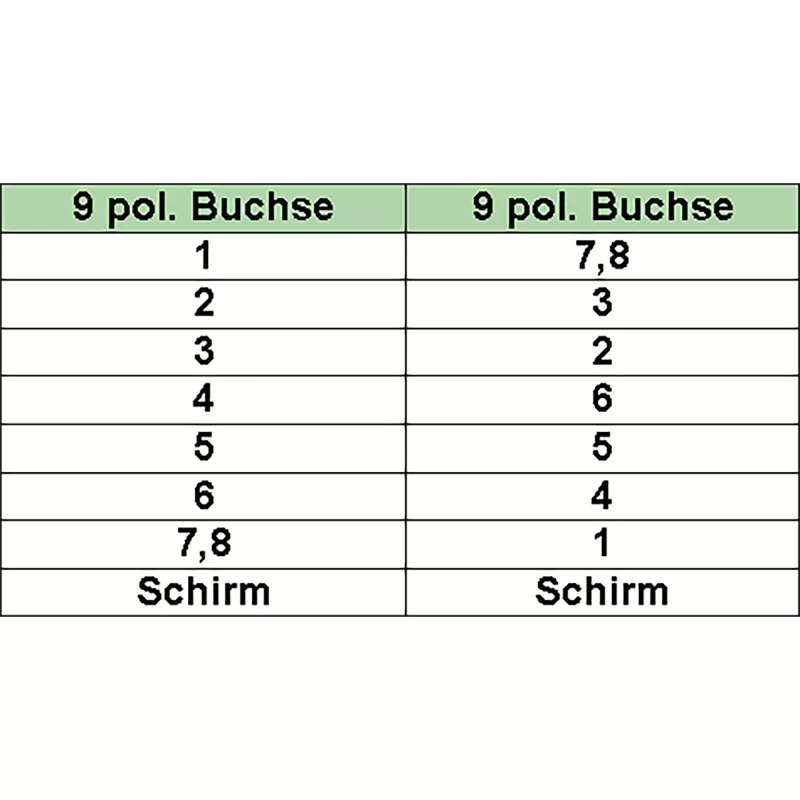

• Null modem configuration: Pin 1-7+8; 2-3; 3-2; 4-6; 5-5; 6-4; 7+8-1; Shield-Shield
• For connection, extension or customisation of RS232, RS422, RS485 and similar interfaces

Specifications

• Brand: InLine
• MPN: 12222L
• Product colour: Beige
• Length: 2 m
• Side A: 9pin female
• Side B: 9pin female
• Variant: Clipped
• Outer diameter: 5.4 mm
• Signal: Data
