Cavo ottico attivo USB-C a USB-C InLine 35797I — USB 3.2 Gen 2, 8K@60Hz, 60W, 7,5 m

Maximum transmission quality up to 8K@60Hz:Supports modern video formats such as 8K@60Hz or 4K@120Hz – perfect for professional AV applications with the highest demands.
Adaptive 5-fibre structure:One of the OM3 fibres is adaptively usable (DP or USB) – for flexible switching between pure video transmission or video with USB data channel.
Active optical hybrid technology (AOC):Combination of copper and fibre optic cables for loss-free transmission over long distances without an external power supply or repeater.
DisplayPort Alt Mode via USB-C with HDR support:Compatible with DP Alt Mode (4-lane/2-lane) – including HDR10, HDCP 2.2, EDID and 3D support.
Robust construction for professional applications:Metal housing, flexible cable sheath, OM3 fibres and copper conductors for durability in AV, industrial or test environments.

The InLine® USB 3.2 Gen.2 AOC cable from the 3579xI series is the high-end solution for demanding AV, data and docking applications with variable use. The unique adaptive fibre architecture allows either the use of all four lanes for DisplayPort 2.1 or a combination of 2x DP + 2x USB 3.2 (10 Gbps), depending on requirements. This enables resolutions of up to 8K@60Hz or 4K@120Hz, or alternatively 4K@60Hz with simultaneous high-speed data transfer. Active optical transmission (AOC) also allows longer cable lengths to be used without any loss of quality or external power supply.
Support for HDR10, HDCP 2.2, EDID, 3D and USB Power Delivery (up to 60W) round off the profile – ideal for modern AV systems, high-resolution displays, docking solutions and technical test environments.

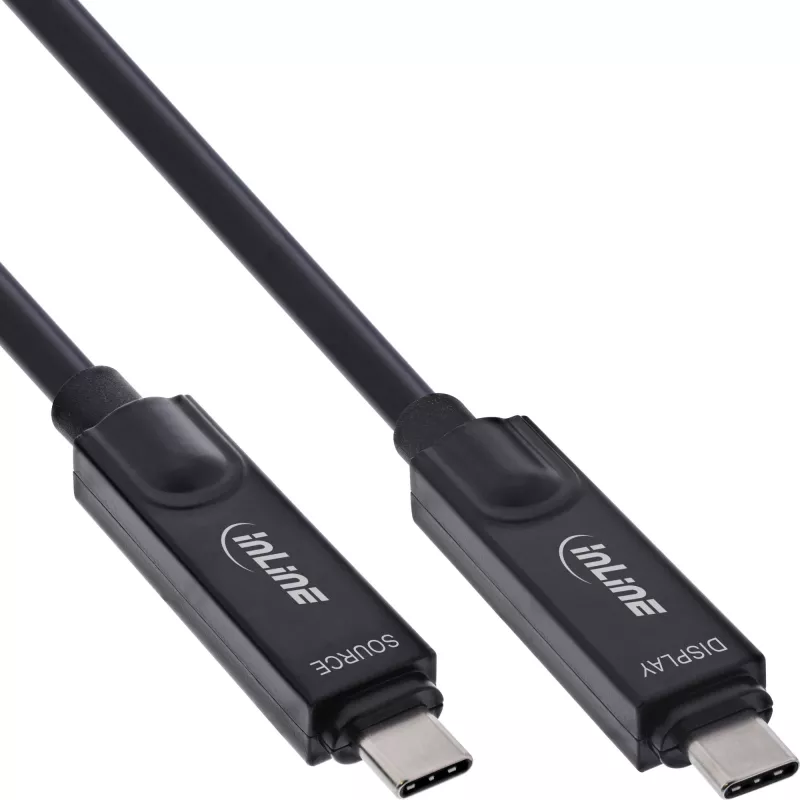

USB-C plug to USB-C plug
Supports DP Alt Mode (4-lane or 2-lane)
Supports HDR10, HDCP 2.2, EDID, 3D
Data transfer: up to 10 Gb/s (USB 3.2 in 2-lane mode), 480 Mb/s (USB 2.0 at full video utilisation)
Video resolution: up to 8K@ 60Hz or 4K@120Hz
Power delivery: up to 20 V / 3 A (60W)
Plug-and-play without external power supply
Cable type: 5x OM3 fibre (1 adaptive), 8x copper conductors
Bending radius: 30 mm
Operating temperature: 0–50 °C
Storage temperature: -20–70 °C
Metal housing

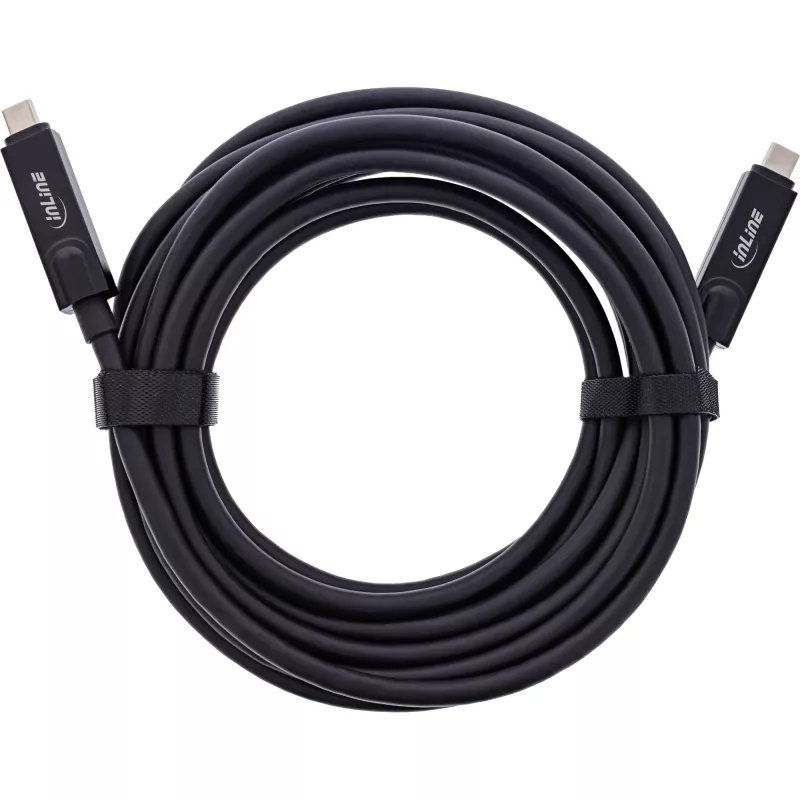

InLine 35797I. Cable length: 7.5 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 2 (3.1 Gen 2), Maximum data transfer rate: 10 Gbit/s, Product colour: Black

How to use

Connect one USB-C connector to the host device (laptop, docking station or compatible source) and the other USB-C connector to the target device such as a monitor, hub or peripheral. Ensure both devices support the required USB-C Alt Mode and power or data profiles for the intended use. For video, set the host’s display output to the connected monitor and adjust resolution and refresh rate as needed in the operating system display settings. No external power is normally required for the cable itself, but ensure the source provides sufficient power delivery when charging a device.

Recommendations

Use the cable in environments free of sharp bends and excessive twisting to preserve optical integrity. For reliable 8K@60 Hz operation, verify that connected devices and graphics hardware support the required video modes. When using power delivery near 60 W, confirm the host’s USB-C port can supply the necessary power and use power adapters rated accordingly.
