Cavo PCI Express DeLOCK 6-Pin - 2 x 8-Pin 0,3 m

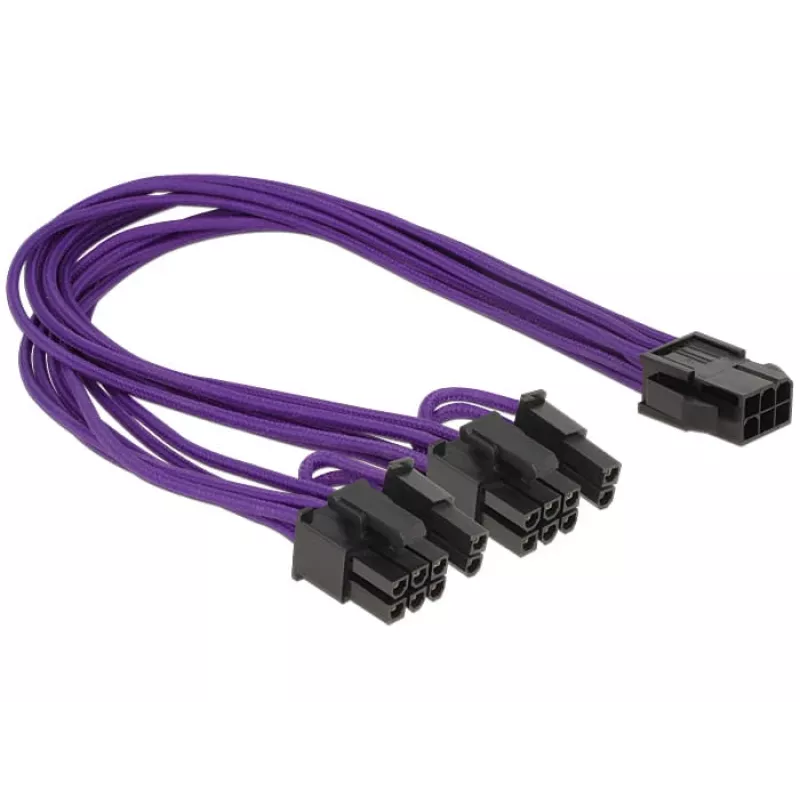

This Delock PCI Express power cable adapts a single 6‑pin PCIe power input into two 6+2‑pin (8‑pin) PCIe outputs, allowing connection to graphics cards that require additional power. The cable is approximately 0.3 m long, uses 18 AWG tinned copper conductors and textile shielding, and is supplied in purple cable with black connectors.

Advantages

The cable provides a compact solution to power one or two PCIe devices from a single 6‑pin source while maintaining stable 12 V power delivery. Removable 2‑pin sections on each 8‑pin connector allow use as a 6‑pin interface when needed. Textile shielding and 18 AWG tinned copper conductors offer reliable conductivity and mechanical protection.

Suitable for

• Powering PCI Express graphics cards that require 6‑pin or 8‑pin (6+2) connectors
• Compact PC builds where a short 0.3 m cable is preferred
• Situations requiring conversion from a single 6‑pin supply to two 6+2‑pin outputs

Key specifications

• Cable length: 0.3 m (approx.)
• Connector 1: PCI‑E 6‑pin (female)
• Connector 2: 2 × PCI‑E 6+2‑pin (8‑pin) male
• Cable gauge: 18 AWG
• Inner conductor: tinned copper
• Voltage: 12 V
• Shielding: textile
• Colour: purple cable, black connectors

How to use

Connect the 6‑pin female end to the 6‑pin PCIe power output from the power supply. Plug the two 6+2‑pin male connectors into the graphics card(s). If the GPU requires only a 6‑pin connection, remove the two detachable pins on the 6+2 connector to form a 6‑pin interface. Ensure connections are secure before powering on the system.

Recommendations

Use this cable only for compatible PCIe power connections and verify that the power supply can provide sufficient current for the connected graphics card(s). Avoid excessive bending near the connectors and keep the cable clear of moving parts and sharp edges.
