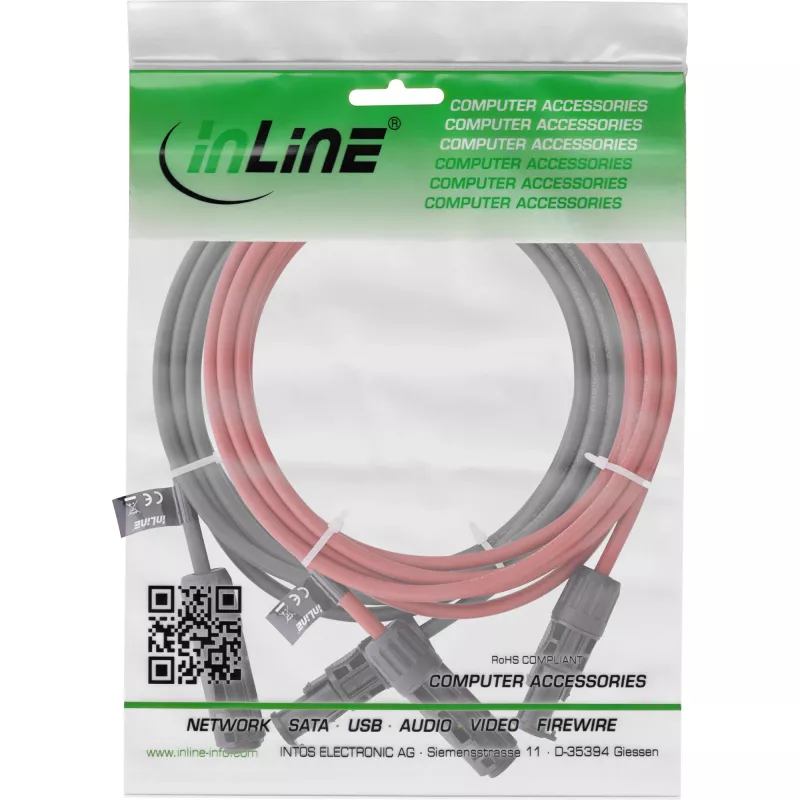

Cavo per media tensione InLine 95410 1500V 10 m rosso nero

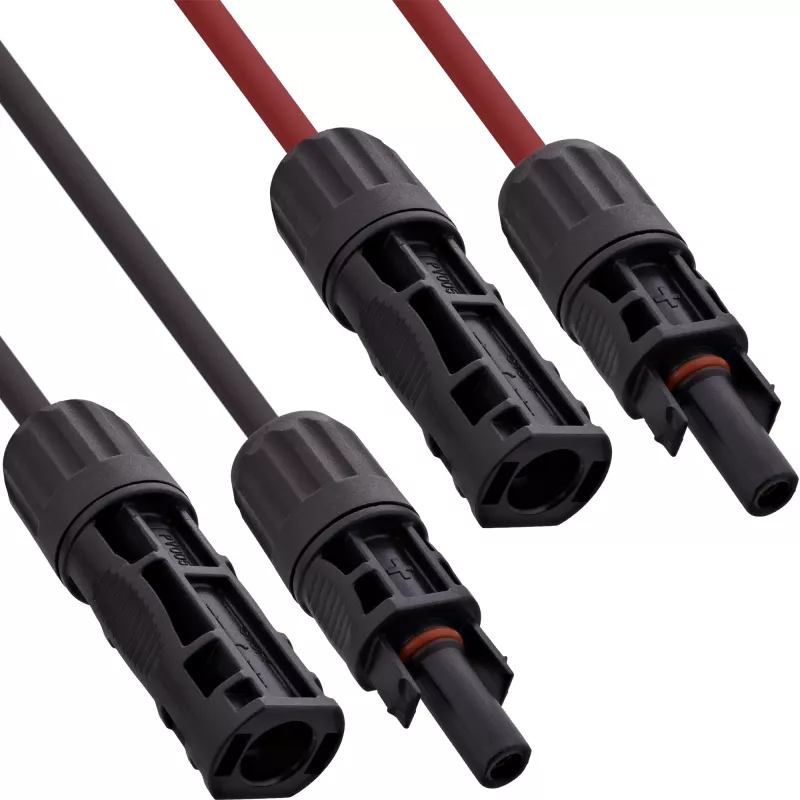

The InLine 95410 solar cable H1Z2Z2-K 4 mm² with integrated solar plugs (set of two: red and black) is designed for wiring photovoltaic systems and for reliable medium-voltage power transmission up to 1500 V. The 10 m cable combines robust insulation and durable conductor construction to ensure safe energy transfer and long service life. Note on wire cross-section: the required conductor size depends on current and cable length; consult a solar technician if unsure.

Advantages

The cable offers durable insulation with 0.7 mm wall thickness, stable conductor performance and a compact overall diameter of 5.5 mm, making it suitable for standard PV installations. Integrated solar plugs simplify connections and reduce installation time while the red and black color coding supports correct polarity identification. Designed for continuous operation at voltages up to 1500 V, the cable supports efficient power transmission for rooftop and ground-mounted photovoltaic systems.

Suitable for

• Wiring photovoltaic (PV) modules and arrays
• DC connections in solar power systems up to 1500 V
• Connections requiring 4 mm² conductor cross-section over short to moderate distances
• Installations where color-coded red and black cables simplify polarity management

Key specifications

• Model: InLine 95410
• Cable type: H1Z2Z2-K solar cable with integrated solar plugs (set of two)
• Conductor cross-section: 4 mm²
• Maximum operating voltage: 1500 V
• Length: 10 m
• Insulation thickness: 0.7 mm
• Diameter: 5.5 mm; width: 22 mm
• Color: red and black

How to use

Route the 10 m cable between PV modules, combiner boxes or inverters following applicable electrical codes and the system design. Ensure connectors are fully engaged and polarity is correct using the red (positive) and black (negative) leads. Fix the cable with suitable clips or supports, avoiding sharp bends and mechanical strain. Observe manufacturer instructions for connector mating and torque where applicable.

Recommendations

Choose the appropriate conductor cross-section based on calculated current and cable run length; for unsure cases contact a qualified solar technician. Inspect insulation and connectors regularly and protect the cable from prolonged mechanical abrasion and chemical exposure to maintain long-term performance.
