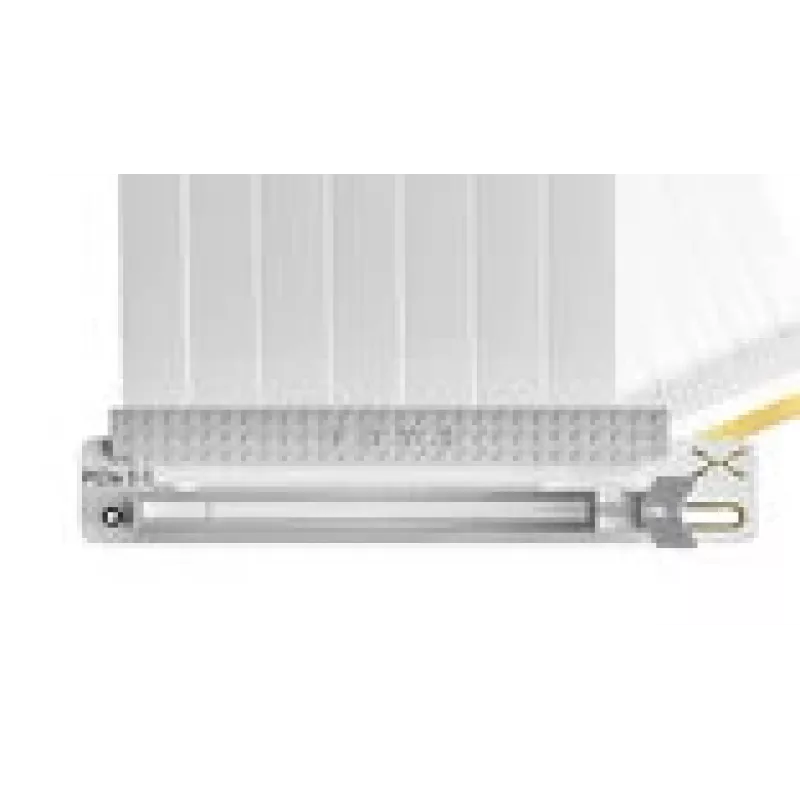

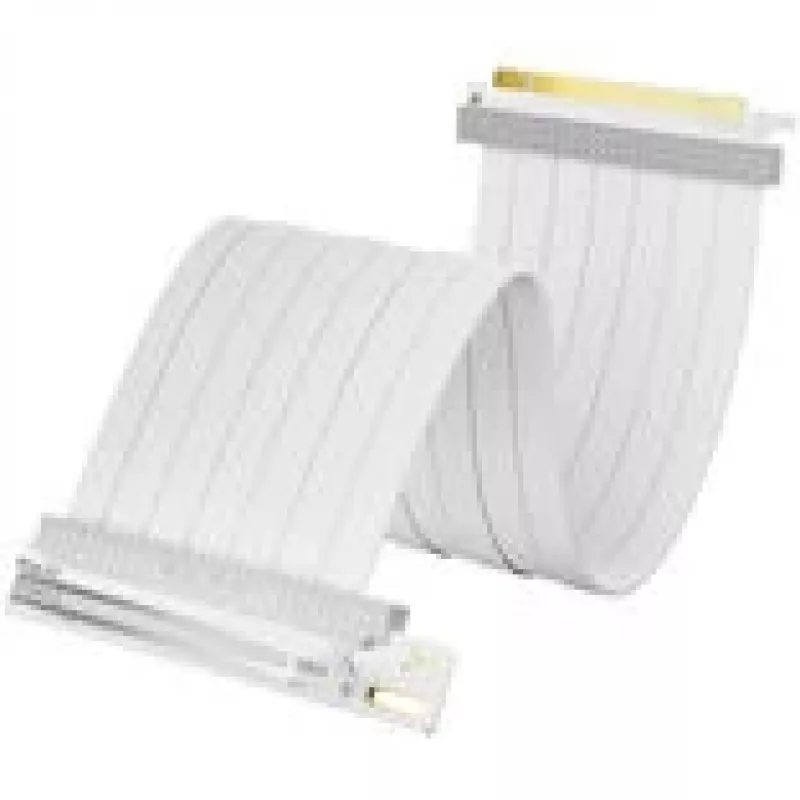

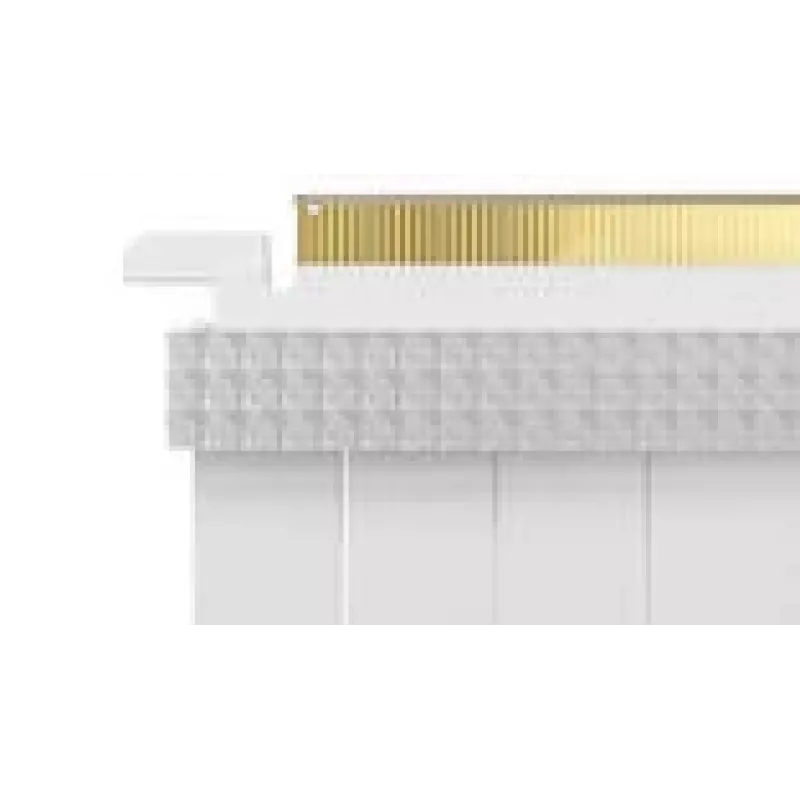

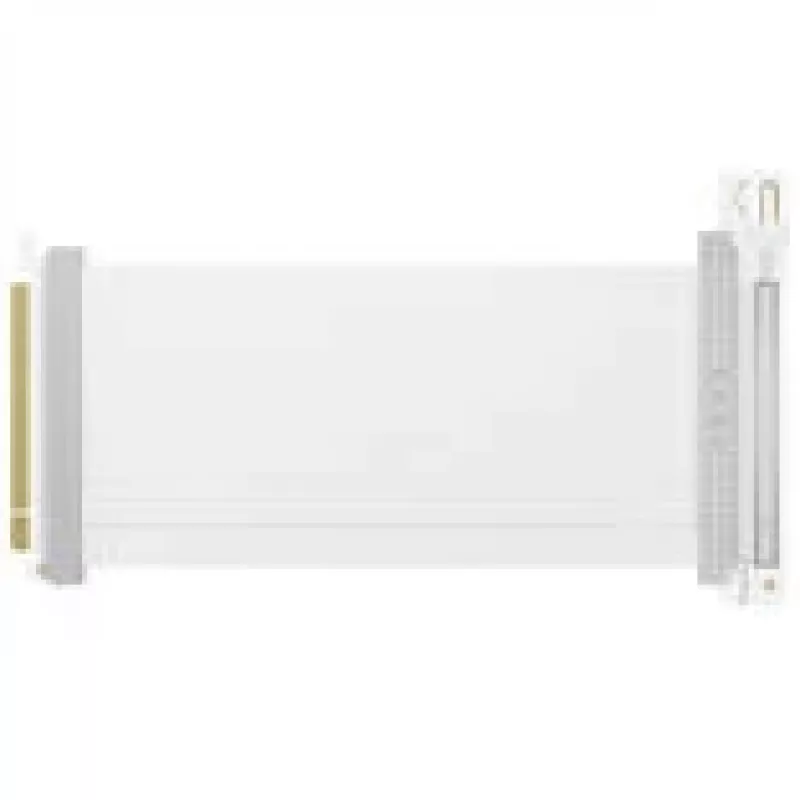

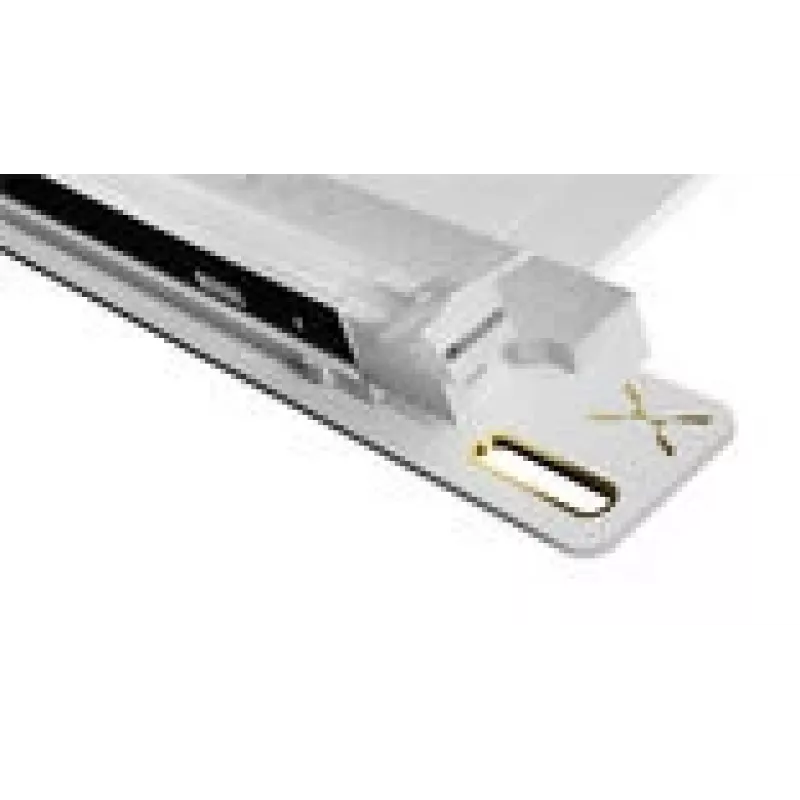

Cavo riser PCIe 5.0 x16 TRYX 200mm bianco per GPU/scheda di espansione

TRYX PCIe 5.0 x16 riser cable, 200 mm in white, is a flexible extension cable designed to relocate or reorient a PCIe x16 slot for graphics cards and other expansion cards while preserving the PCIe 5.0 signal standard. The cable enables vertical GPU mounting, alternative component layouts in compact or custom chassis, and tidier internal routing without modifying motherboard or card connectors.

Advantages

The flexible design maintains PCIe 5.0 signal integrity across a 200 mm span, supporting high-bandwidth GPUs and expansion cards. The white finish provides a neutral visual match for light-coloured builds and helps create cleaner cable management. The cable is intended to minimize mechanical stress on the PCIe slot and expansion card by offering a stable, low-profile connection option for non-standard mounting configurations.

Suitable for

• Vertical GPU mounting to display or improve airflow
• Compact or small form factor (SFF) builds where slot spacing differs
• Custom PC builds requiring alternative card positioning or aesthetics
• Test benches and development rigs where cards are frequently swapped

Key specifications

• Interface: PCIe x16 connector on both ends, compatible with PCIe 5.0 signaling
• Cable length: 200 mm flexible ribbon
• Colour: white finish for visible internal aesthetic consistency
• Form factor: low-profile, flexible design suitable for tight internal spaces
• Use: designed for GPUs and full-length expansion cards requiring x16 bandwidth

How to use

Install the riser cable by firmly seating one end into the motherboard PCIe x16 slot and the other end into the expansion card’s PCIe x16 connector, ensuring alignment and full insertion on both sides. Secure the expansion card in its desired position in the chassis using the case’s bracket or mounting points. Avoid sharp bends and maintain gentle curves along the cable path. Confirm that the card and cable do not contact moving parts or block airflow.

Recommendations

For reliable operation at PCIe 5.0 speeds, keep cable bends gentle, allow adequate ventilation around the GPU, and use the cable in installations that provide stable mechanical support for the card. Verify system BIOS and GPU compatibility with external riser configurations and test the assembly before prolonged use.
