Cavo SAS Supermicro CBL-SAST-0532 0,5 m – Mini-SAS HD su Mini-SAS

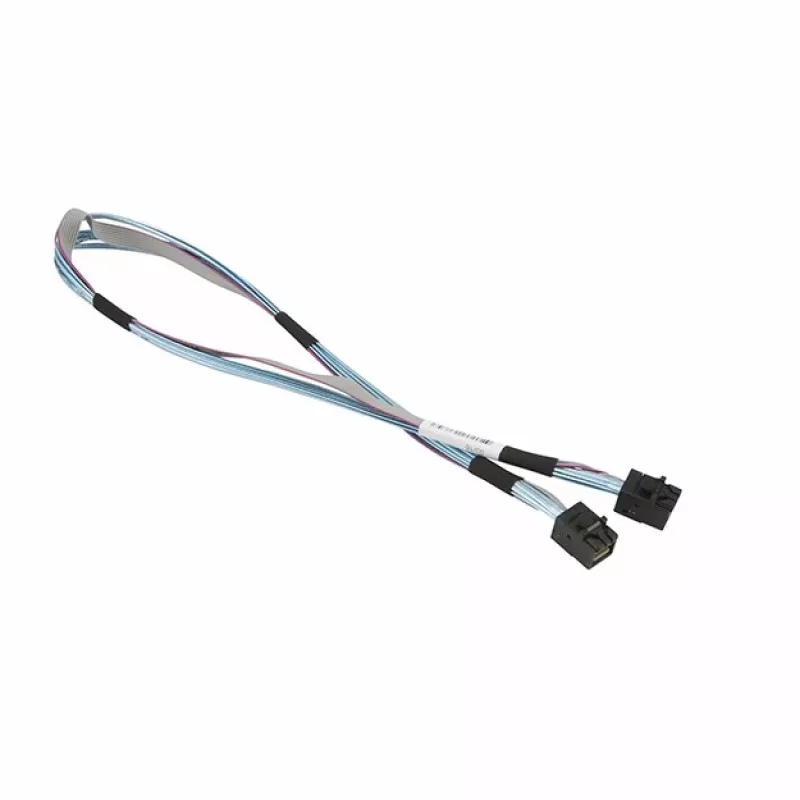

Supermicro CBL-SAST-0532 is a 0.5 m Serial Attached SCSI (SAS) cable with a Mini-SAS HD connector on one end and a Mini-SAS connector on the other, intended for internal server and storage interconnects. The cable provides a short, high-density connection between SAS controllers, drive backplanes and enclosures, reducing cable clutter inside rack servers and allowing compact routing in dense storage configurations.

Advantages

The cable’s short 0.5 m length minimizes signal loss and latency while keeping internal cable runs tidy. A combination of Mini-SAS HD and Mini-SAS terminations supports connectivity between newer high-density ports and legacy Mini-SAS interfaces without adapters. Designed for internal use, the connector housings and conductors are optimized for reliable electrical contact and secure seating in server and storage chassis. The construction offers stable performance in typical datacenter operating conditions.

Suitable for

• Connecting SAS host bus adapters to drive backplanes in rackmount servers
• Linking internal drive enclosures to SAS controllers in storage arrays
• Short, internal connections in high-density storage systems and blade servers
• Replacing or consolidating short SAS cable runs inside chassis

Key specifications

• Cable type: Serial Attached SCSI (SAS)
• Length: 0.5 m
• Connectors: Mini-SAS HD (one end) to Mini-SAS (other end)
• Intended use: internal server and storage interconnects
• Form factor: high-density internal cable for rack and enclosure installations

How to use

Power down relevant equipment according to manufacturer procedures before installing the cable. Align the Mini-SAS HD connector with the mating port and insert it until it seats firmly; repeat with the Mini-SAS connector on the corresponding controller or backplane. Route the cable to avoid sharp bends and to maintain airflow within the chassis. After installation, power on the system and verify that connected devices are recognized by the host and that SAS link indicators report an active connection.

Recommendations

Use this cable for short, internal connections only; avoid external exposure and do not use for hot-plugging when the ports are not rated for it. Ensure connectors are fully seated and secured, and keep bend radius within the chassis manufacturer’s guidelines to preserve signal integrity.
