Cavo ShiverPeaks 02014-100SP cavo a diodi 2 x 0,14 mm², 100,0 m

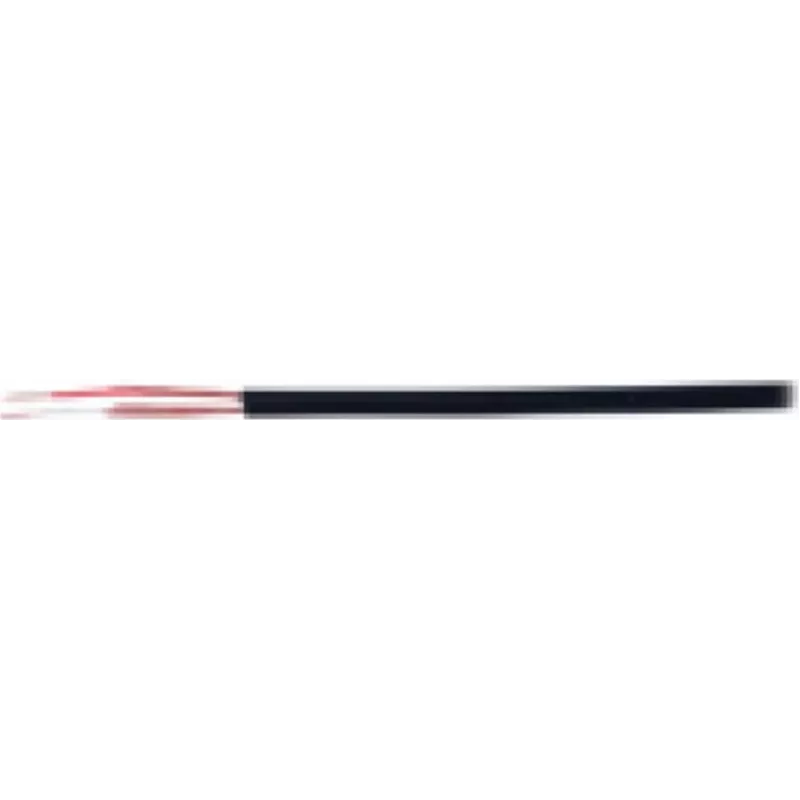

ShiverPeaks 02014-100SP diodenkabel is a two-conductor cable with a conductor cross-section of 2 x 0.14 mm² and a length of 100.0 m. It is designed for low-voltage LED and diode applications, offering a slim and flexible solution for connecting lighting strips, signal lines and small electronic modules. The cable’s compact conductors and insulation make it suitable for indoor routing, prototyping and repair work where space and flexibility are important.

Advantages

The cable combines a thin conductor profile with sufficient current-carrying capacity for many low-voltage LED and diode circuits. Its flexibility simplifies installation in confined spaces and around bends, while the consistent conductor cross-section supports predictable voltage drop and power delivery over short to moderate runs. Insulation on each core provides reliable separation of signals and reduces the risk of short circuits in close-packed wiring.

Suitable for

• Low-voltage LED strip and module connections
• Diode and indicator light wiring
• Indoor signal and control wiring for small electronic devices
• Prototyping, hobby electronics and repairs

Key specifications

• Number of cores: 2
• Conductor cross-section: 0.14 mm² per core
• Length: 100.0 m
• Application voltage range: low-voltage DC systems (typical for LED lighting and diodes)
• Insulation: individually insulated cores suitable for close routing
• Flexibility: designed for indoor routing and repeated bending during installation

How to use

Cut the required length and strip the insulation from each conductor to expose the cores. Make secure electrical connections using appropriate connectors, soldering or terminal blocks rated for low-voltage DC. Route the cable away from heat sources and sharp edges, and secure it with clips or cable ties where needed to prevent strain on connections. For LED strips, observe polarity markings and keep runs within recommended lengths to avoid excessive voltage drop.

Recommendations

Use this cable for indoor, low-voltage installations and avoid exposure to outdoor weather or direct sunlight. For longer runs or higher current requirements, choose a cable with a larger conductor cross-section to reduce voltage drop and heating. When in doubt, consult device documentation for recommended cable types and maximum cable lengths.
