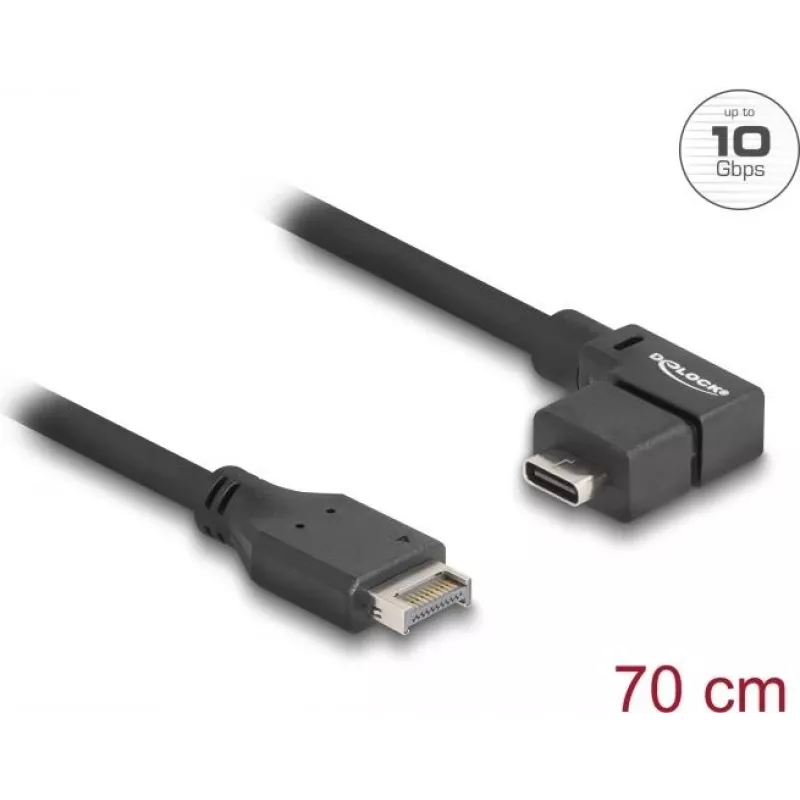

Cavo USB DeLOCK 10 Gbit/s Type-E Key A 20 pin connettore maschio su connettore femmina USB Type-C angolato 70 cm

The DeLOCK USB 10 Gbps Cable connects an internal USB Type-E Key A 20‑pin socket on a motherboard or PCI Express card to an external USB Type‑C device. With a 70 cm length and support for USB 3.2 Gen 2 (also known as 3.1 Gen 2), the cable enables high‑speed data transfer and extension of an internal USB connection to a Type‑C port.

Advantages

This cable provides a direct internal-to-external USB Type‑C connection using the Type‑E Key A 20‑pin interface, supports transfer rates up to 10 Gbps (USB 3.2 Gen 2), and features an angled USB Type‑C female connector to save space and allow flexible cable routing. Its 0.7 m length offers a balance between reach and cable management inside a computer case.

Suitable for

• Extending an internal motherboard or PCIe card USB Type‑E (Key A) 20‑pin header to an external USB Type‑C port
• Connecting external Type‑C devices (storage, hubs, or peripherals) to an internal USB header
• Installing a front-panel or bracket Type‑C port using an internal header

Key specifications

• Brand: DELOCK
• Model / MPN: 85759
• EAN: 4043619857593
• Connector 1: USB Type‑E (20‑pin, Key A, male)
• Connector 2: USB Type‑C (female, angled)
• USB version: USB 3.2 Gen 2 (3.1 Gen 2), up to 10 Gbps
• Cable length: 0.7 m
• Category: USB data cable

How to use

Insert the USB Type‑E Key A 20‑pin male connector into the corresponding internal header on the motherboard or PCIe card, ensuring correct orientation. Mount the angled USB Type‑C female connector to the desired external location (for example a case cutout or bracket) and connect your USB Type‑C device. Ensure the internal header provides the required USB 3.2 Gen 2 signals for full 10 Gbps performance.

Recommendations

Use this cable inside a computer case and avoid routing it through moving parts or tight bends. For maximum data rates, connect to a header or controller that supports USB 3.2 Gen 2 and use compliant Type‑C devices and cables. Do not force the connectors; align pins correctly before insertion.
