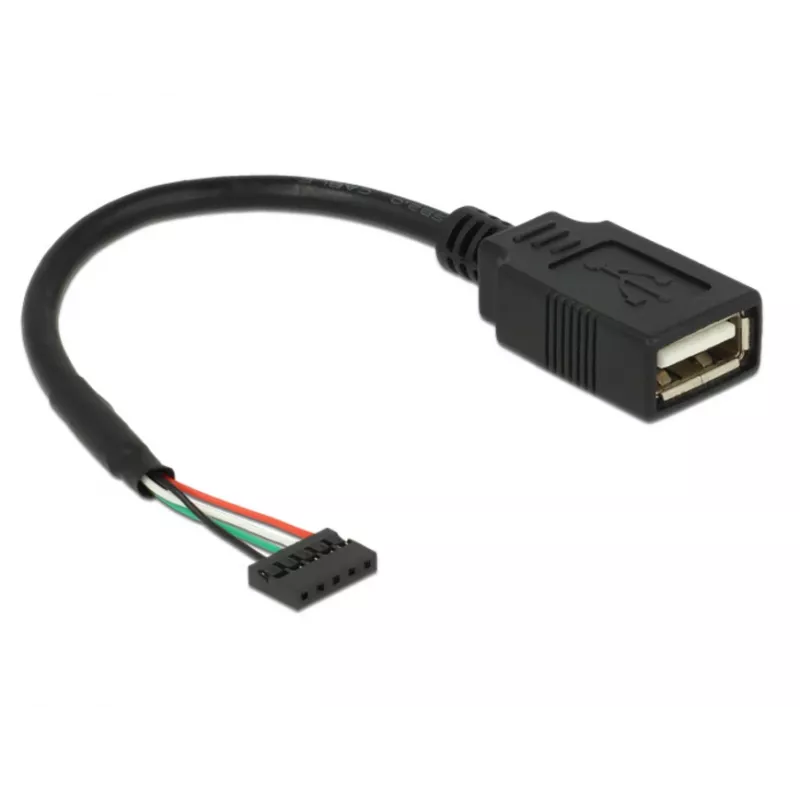

Cavo USB DeLOCK 84831 USB 2.0 0,15 m nero

This USB cable by Delock connects to a free USB 2.0 5-pin motherboard header and provides one USB Type-A female port. The 0.15 m black cable is intended for custom-built computer systems and allows connection of external USB devices where an accessible Type-A port is needed.

Advantages

The cable uses USB 2.0 signaling with a data transfer rate up to 480 Mb/s and gold-plated contacts for improved conductivity. Its compact 0.15 m length and 28 AWG conductor make it suitable for internal routing in desktop cases. The 2.00 mm pitch header connector is compatible with standard USB 2.0 motherboard pin headers.

Suitable for

• Adding an internal USB Type-A female port to a custom PC
• Connecting front-panel USB modules to a motherboard header
• Short internal cable runs inside desktop computer cases

Key specifications

• Connector: 1 x 5-pin USB 2.0 female header (2.00 mm pitch) to 1 x USB 2.0 Type-A female
• USB version: USB 2.0
• Maximum data rate: up to 480 Mb/s
• Cable length (incl. connector): approx. 15 cm (0.15 m)
• Cable gauge: 28 AWG
• Cable diameter: approx. 4 mm
• Contact finish: gold-plated
• Colour: black

How to use

Locate a free USB 2.0 5-pin header (2.00 mm pitch) on the motherboard and align the cable's header connector to the header pins, taking care to match the keyed orientation. Insert the header connector firmly onto the motherboard pins and route the Type-A female end to the desired internal or external position. Connect a standard USB Type-A male cable or device to the Type-A female port.

Recommendations

Use this cable for short internal connections only; it is not designed as a long external extension. Ensure the motherboard header matches the 2.00 mm USB 2.0 pin header specification before installation.
