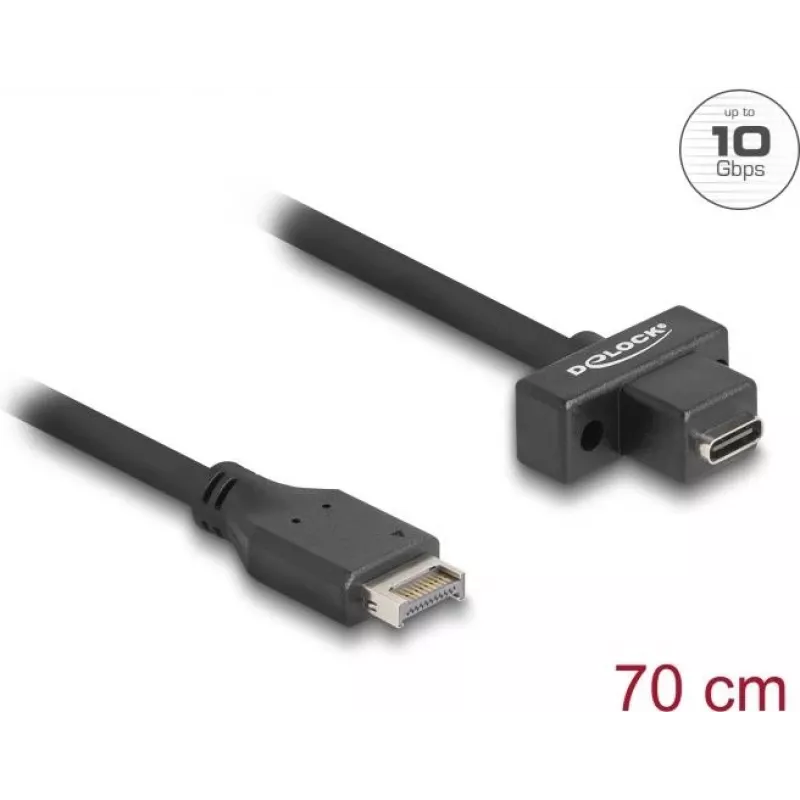

Cavo USB DeLOCK Type-E Key A 20 poli connettore maschio su connettore femmina USB Type-C 70 cm

This DeLOCK cable connects to an internal USB 10 Gbps Type-E Key A 20‑pin socket on a motherboard or PCI Express card and extends the USB connection to a front or chassis panel via a USB Type‑C female panel‑mount connector. The USB Type‑C connector can be secured with two screws to a slot bracket or a chassis with a compatible recess, allowing installation of a USB‑C port in a convenient, easily accessible position. The cable length is 70 cm and it supports USB 3.2 Gen 2 (up to 10 Gbps) for high‑speed data transfer.

Advantages

The cable provides a reliable internal-to-panel USB Type‑C extension while maintaining USB 3.2 Gen 2 data rates up to 10 Gbps. The panel‑mount USB Type‑C female connector can be fixed with two screws for a secure installation, and the 70 cm length offers flexibility for routing inside most PC cases. Compatible with motherboards or PCIe cards that offer an internal USB Type‑E Key A 20‑pin socket.

Suitable for

• Adding a USB Type‑C port to a PC front panel or slot bracket
• Extending an internal USB 3.2 Gen 2 connection to an accessible external connector
• Connecting USB Type‑C devices when internal header access is required
• Use with motherboards or PCIe cards featuring a USB Type‑E Key A 20‑pin socket

Key specifications

• Brand: DELOCK
• Model / MPN: 85776
• EAN: 4043619857760
• Connector 1: USB Type‑E (20‑pin, Key A, male)
• Connector 2: USB Type‑C (female, panel mount, screw‑fixable)
• USB version: USB 3.2 Gen 2 (3.1 Gen 2), up to 10 Gbps
• Cable length: 0.7 m (70 cm)
• Category: USB data cable

How to use

Connect the male USB Type‑E 20‑pin plug to the matching internal header on your motherboard or PCIe card, observing orientation and keying. Route the cable to the desired slot bracket or chassis opening and position the USB Type‑C female panel connector so its mounting holes align with the bracket or chassis recess. Secure the connector with two screws to fix it in place. Once installed, connect USB Type‑C devices to the externally accessible port. Ensure the system is powered off when making internal connections.

Recommendations

Use this cable with motherboards or expansion cards that explicitly provide a USB Type‑E Key A 20‑pin internal header. For safe installation, power down the PC and discharge static before connecting the internal header. Avoid excessive bending near connectors to preserve signal integrity for USB 3.2 Gen 2 speeds.
