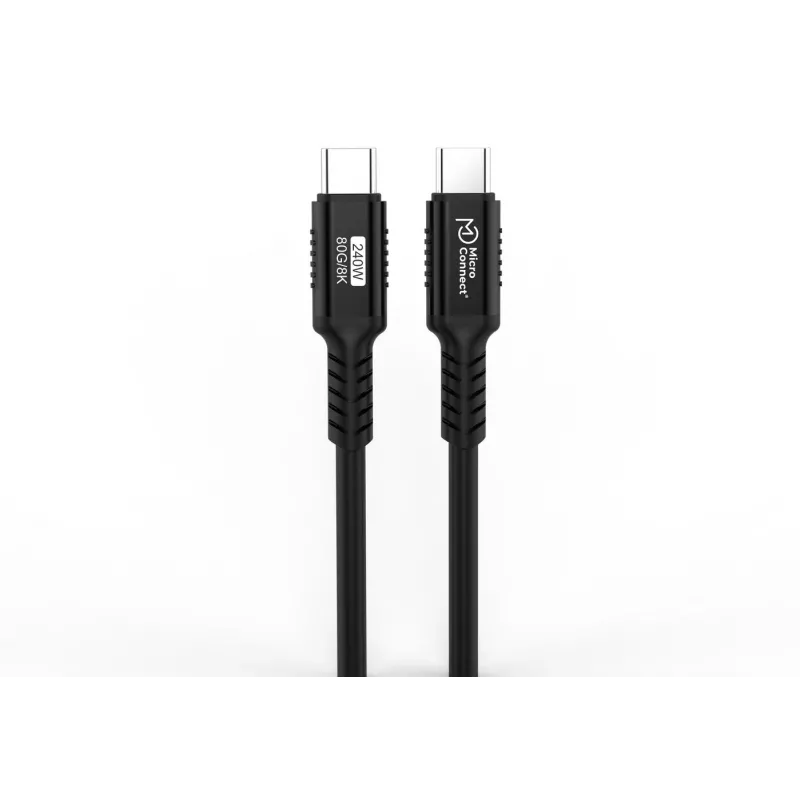

Cavo USB MicroConnect MC-USB4-CC80LQ-0.25 — cavo dati USB, lunghezza 0,25 m

Microconnect MC-USB4-CC80LQ-0.25 USB cable delivers high-power charging and very high data throughput in a compact cable designed for demanding devices. The cable supports up to 240W (48V/5A) power delivery and USB4 Gen 3x2 data transfer rates up to 80 Gbps, enabling support for high-resolution video and fast large-file transfers. Its outer jacket is made from liquid silicone for a smooth feel, improved flexibility and reduced tangling.

Advantages

The cable combines 240W power delivery and USB4 Gen 3x2 bandwidth in a short-form factor, making it suitable for power-hungry laptops and high-bandwidth peripherals. The liquid silicone jacket provides a soft, non-abrasive surface, enhanced flexibility and better resistance to knots compared with standard PVC-sheathed cables. It is compatible with Thunderbolt 4 and supports DP2.1 alt mode and DisplayLink for video output.

Suitable for

• Charging high-performance laptops and devices requiring up to 240W
• Connecting docking stations, monitors and external GPUs using DP2.1 alt mode or DisplayLink
• High-speed data transfers and large file synchronization at up to 80 Gbps
• Mobile workstations and setups that need Thunderbolt 4 compatibility

Key specifications

• USB4 Gen 3x2 data rate up to 80 Gbps
• Power Delivery up to 240W (48V/5A)
• Supports 8K at 60 Hz video output capability
• Compatible with Thunderbolt 4 hosts and peripherals
• Supports DisplayPort 2.1 alt mode and DisplayLink video solutions
• Liquid silicone outer jacket for improved flexibility and reduced tangling
• Cable length: approximately 0.25 m

How to use

Connect the USB-C ends to a compatible host and device or docking station. Ensure the host and the peripheral support the required power and alternate mode functions for charging and video output. When using for high-power charging, confirm that the connected power adapter provides up to 48V/5A and that the device accepts that power level. For video or data operations, use ports that advertise USB4 or Thunderbolt 4 capability to achieve full bandwidth.

Recommendations

For sustained high-power charging and maximum data throughput, use certified USB4 or Thunderbolt 4 ports and a power adapter rated for 240W. Avoid sharp bends near connectors and keep the liquid silicone jacket clean to maintain flexibility and reduce wear.
