Cavo USB Vivolink PROUSBCMMS5 USB 3.2 Gen 2 (3.1 Gen 2) 5 m USB C nero

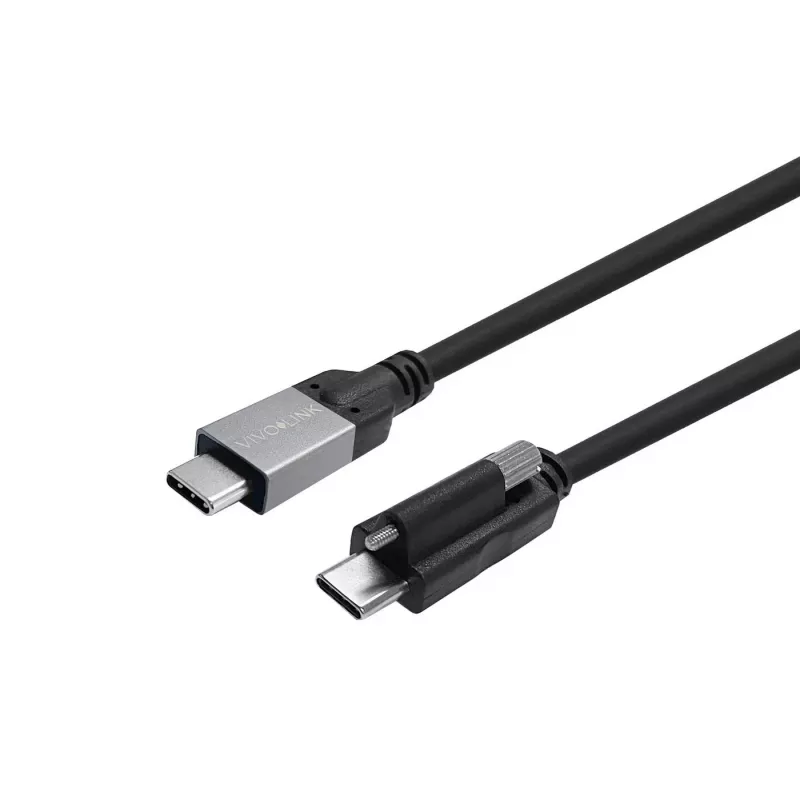

The Vivolink PROUSBCMMS5 is a 5 m USB-C cable that supports USB 3.2 Gen 2 data rates up to 20 Gbps and delivers up to 100 W of power. One end features a screw-lock USB-C connector for a secure mechanical connection while the other end has a standard reversible USB-C connector. The cable transmits video, audio, data and power, and supports DisplayPort alternate mode, DP1.4, MST and DisplayLink formats.

Advantages

The screw-lock connector provides a locked, reliable connection for devices that require mechanical retention. USB 3.2 Gen 2 bandwidth enables high-speed data transfer, while support for up to 100 W power delivery allows charging of phones, external drives and most laptops. Reversible USB‑C connectors ensure easy plugging and the 5 m length offers flexible placement of connected devices.

Suitable for

• Connecting USB-C equipped laptops to docking stations or monitors
• Transmitting video and audio via DisplayPort Alt Mode or DisplayLink
• High-speed file transfer between hosts and external drives
• Powering and charging mobile phones, external drives and many laptops (up to 100 W)

Key specifications

• Connector 1: USB-C with screw lock
• Connector 2: USB-C (reversible) without screw lock
• USB version: USB 3.2 Gen 2 (up to 20 Gbps)
• Cable length: 5 m
• Maximum power delivery: up to 100 W
• Supported formats: DisplayPort Alt Mode, DP1.4, MST, DisplayLink
• Colour: Black

How to use

Insert the screw-lock USB-C end into the device requiring a secure connection and rotate or fasten according to the device’s connector design to lock it in place. Plug the standard USB-C end into the host device or peripheral. Ensure both connected devices support the desired function (data, video or power). For video output, select the appropriate input on the monitor and enable the host’s alternate mode or DisplayLink driver if required.

Recommendations

For best performance, use with devices that support USB 3.2 Gen 2 or compatible DisplayPort Alt Mode/DisplayLink implementations. Avoid bending the cable sharply near the connectors and check device specifications to confirm power delivery and video compatibility.
